2-34

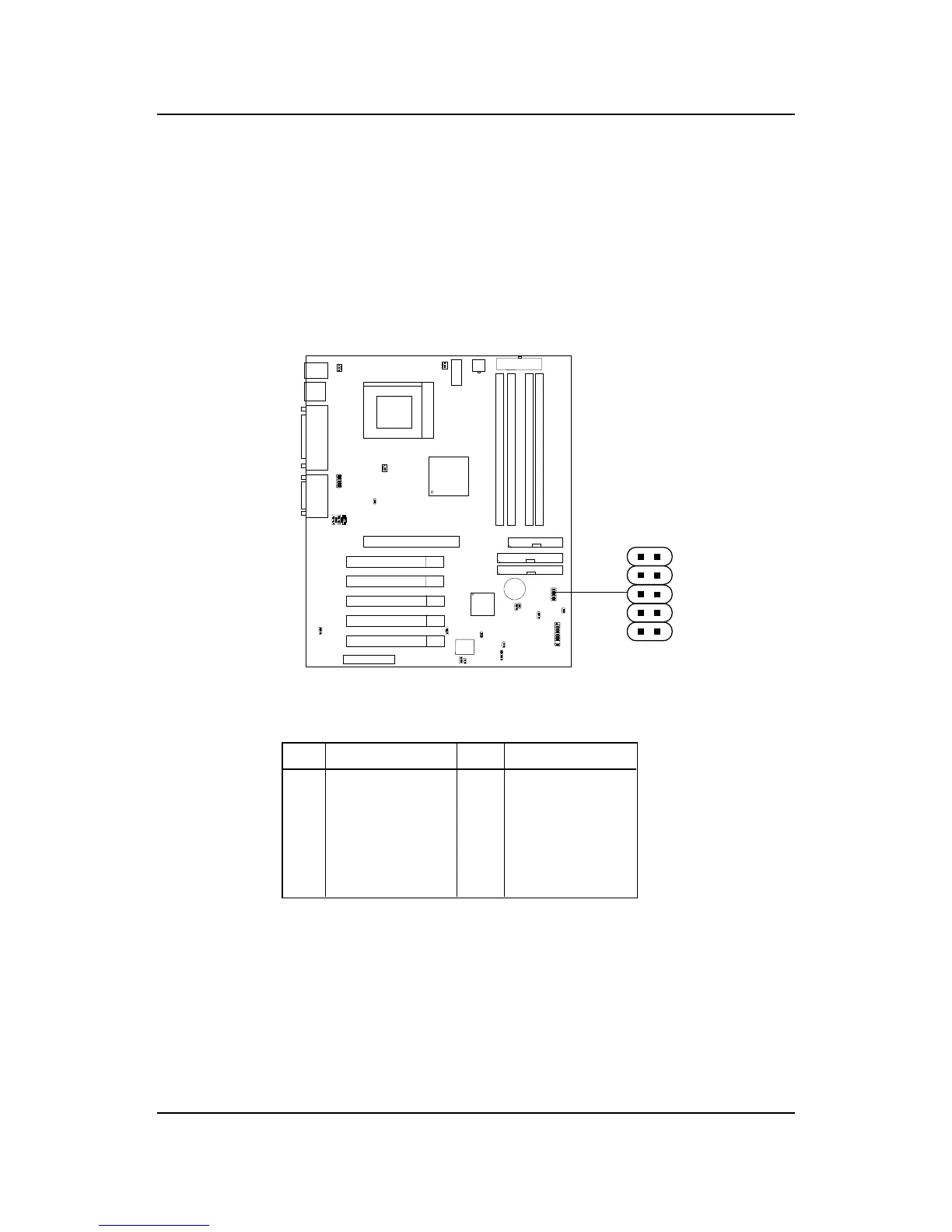

USB Front Connector: JUSB1USB Front Connector: JUSB1
USB Front Connector: JUSB1USB Front Connector: JUSB1
USB Front Connector: JUSB1
The mainboard provides a front Universal Serial Bus connector. This is an
optional USB connector for Front Panel.
JUSB1
12
910
Pin Description Pin Description
1 VCC 6 USBD2+
2 GND 7 GND
3 USBD3- 8 USBD2-
4 GND 9 GND
5 USBD3+ 10 VCC
