MSI MS-6533 - Irda Infrared Module Header: JIR1

Chapter 2
2-20

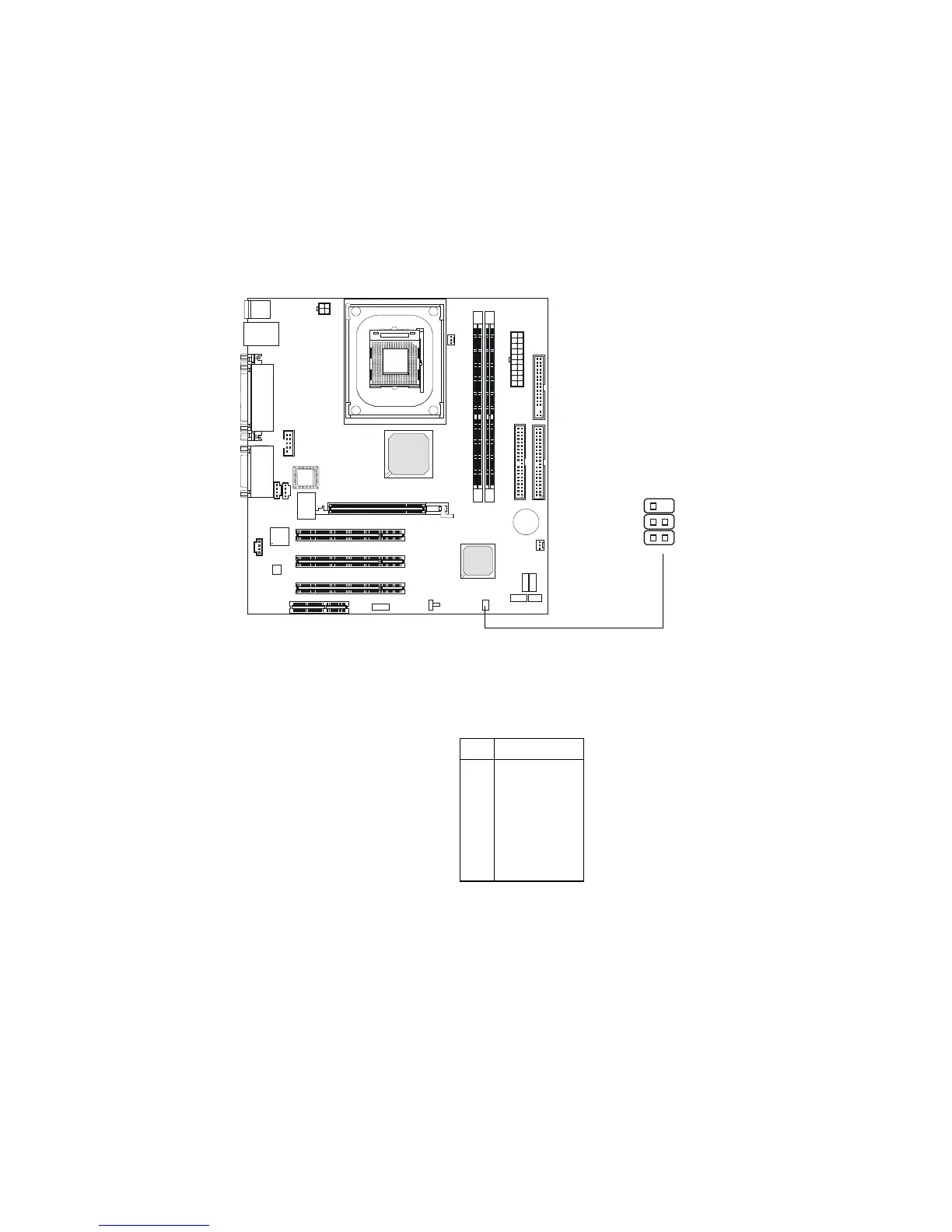

IrDA Infrared Module Header: JIR1
This connector allows you to connect to IrDA Infrared modules and is
compliant with Intel
®
Front Panel I/O Connectivity Design Guide. You must
configure the setting through the BIOS setup to use the IR function.
1 2
JIR1
5 6
Pin Signal
1NC
2NC
3 VCC
4 GND
5 IRTX
6 IRRX
JIR1 Pin Definition
