MS-6734 M-ATX Mainboard

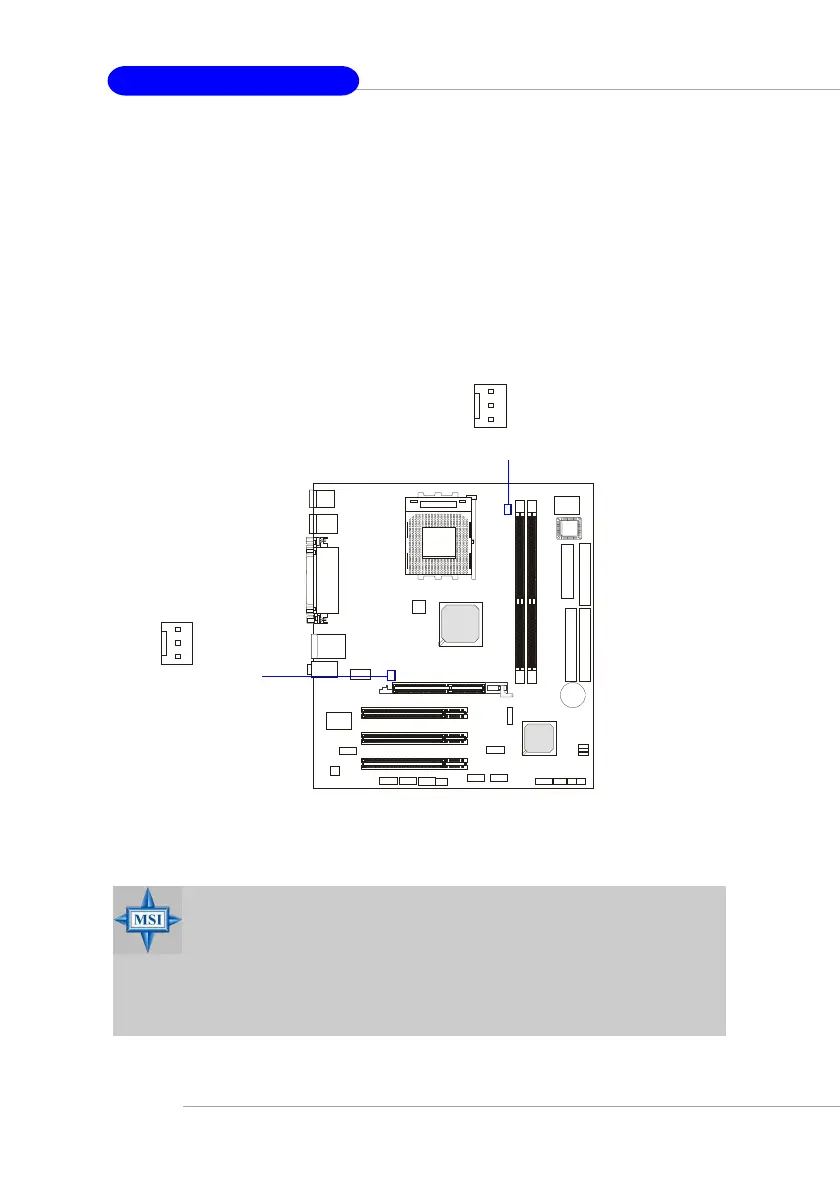

Fan Power Connectors: CPUFA1/SYSFA1
The CPUFA1 (processor fan) and SYSFA1 (system fan) support system
cooling fan with +12V. It supports three-pin head connector. When connect-
ing the wire to the connectors, always take note that the red wire is the posi-
tive and should be connected to the +12V, the black wire is Ground and should
be connected to GND. If the mainboard has a System Hardware Monitor chipset
on-board, you must use a specially designed fan with speed sensor to take
advantage of the CPU fan control.
MSI Reminds You...
1. Always consult the vendors for proper CPU cooling fan.
2. CPUFA1 supports the fan control. You can install the PC
Alert utility that will automatically control the CPU fan speed
according to the actual CPU temperature.
CPUFA1
SENSOR
+12V
GND
SYSFA1
SENSOR
+12V
GND
