The mainboard provides connectors to connect to FDD, IDE HDD, case,
audio, LAN, USB Ports, and CPU/System fans.
Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
Fan Power Connectors: CFAN1/SFAN1
The CFAN1 (processor fan) & SFAN1 (system fan) support system cool-
ing fan with +12V. It supports three-pin head connector. When connecting
the wire to the connectors, always take note that the red wire is the positive
and should be connected to the +12V, the black wire is Ground and should be
connected to GND. If the mainboard has a System Hardware Monitor chipset
on-board, you must use a specially designed fan with speed sensor to take
advantage of the CPU fan control.
Connectors

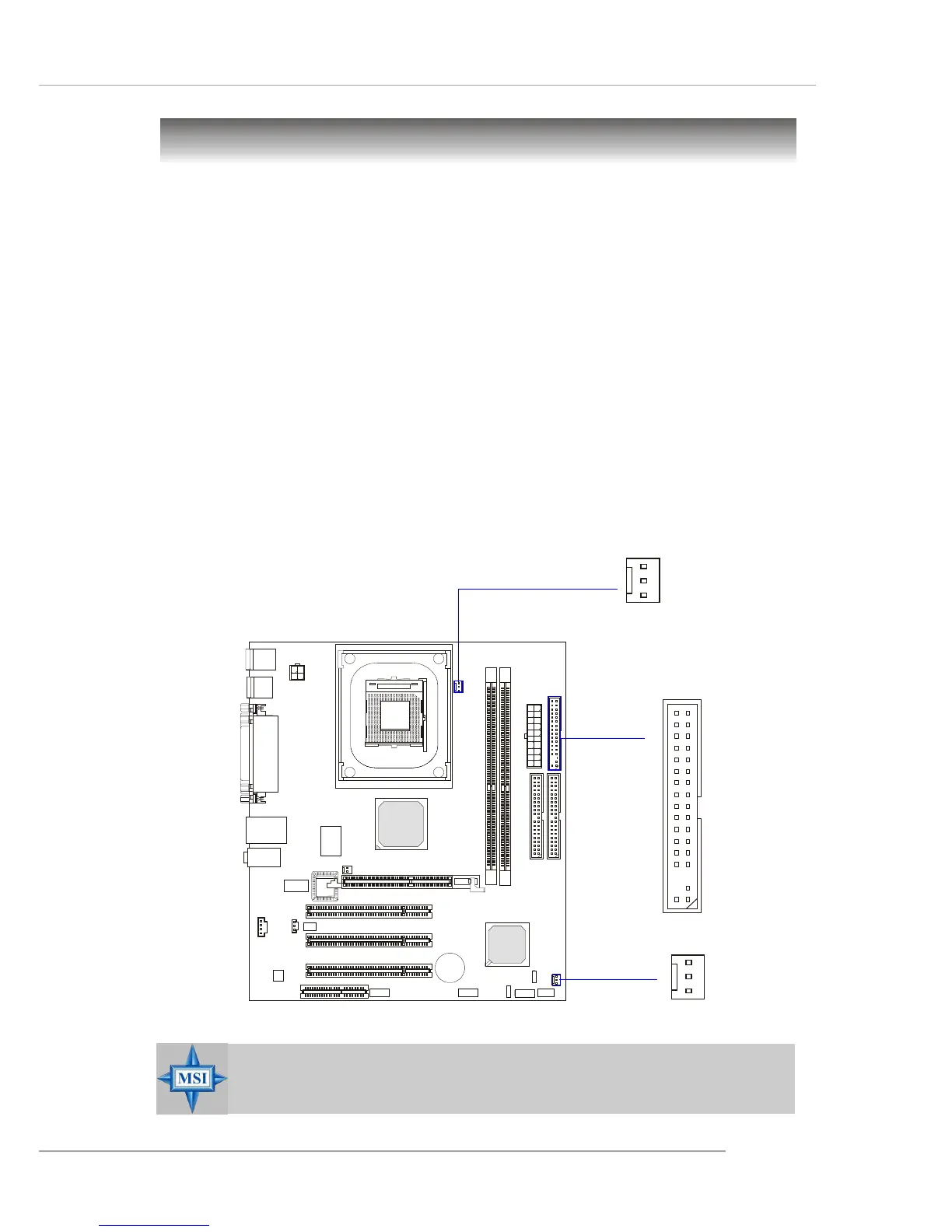

FDD1
SFAN1
SENSOR
+12V
GND
MSI Reminds You...
Always consult the vendors for proper CPU cooling fan.
CFAN1
Sensor
+12V
GND
