2-17
Hardware Setup

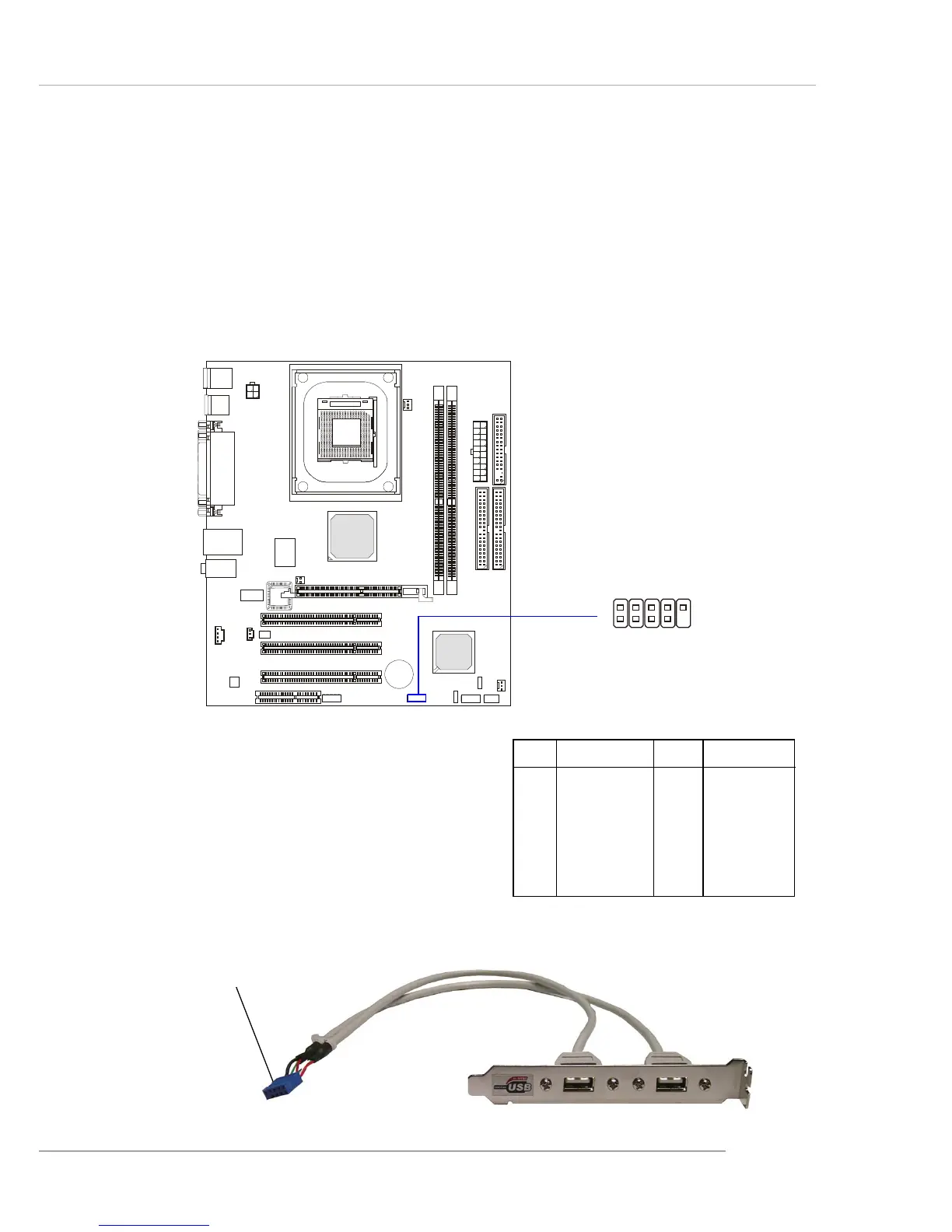

Front USB Connector: JUSB1
The mainboard provides one USB 2.0 pin header JUSB1 (optional USB
2.0 bracket available) that is compliant with Intel
®
I/O Connectivity Design
Guide. USB 2.0 technology increases data transfer rate up to a maximum
throughput of 480Mbps, which is 40 times faster than USB 1.1, and is ideal
for connecting high-speed USB interface peripherals such as USB HDD, dig-
ital cameras, MP3 players, printers, modems and the like.
Connected to JUSB1
USB 2.0 Bracket
(Optional)
PIN SIGNAL PIN SIGNAL
1 USBPWR 2 USBPWR
3 USBP4- 4 USBP5-
5 USBP4+ 6 USBP5+
7 GND 8 GND
9 NC 10 USBOC
Pin Definition
1
2
9
10
JUSB1
To Next Page
