2-5
Hardware Setup

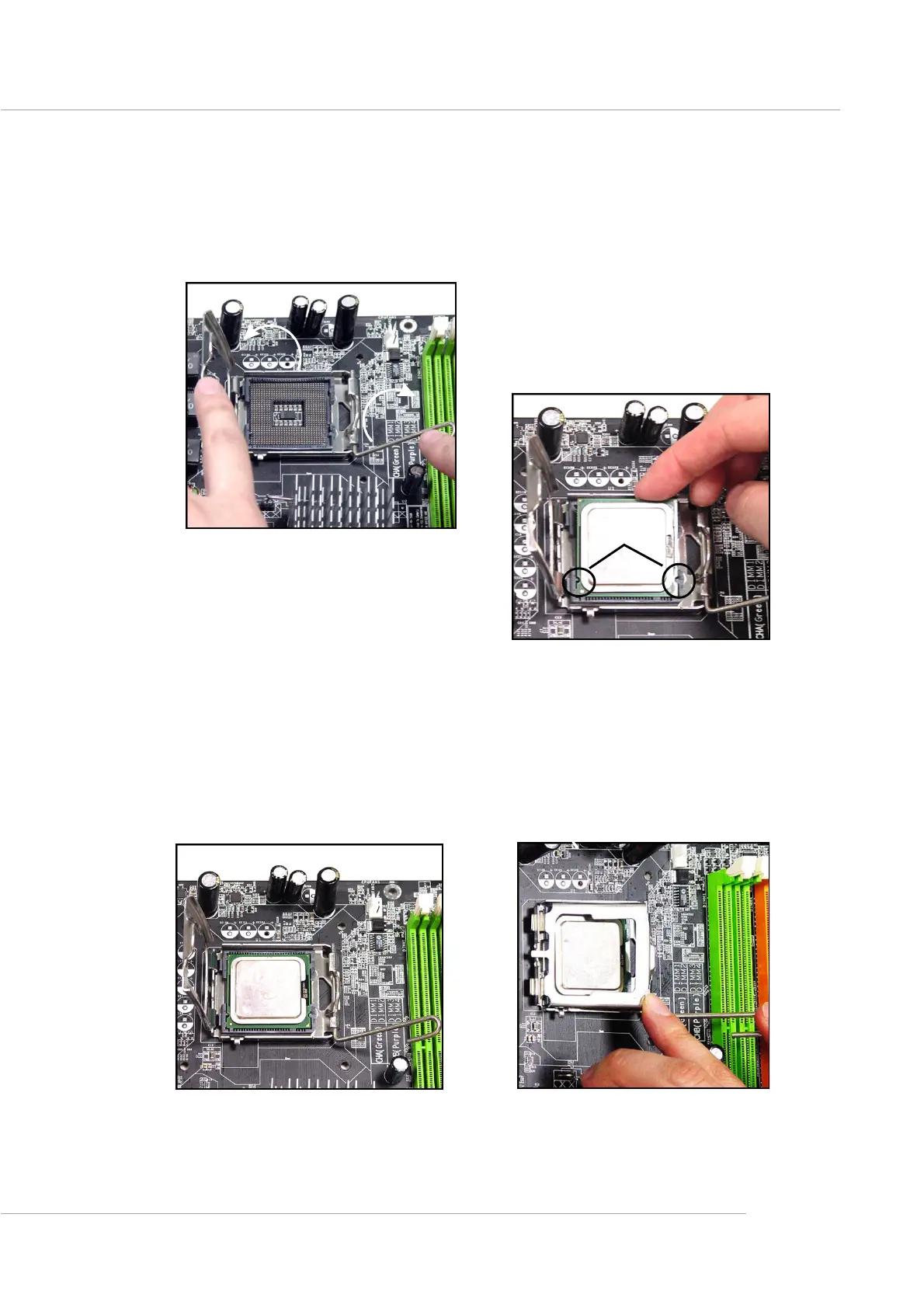

6. After confirming the CPU di-
rection for correction mating,
put down the CPU in the
socket housing frame. Be sure
to grape on the edge of the
substrate. Note that the align-
ment keys are matched.
8. Rotate the load plate onto the
package.
7. Visually inspect if the CPU is
seated well into the socket. If not,
take out the CPU with purely verti-
cal motion and reload it again.
alignment
key
5. Lift the load lever up and open the
load plate.
To Next Page
