2-10
MS-7260 Mainboard

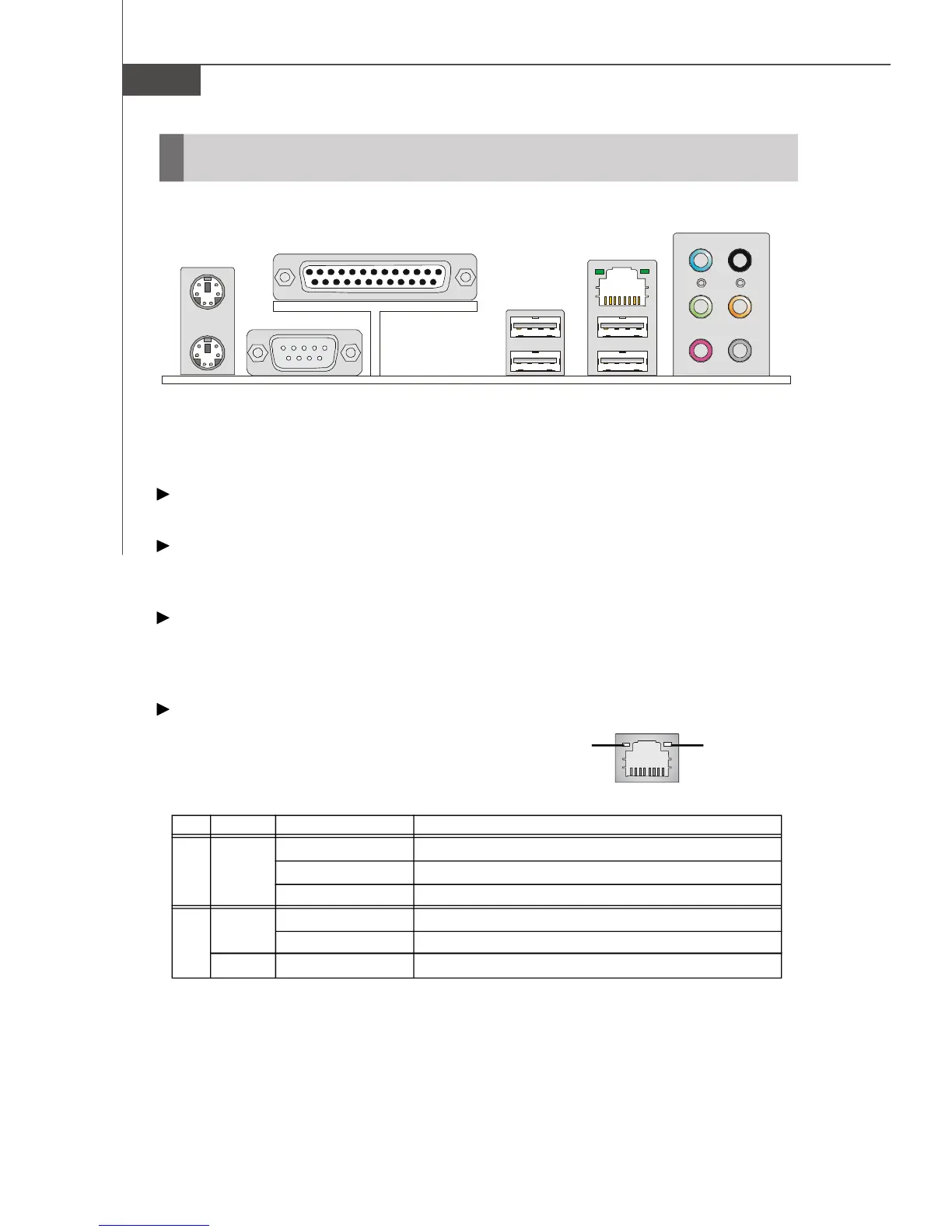

Back Panel
Keyboard
USB Ports
L-In
Mouse
LAN
Parallel Port
SS-Out
CS-Out
RS-Out
L-Out
Mic
Serial Port
Mouse/Keyboard Connector
The standard PS/2
®
mouse/keyboard DIN connector is for a PS/2
®
mouse/keyboard.
Parallel Port Connector
A parallel port is a standard printer port that supports Enhanced Parallel Port (EPP)
and Extended Capabilities Parallel Port (ECP) mode.
Serial Port Connector
The serial port is a 16550A high speed communications port that sends/ receives 16
bytes FIFOs. You can attach a serial mouse or other serial devices directly to the
connector.
LAN (RJ-45) Jack
The standard RJ-45 jack is for connection
to single Local Area Network (LAN). You
can connect a network cable to it.
Link Indicator
(Right LED)
Activity Indicator
(Left LED)
LED Color LED State condition
Off LAN link is not established.
Left Yellow On (steady state) LAN link is established.
On (brighter & pulsing)The computer is communicating with another computer on the LAN.
Green Off 10 Mbit/sec data rate is selected.
Right On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
LAN
