MSI MS-7345 - Memory

2-7
Hardware Setup

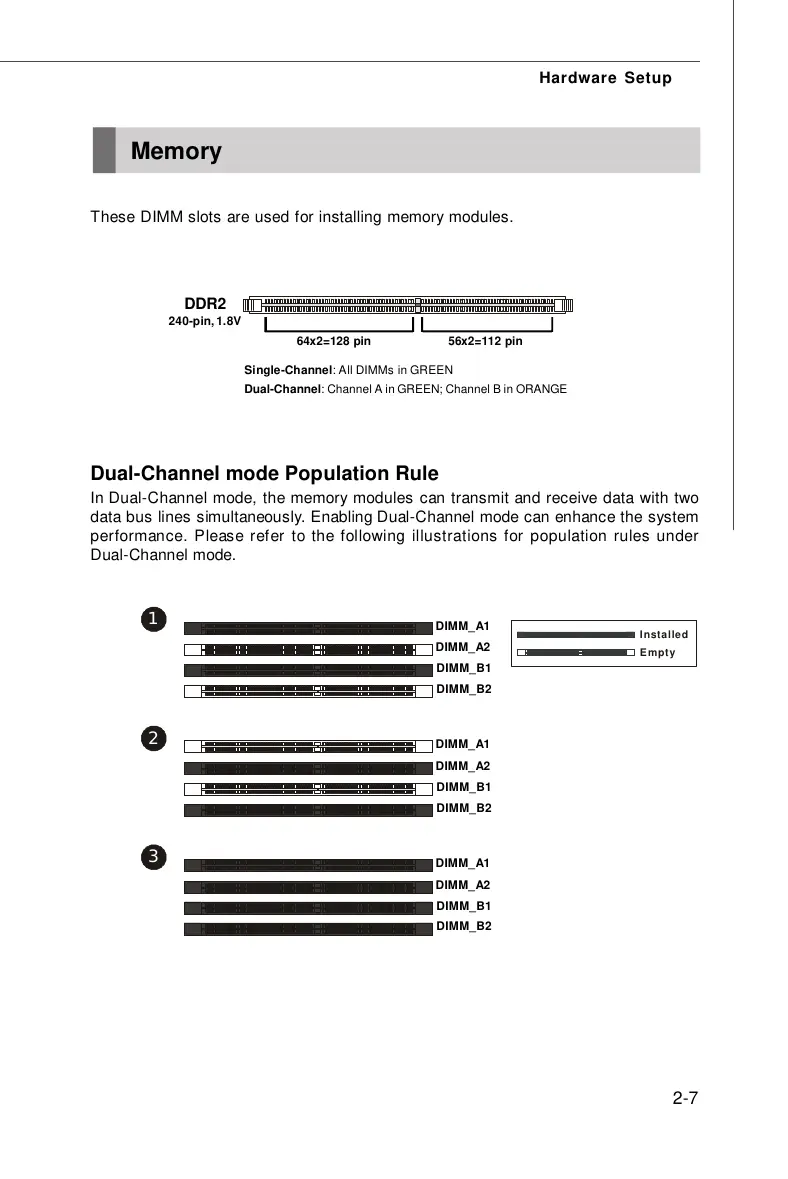

Memory
Dual-Channel mode Population Rule
In Dual-Channel mode, the memory modules can transmit and receive data with two
data bus lines simultaneously. Enabling Dual-Channel mode can enhance the system
performance. Please refer to the following illustrations for population rules under
Dual-Channel mode.
64x2=128 pin 56x2=112 pin
DDR2
240-pin, 1.8V
Single-Channel: All DIMMs in GREEN
Dual-Channel: Channel A in GREEN; Channel B in ORANGE
1
DIMM_A1
DIMM_A2
DIMM_B1
DIMM_B2
2
DIMM_A1
DIMM_A2
DIMM_B1
DIMM_B2
3
DIMM_A1
DIMM_A2
DIMM_B1
DIMM_B2
These DIMM slots are used for installing memory modules.
Empty
Installed
