MSI MS-7345 - LED Status Indicators

2-23
Hardware Setup

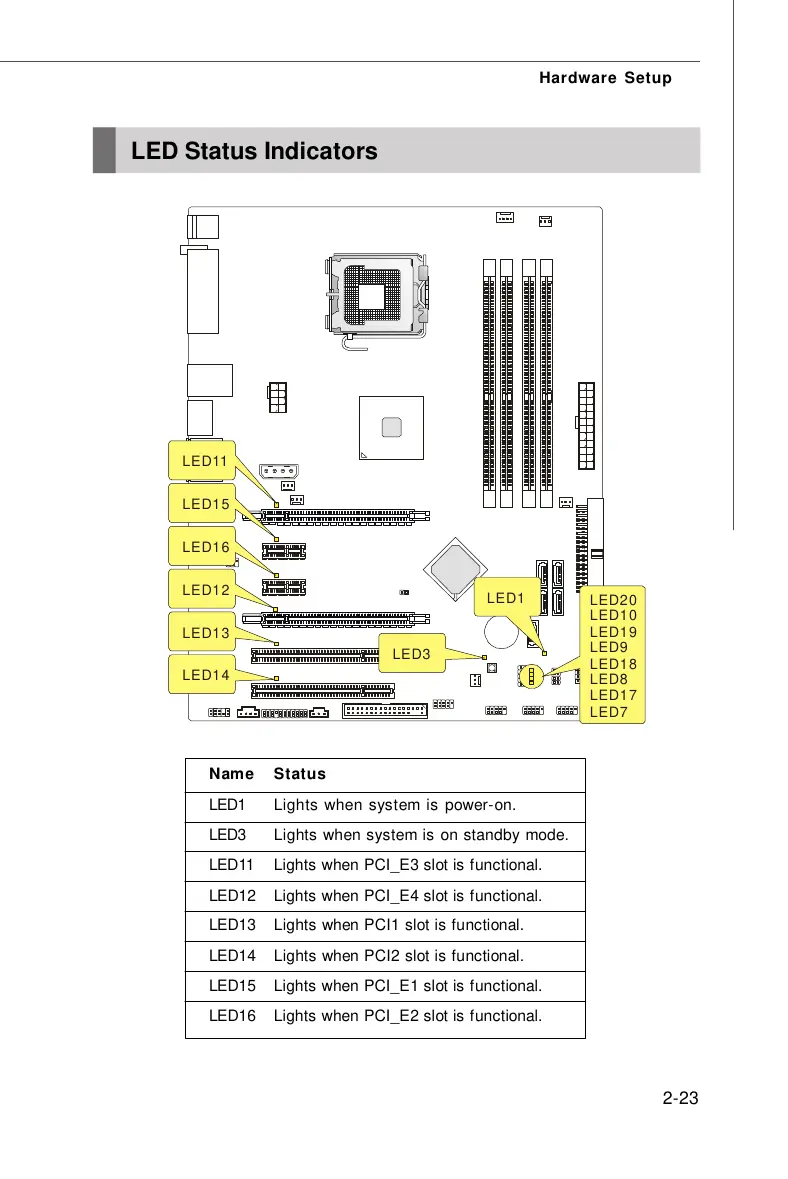

LED Status Indicators
Name Status
LED1 Lights when system is power-on.
LED3 Lights when system is on standby mode.
LED11 Lights when PCI_E3 slot is functional.
LED12 Lights when PCI_E4 slot is functional.
LED13 Lights when PCI1 slot is functional.
LED14 Lights when PCI2 slot is functional.
LED15 Lights when PCI_E1 slot is functional.
LED16 Lights when PCI_E2 slot is functional.
LED14
LED13
LED12
LED16
LED15
LED11
LED3
LED1
LED20
LED10
LED19
LED9
LED18
LED8
LED17
LED7
