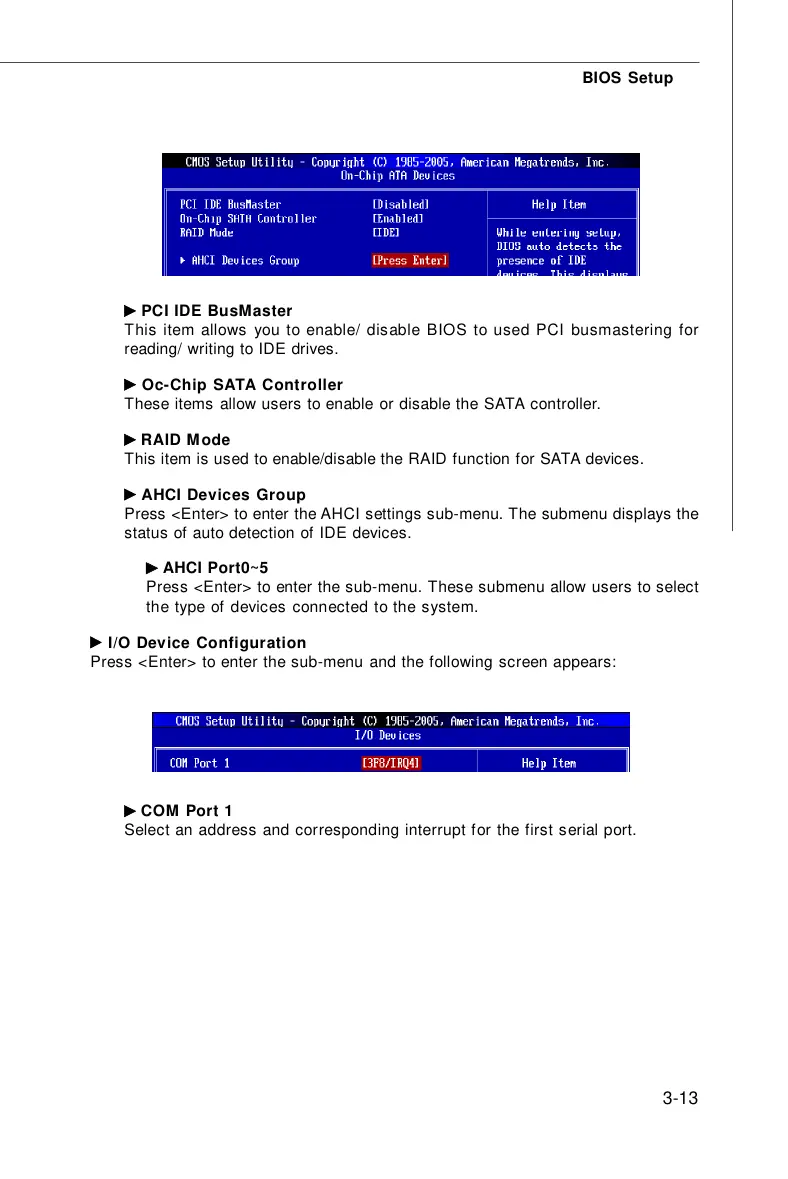

MSI MS-7345 - Page 51

3-13
BIOS Setup
PCI IDE BusMaster
This item allows you to enable/ disable BIOS to used PCI busmastering for
reading/ writing to IDE drives.
Oc-Chip SATA Controller
These items allow users to enable or disable the SATA controller.
RAID Mode
This item is used to enable/disable the RAID function for SATA devices.
AHCI Devices Group
Press <Enter> to enter the AHCI settings sub-menu. The submenu displays the
status of auto detection of IDE devices.
AHCI Port0~5
Press <Enter> to enter the sub-menu. These submenu allow users to select
the type of devices connected to the system.
I/O Device Configuration
Press <Enter> to enter the sub-menu and the following screen appears:
COM Port 1
Select an address and corresponding interrupt for the first serial port.
