2-16
MS-7367 Mainboard
Pin Description Pin Description
1 GND 4 COMP
2 Y OUT 5 GND
3 C OUT
JTV1 Pin Definition

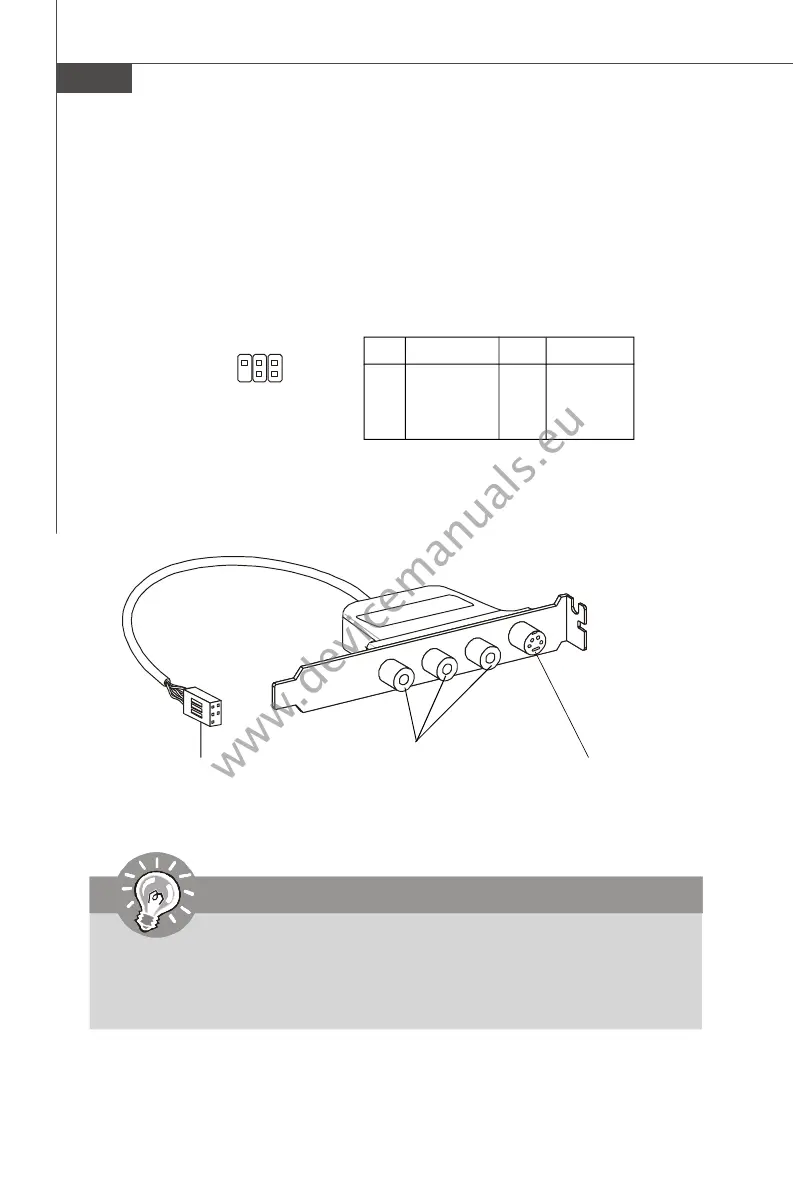

TV-Out Connector: JTV1 (Optional)
This connector is for you to attach an optional TV-Out bracket that offers two types
of TV-Out connectors: S-Video and RCA Composite connectors. Select the appropri-
ate one to connect the standard television or the HDTV (High-Definition TeleVision).
3
JTV1
1
5
4
2
Important
Please note that the TV-Out bracket can connect to one TV only. Users
have to choose either the RCA Composite or the S-Video to connect. Si-
multaneous connection (of this bracket) to two TVs is prohibited and may
lead to the malfunction of the TVs.
TV-Out Bracket (Optional)
Connected to JTV1
TV-Out Connector
(S-Video)
TV-Out Connector
(RCA Composite)
To Next Page
