MS-7367 Mainboard
A-20
Connecting the Speakers
When you have set the Multi-Channel Audio Function mode properly in the software
utility, connect your speakers to the correct phone jacks in accordance with the
setting in software utility.
n 2-Channel Mode for Stereo-Speaker Output

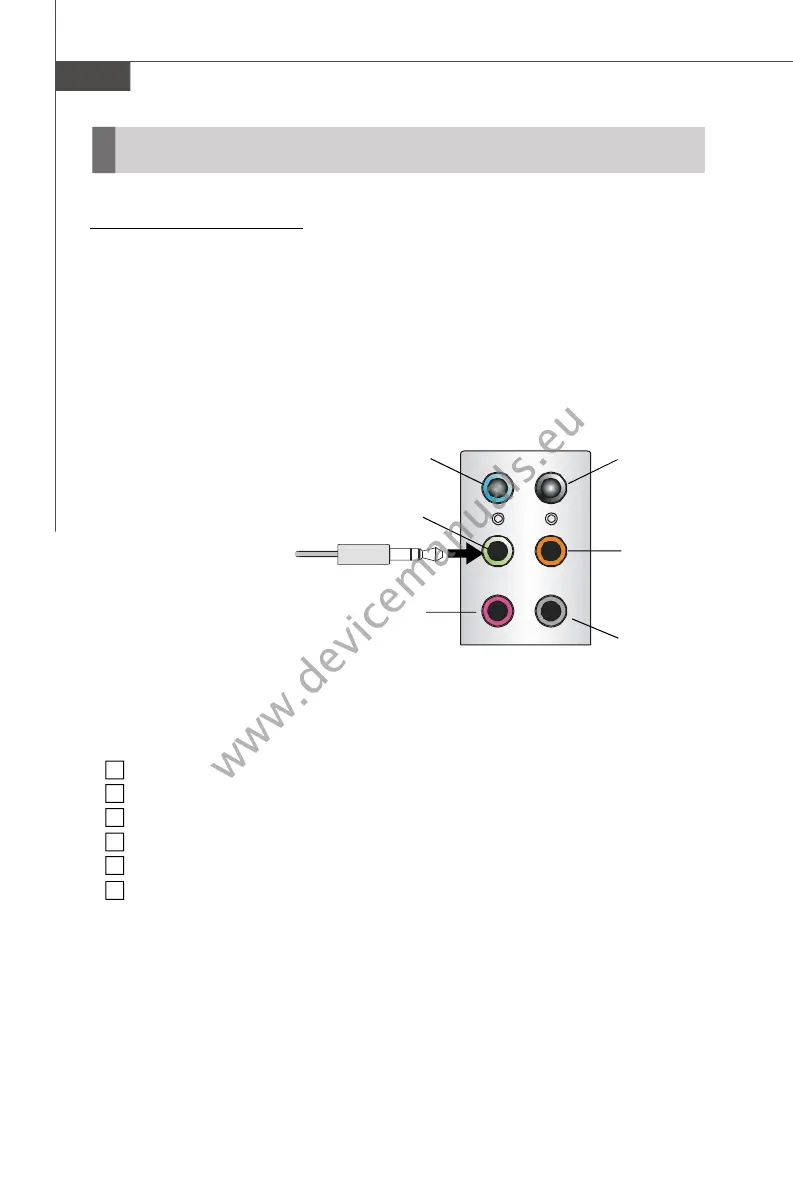

Refer to the following diagram and caption for the function of each phone jack on the
back panel when 2-Channel Mode is selected.
1 Line In
2 Line Out (Front channels)
3 MIC
4 No function
5 No function
6 No function
Hardware Setup
3
1
2
6
4
5
To Next Page
