Chapter 1
1-10
Getting Started

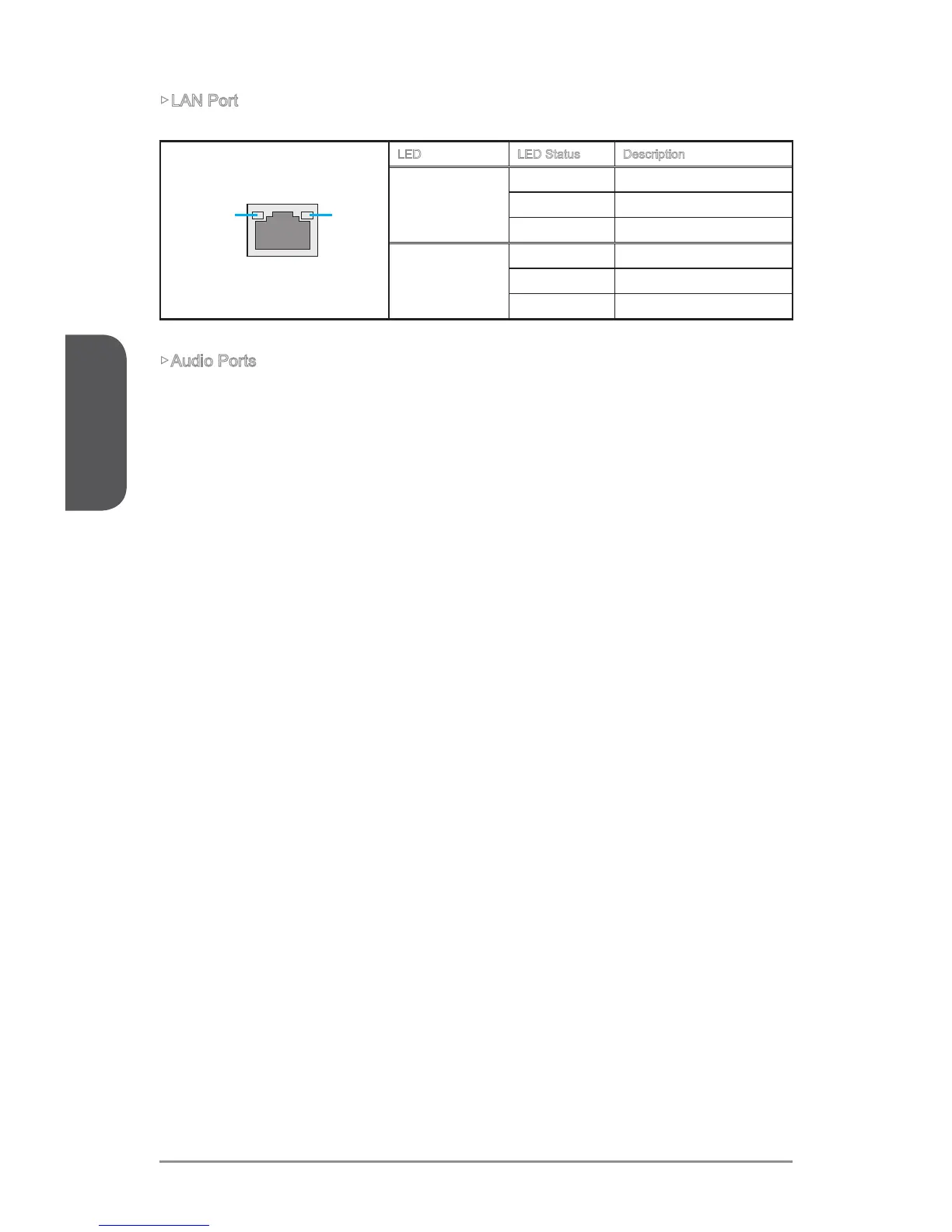

󰁈LAN Port
The standard RJ-45 LAN jack is for connecting to a Local Area Network (LAN).
LINK/ACT
LED
SPEED
LED
LED LED Status Description
Link/ Activity LED
󰘯 No link
Yellow Linked
Blinking Data activity
Speed LED
󰘯 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
󰁈Audio Ports
These connectors are used for audio devices.
󰀲 Line in: Used for connecting external audio outputting devices.
󰀲 Line out: Used as a connector for speakers or headphone.
󰀲 Mic: Used as a connector for a microphone.
󰀲 RS-Out: Rear surround sound line out in 4/ 5.1/ 7.1 channel mode.
󰀲 CS-Out: Center/ subwoofer line out in 5.1/ 7.1 channel mode.
󰀲 SS-Out: Side surround sound line out in 7.1 channel mode.
