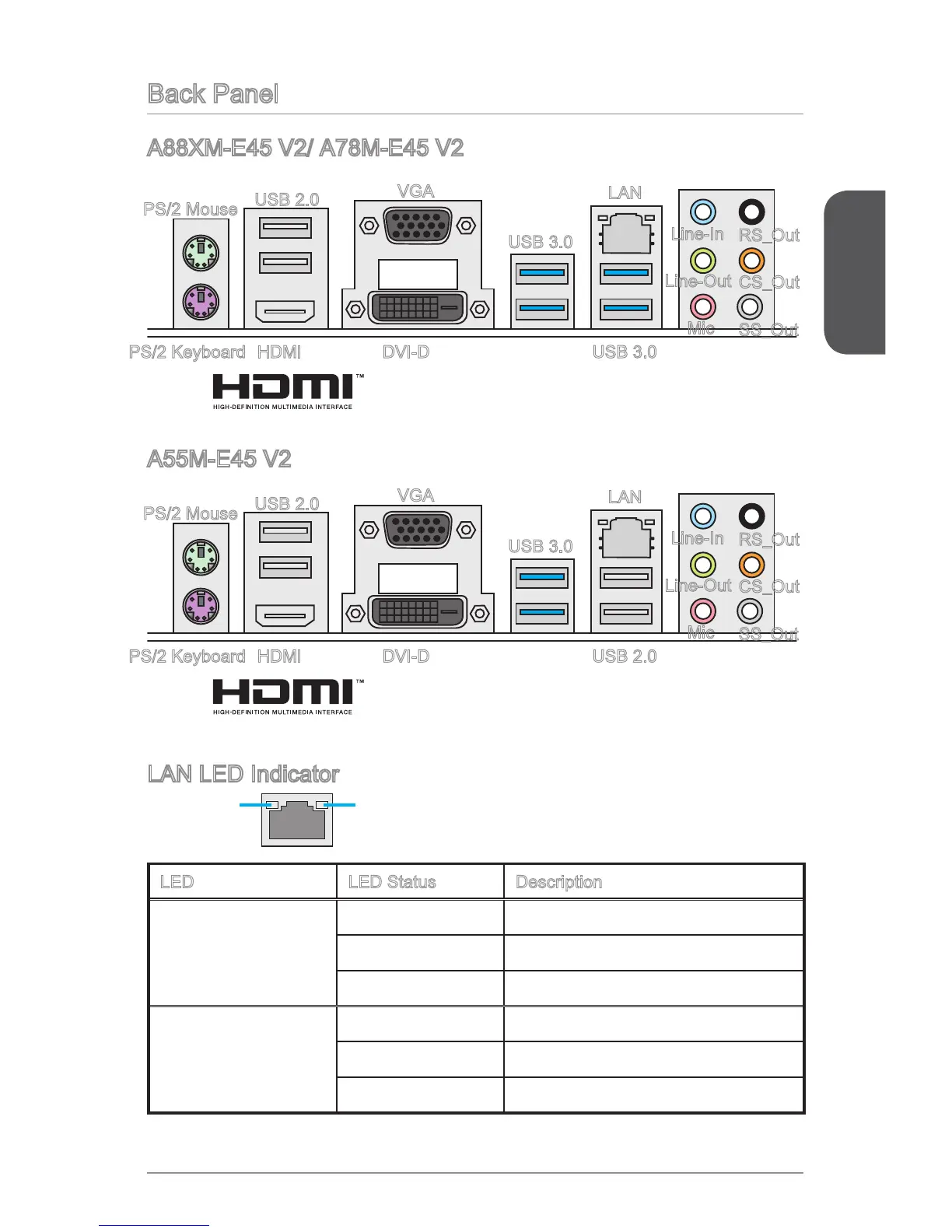

Back Panel
LAN LED Indicator
LINK/ACT
LED
SPEED
LED
LED LED Status Description
Link/ Activity LED
󰘯 No link
Yellow Linked
Blinking Data activity
Speed LED
󰘯 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
A88XM-E45 V2/ A78M-E45 V2
A55M-E45 V2
PS/2 Mouse
PS/2 Keyboard
USB 3.0
USB 2.0
VGA
LAN
Line-In
DVI-DHDMI
Line-Out
Mic
USB 3.0
RS_Out
CS_Out
SS_Out
PS/2 Mouse
PS/2 Keyboard
USB 3.0
USB 2.0
VGA
LAN
Line-In
DVI-DHDMI
Line-Out
Mic
USB 2.0
RS_Out
CS_Out
SS_Out
