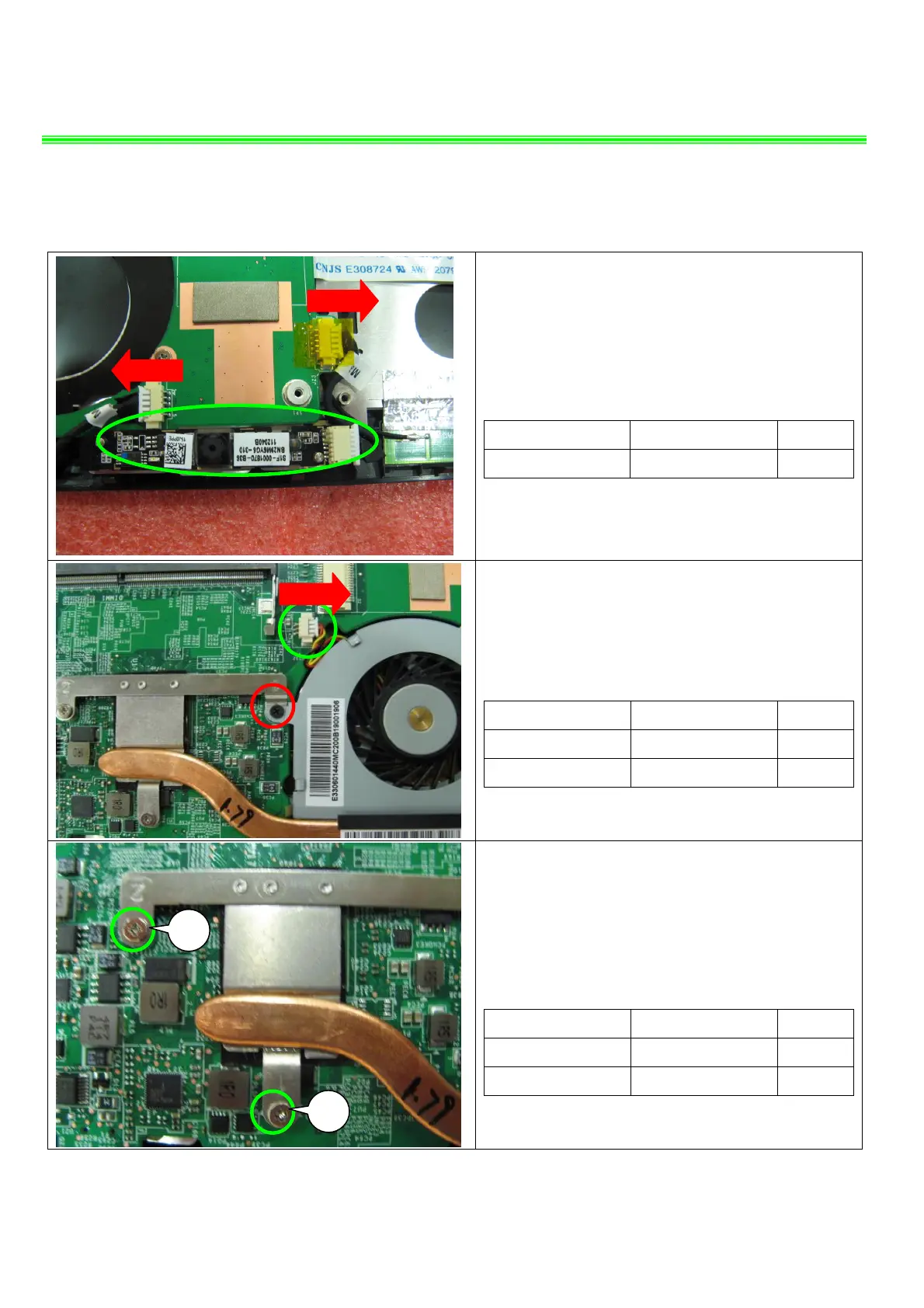

110W（MS-N0E1）Disassembly Guide
2、MB ASSY
2.19: Remove the left camera, then tear the
golden tape, after that remove the right
camera cable and the camera.
Component P/N Qty
Camera Module S1F-0001870-B36 1
2.20: Remove the 1 screw (M2*4mm), after that
remove the FAN cable and FAN.
Attention：the screw driver torque is 1.2-1.5Kgf-cm
Component P/N Qty
Screw E43-1204004-H29 1
Fan E33-0601440-MC2 1
2.21: Remove the 2 screws (M2*3mm), after that
remove the Heatsink.
Attention：the screw driver torque is 1.2-1.5Kgf-cm
Component P/N Qty
Screw E43-1203003-H29 2
Heatsink
E31-0802830-Y31 1
2
1
To Next Page
