MSI Optix Series Manual

Getting Started
PB1-12

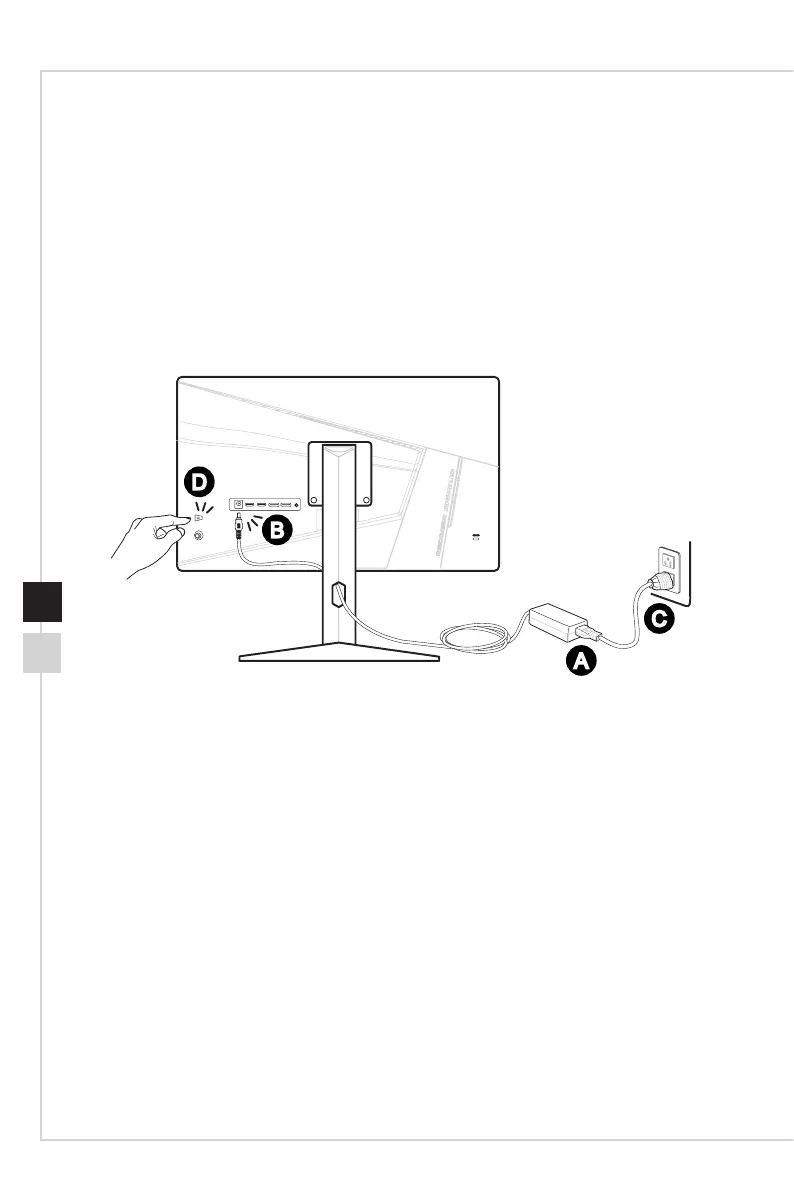

Connecting the Monitor to PC
1� Turn o󰘯 your computer.
2� Connect the HDMI/DisplayPort cable from the monitor to your computer�
3� Assemble the monitor power adapter & power cord�(Figure A)
4� Connect the power adapter to the monitor power jack�(Figure B)
5� Plug the power cord into the electrical outlet�(Figure C)
6� Turn on the monitor�(Figure D)
7� Power on the computer then monitor will auto detect signal source�
B
D
A
C

MSI Optix Series Specifications

General

Panel Type	VA, IPS
Resolution	1920x1080 (FHD), 2560x1440 (QHD), 3440x1440 (UWQHD)
Refresh Rate	144Hz, 165Hz, 240Hz
Response Time	1ms
Adaptive Sync	AMD FreeSync
Curvature	1500R
Connectivity	DisplayPort, HDMI
Brightness	250-400 cd/m²
Contrast Ratio	1000:1 (Typical)
Color Gamut	sRGB, DCI-P3
HDR	HDR400
VESA Mount	Yes
Screen Size	23.6" - 34"
