Overview
1-6
7

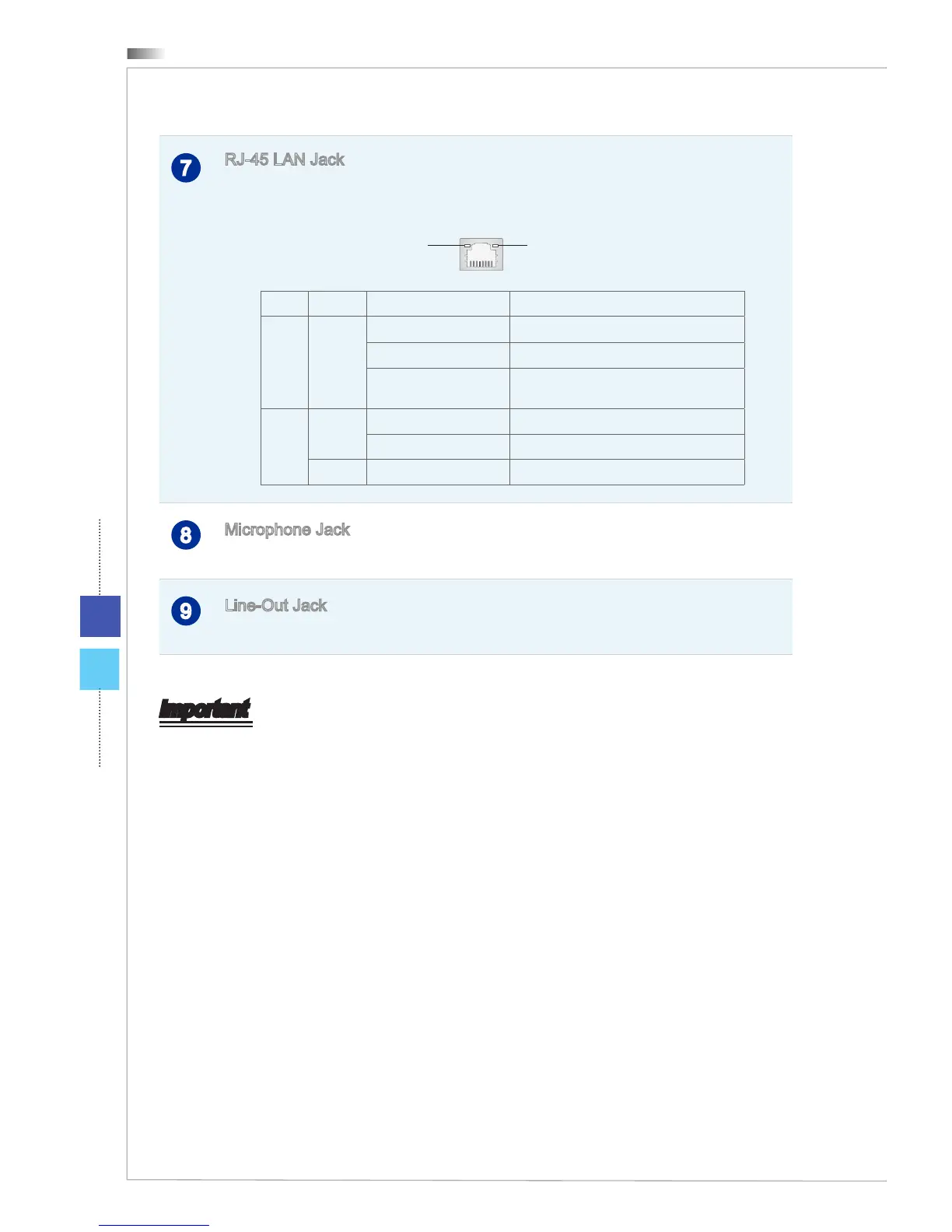

RJ-45 LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area Network
(LAN). You can connect a network cable to it.
Yellow Green/ Orange
LED Color LED State Condition
Left Yellow O LAN link is not established.
On (steady state) LAN link is established.
On (brighter & pulsing) The computer is communicating with
another computer on the LAN.
Right Green O 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
8
Microphone Jack
This connector is provided for microphones.
9
Line-Out Jack
This connector is provided for headphones or speakers.
Important
High-speed devices are recommended for USB 3.0 ports whereas low-speed devices,
such as mouse or keyboard, are suggested to be plugged into the USB 2.0 ports on
the rear panel.
