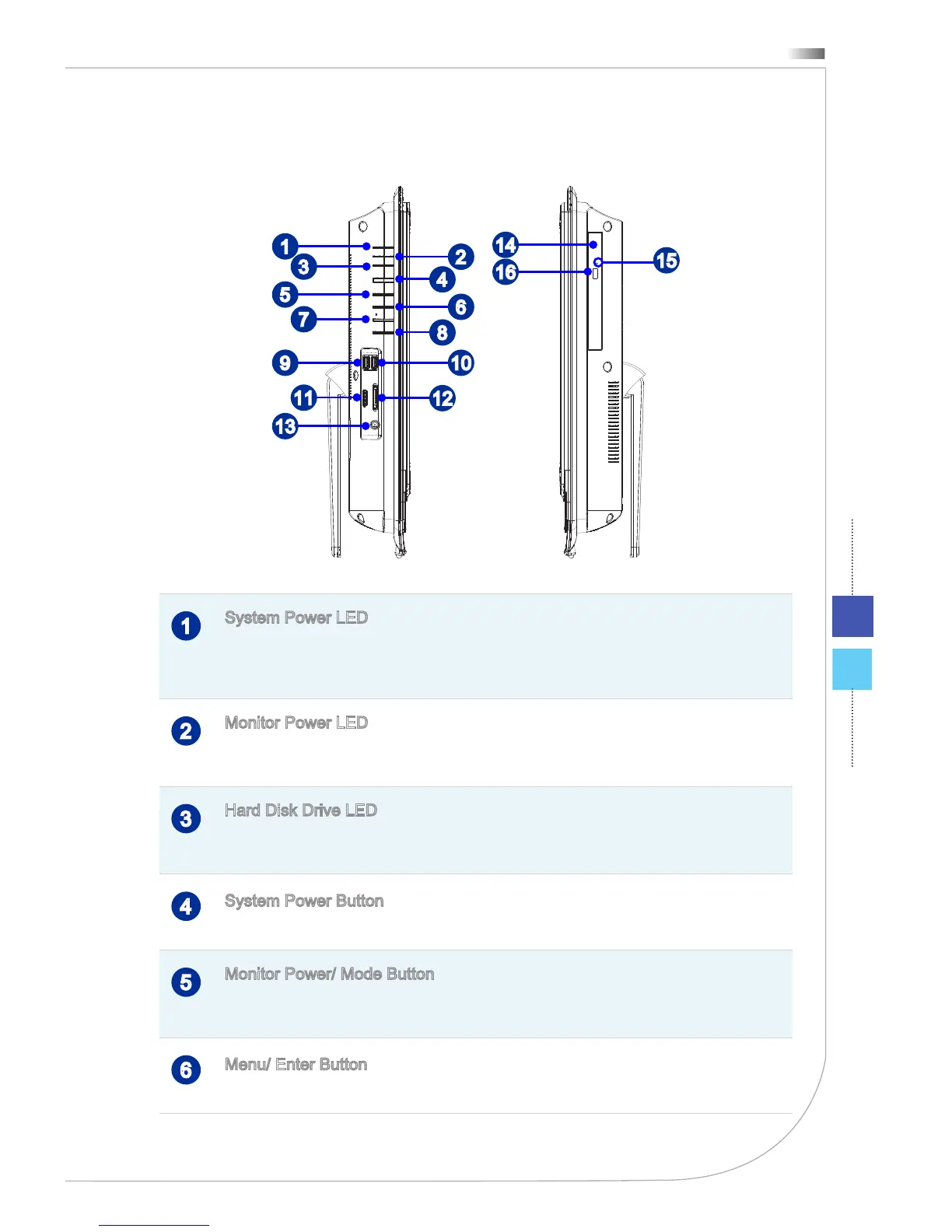

MSI Wind Top AE2282 Series - Side View

1-7
Wind Top Series
Side View
14
16
15
3
7
10
2
6
12
4
8
11
13
5
1
9
1
System Power LED
The power LED glows when the system is turned on and goes o󰘯 when the system is
shut down. In terms of power saving, the LED blinks in S3 (Suspend to RAM) mode and
goes o󰘯 in S4 (Suspend to Disk) mode.
2
Monitor Power LED
The power LED glows when the monitor is turned on and goes o󰘯 when the monitor is
shut down.
3
Hard Disk Drive LED
This indicator shows the activity status of the HDD. It 󰘱ashes when the system is ac-
cessing data on the HDD and remains o󰘯 when no disk activity is detected.
4
System Power Button
Press the system power button to turn the system on or o󰘯.
5
Monitor Power/ Mode Button
This button works both as the monitor power button and as the signal input switch
between PC & HDMI.
6
Menu/ Enter Button
Press this button to view the OSD menu or enter into the submenu.

