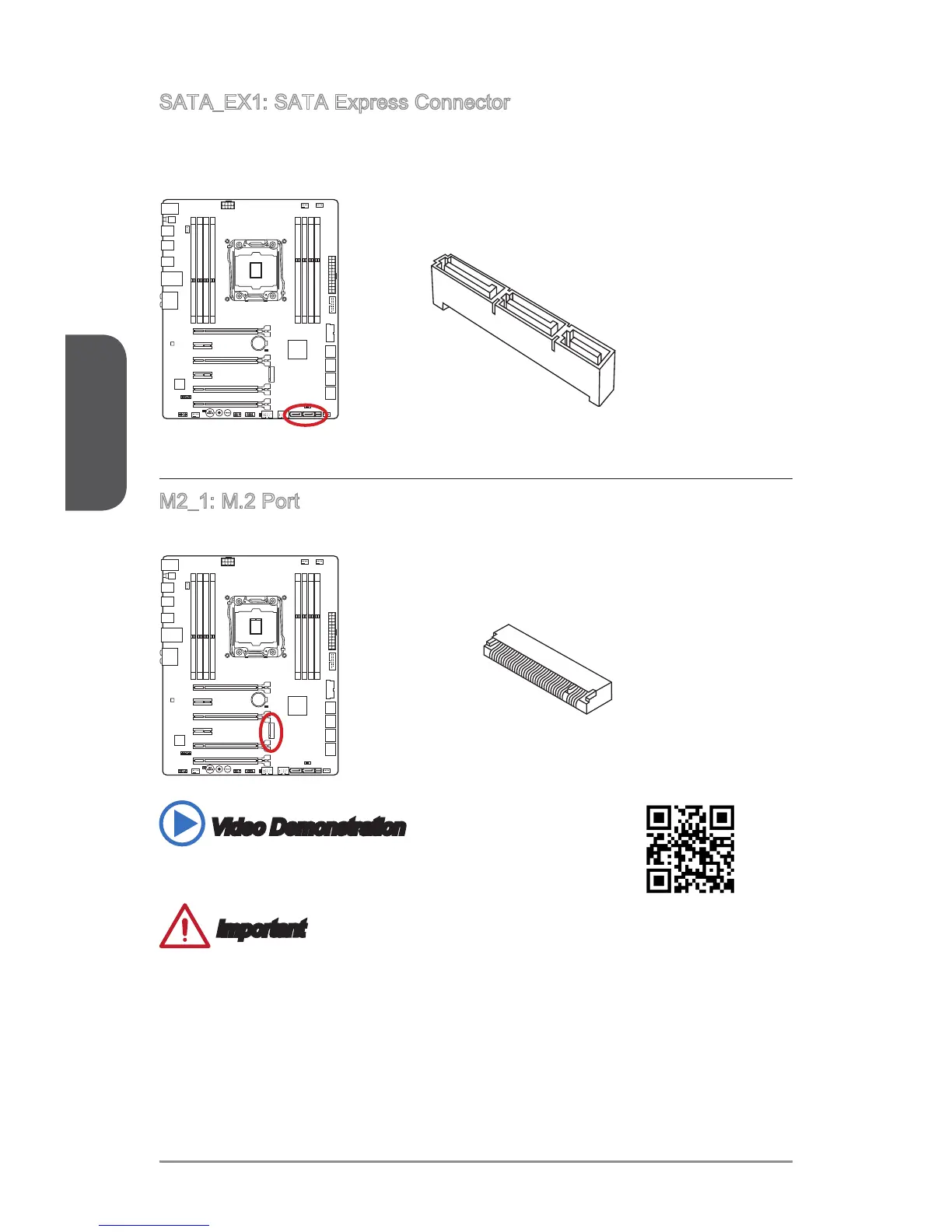

SATA_EX1: SATA Express Connector
The SATA Express, a new high performance storage interface, supports to connect 1
SATA Express device with up to 10 Gb/s transfer rate. Connects the SATA Express
device to this 3-in-1 connector by a SATA Express cable.
SATA3_ 4SATA9_ 10
SATA1_ 2SATA7_ 8
M2_1: M.2 Port
The M.2 port supports either M.2 SATA 6Gb/s module or M.2 PCIe module.
SATA3_ 4SATA9_ 10
SATA1_ 2SATA7_ 8
Video Demonstration
Watch the video to learn how to install M.2 module.
http://youtu.be/JCTFABytrYA
Important
•
The SATA Express port/ SATA5~6 ports will be unavailable when installing the M.2
SATA interface module in the M.2 port.
•
Intel RST does not support PCIe M.2 SSD with Legacy ROM.
•
M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 and RAID 10.
•
Always turn o the power supply and unplug the power cord from the power outlet
before installing or removing the M.2 module.
