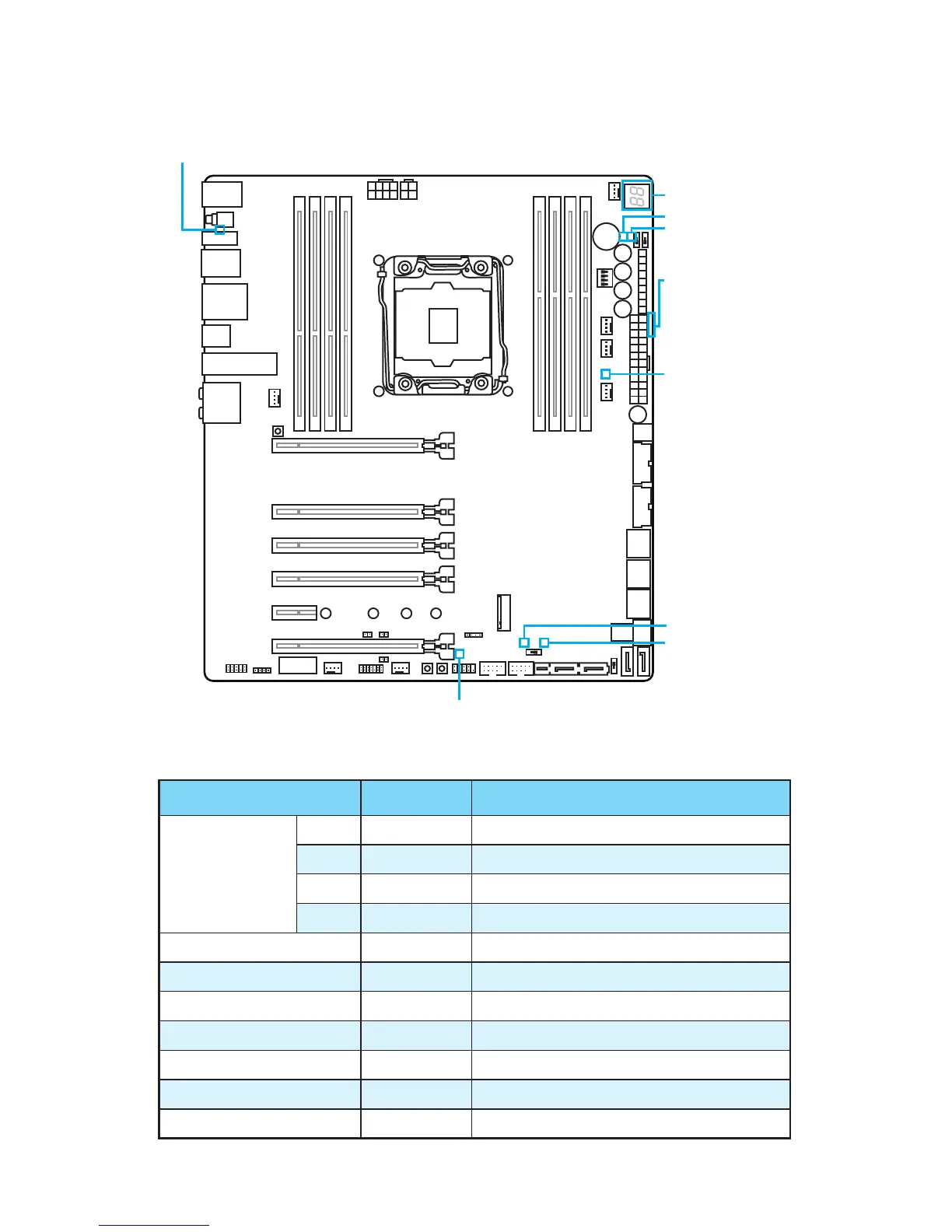

LED Status Indicators
LED Status Indicators
HDD LED
XMP LED
BIOS A LED
BIOS B LED
GAME BOOST HW LED
GAME BOOST SW LED
BIOS FLASHBACK+ LED
LED Status Table
LED LED Status Description
EZ Debug LED 2
CPU White CPU is not detected or fail
DRAM White Memory is not detected or fail
VGA White GPU is not detect or fail
BOOT White Booting device is not detected or fail
GAME BOOST HW Red GAME BOOST control by physical button
GAME BOOST SW White GAME BOOST control by BIOS
BIOS A Red BIOS A in operation
BIOS B White BIOS B in operation
XMP White XMP enabled
BIOS FLASHBACK+ Blinking BIOS flash is in progress
HDD Blinking HDD activity
EZ Debug LED 2:
CPU
DRAM
VGA
BOOT
Debug Code LED
