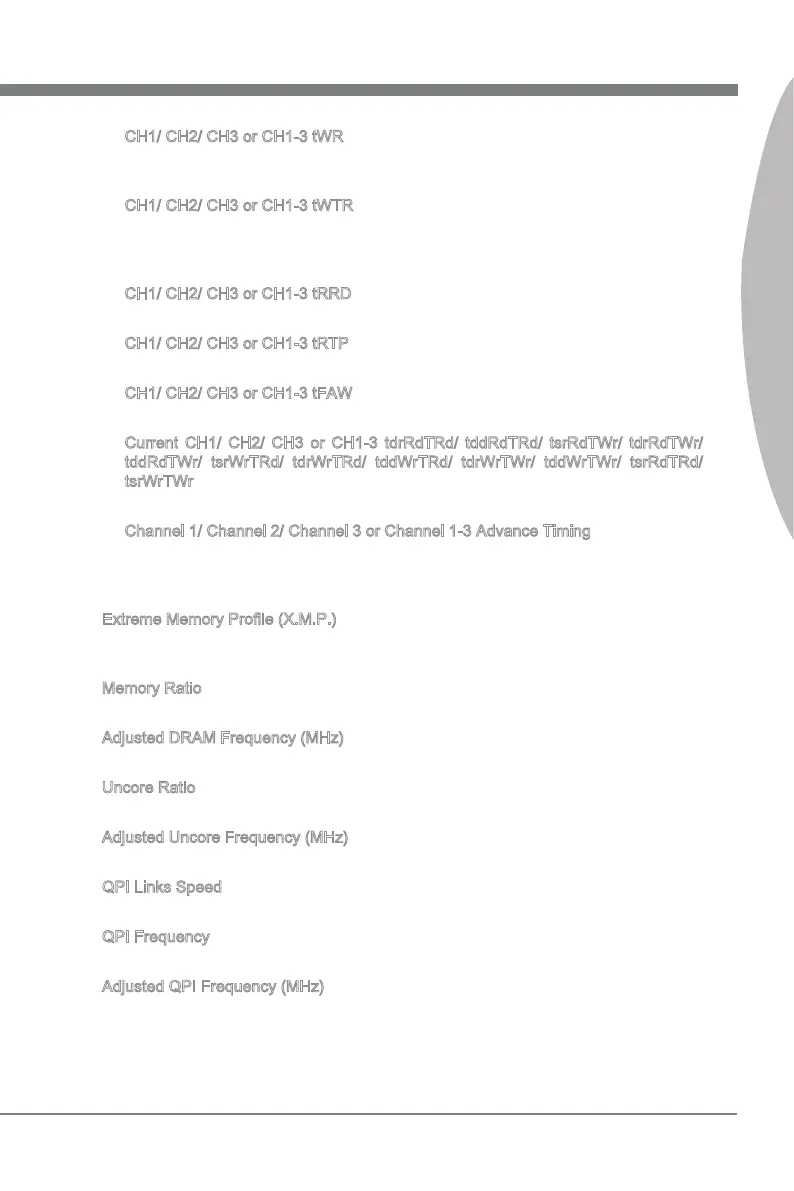

CH1/ CH2/ CH3 or CH1-3 tWR
Minimum time interval between end of write data burst and the start of a precharge
command. Allows sense ampli󰘰ers to restore data to cells.
CH1/ CH2/ CH3 or CH1-3 tWTR
Minimum time interval between the end of write data burst and the start of a col-
umn-read command. It allows I/O gating to overdrive sense ampli󰘰ers before read
command starts.
CH1/ CH2/ CH3 or CH1-3 tRRD
Speci󰘰es the active-to-active delay of di󰘯erent banks.
CH1/ CH2/ CH3 or CH1-3 tRTP
Time interval between a read and a precharge command.
CH1/ CH2/ CH3 or CH1-3 tFAW
This item is used to set the tFAW timing.
Current CH1/ CH2/ CH3 or CH1-3 tdrRdTRd/ tddRdTRd/ tsrRdTWr/ tdrRdTWr/
tddRdTWr/ tsrWrTRd/ tdrWrTRd/ tddWrTRd/ tdrWrTWr/ tddWrTWr/ tsrRdTRd/
tsrWrTWr
These item show the advanced DRAM timings.
Channel 1/ Channel 2/ Channel 3 or Channel 1-3 Advance Timing
Setting to [Auto] enables the advance memory timing automatically to be determined
by BIOS. Setting to [Manual] allows you to set the following advanced memory tim-
ings.
Extreme Memory Pro󰘰le (X.M.P.)
This item is used to enable/ disable the Intel Extreme Memory Por󰘰le (X.M.P.). For
further information please refer to Intel’s o󰘲cial website.
Memory Ratio
This item allows you to set the memory multiplier.
Adjusted DRAM Frequency (MHz)
It shows the adjusted DRAM frequency. Read-only.
Uncore Ratio
This item allows you to set the uncore multiplier.
Adjusted Uncore Frequency (MHz)
It shows the adjusted uncore frequency. Read-only.
QPI Links Speed
This item is used to select the QPI link speed mode.
QPI Frequency
This item allows you to set the QPI frequency.
Adjusted QPI Frequency (MHz)
It shows the adjusted QPI frequency. Read-only.
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
