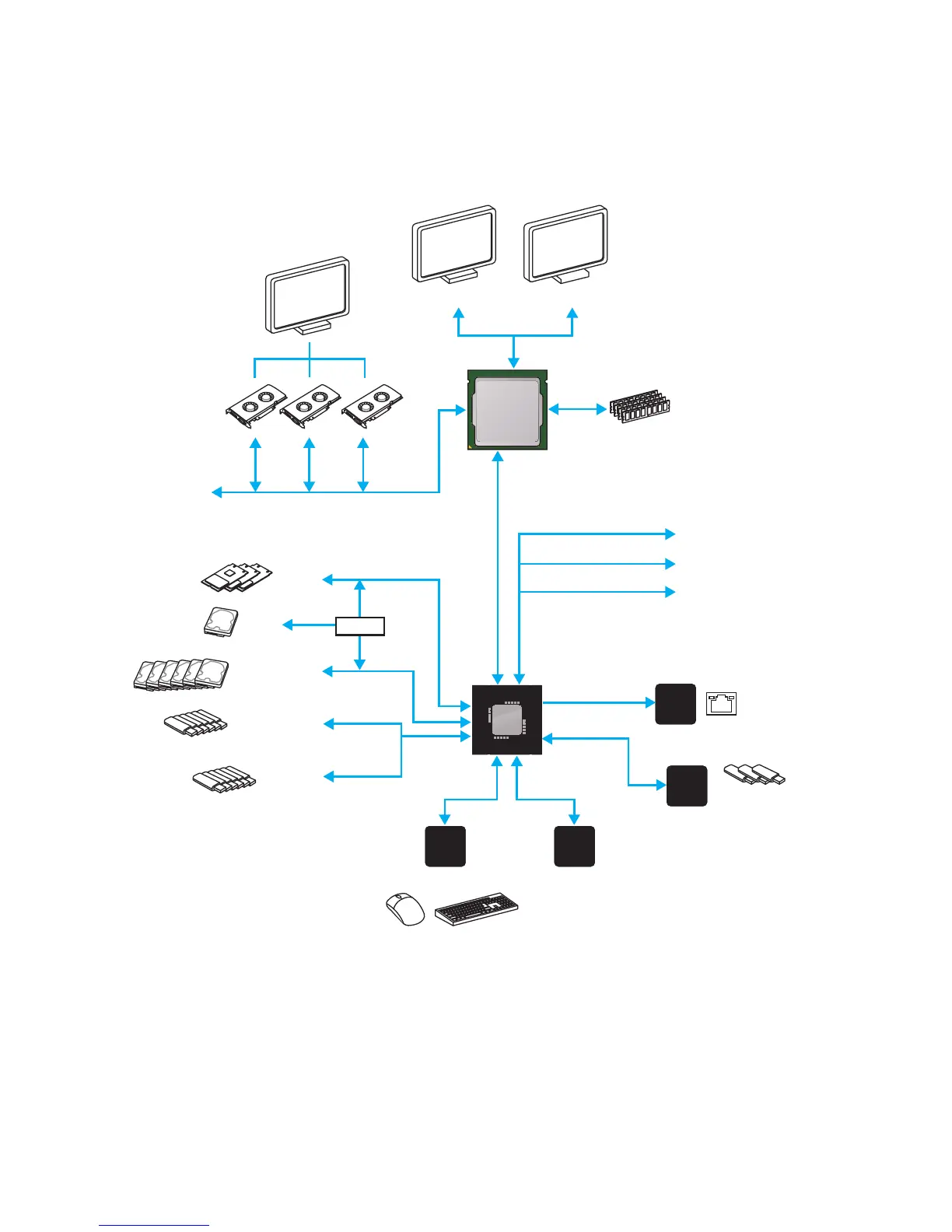

Block Diagram
Block Diagram
LPC Bus
3 x USB 3.1 Gen2
2 Channel DDR4 Memory
6 x USB 3.1 Gen1
3 x M.2
7 x USB 2.0
PCI-E Bus
PCI Express Bus
PCI Express Bus
P/S2 Mouse / Keyboard
DMI 3.0
Z270
CPU
NV6795
Super I/O
Realtek
ALC1220
ASMEDIA
ASM2142
Killer
E2500
x1
x1
x2
x2
PCI Express Bus
HDMI DisplayPort
Switch
x1
PCIe x1 slot
PCIe x1 slot
PCIe x1 slot
6 x SATA 6Gb/s
1 x U.2
(Rear + Front)
