MSI Z270 SLI PLUS

32
Overview of Components

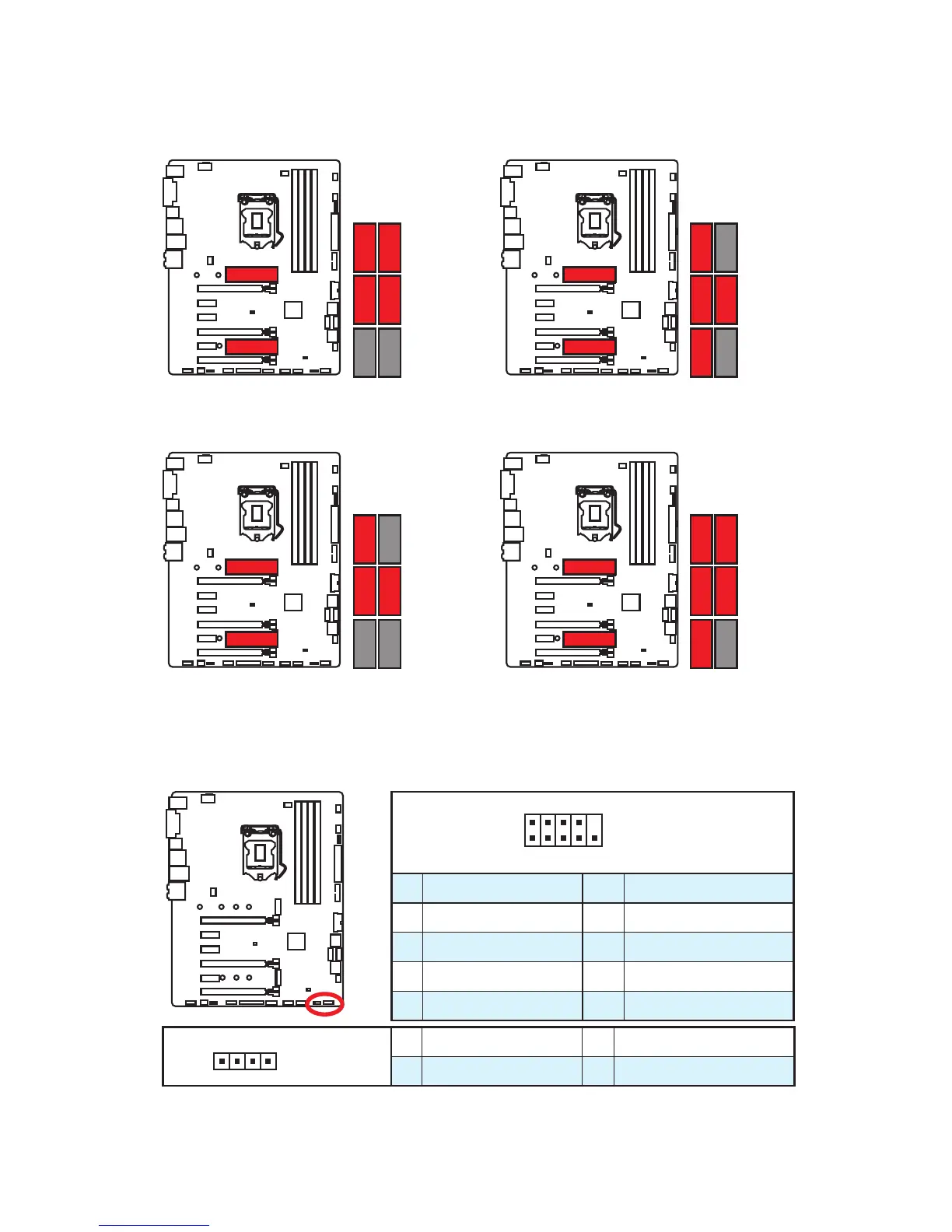

JFP1, JFP2: Front Panel Connectors
These connectors connect to the switches and LEDs on the front panel.
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
1
JFP2
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
M.2 slots with examples of various combination possibilities
PCIe SATA
SATA PCIe
PCIe SATA
PCIe SATA
SATA4 SATA2
2xM.2 PCIe SSDs + 4xSATA HDDs
2xM.2 SATA SSDs + 4xSATA HDDs
1xM.2 PCIe SSD + 1xM.2 SATA SSD +
5xSATA HDDs
SATA3 SATA2
SATA1SATA4
SATA3 SATA2
SATA4
SATA3 SATA2
SATA4
SATA6SATA3 SATA2
SATA1SATA4
SATA6
1xM.2 SATA SSD + 1xM.2 PCIe SSD +
3xSATA HDDs
