MSI Z68MA-ED55 (B3) series User Manual

2-2
Hardware Setup

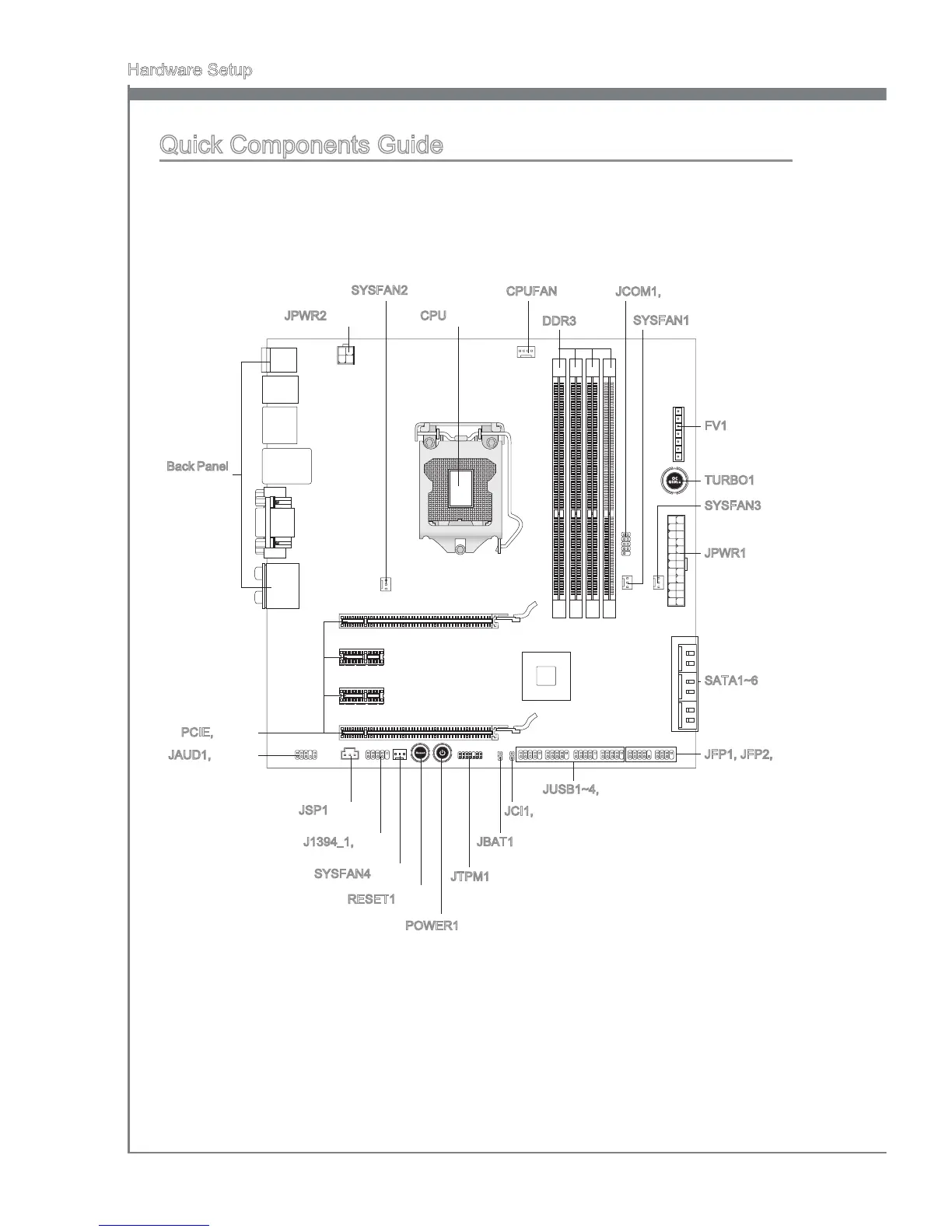

Quck Components Gude
Back Panel,
p.2-10
CPU, p.2-4
CPUFAN, p.2-13
DDR3, p.2-7
FV1, p.2-19
JPWR2, p.2-9
JPWR1, p.2-9
SYSFAN3, p.2-13
SATA1~6, p.2-12
JFP1, JFP2, p.2-16
JUSB1~4, p.2-14
JCOM1, p.2-13
JSP1, p.2-15
JAUD1, p.2-15
JCI1, p.2-17
JTPM1, p.2-17
PCIE, p.2-22
SYSFAN2, p.2-13
JBAT1, p.2-21
SYSFAN1, p.2-13
POWER1, p.2-18
RESET1, p.2-18
J1394_1, p.2-16
SYSFAN4, p.2-13
TURBO1, p.2-18

MSI Z68MA-ED55 (B3) series Specifications

General

Brand	MSI
Model	Z68MA-ED55 (B3) series
Category	Motherboard
Language	English
