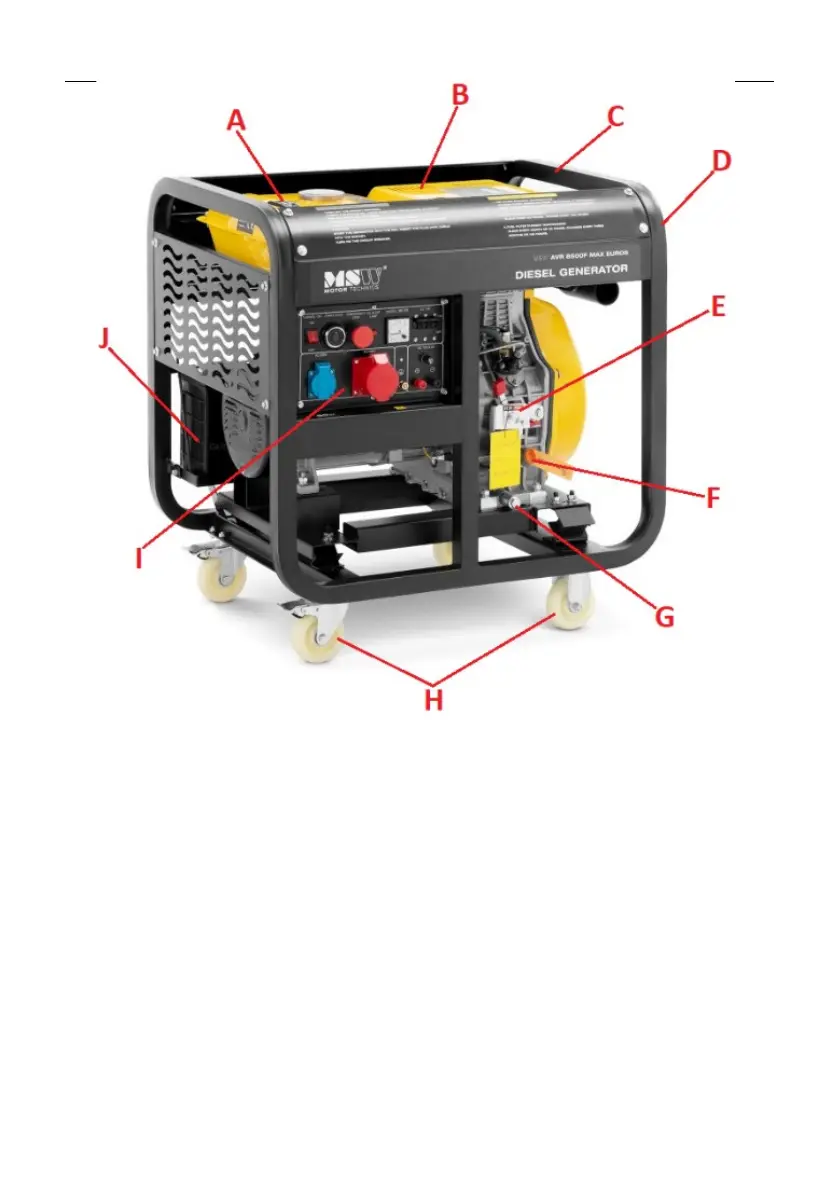

A. Fuel tank
B. Exhaust silencer (hidden under the yellow cover)
C. Support frame
D. Air filter casing
E. Throttle lever
F. Oil filler plug with dipstick
G. Engine oil drain plug
H. Transport wheels (2x with brake + 2x without)
I. Control panel with power sockets
Closed generator on the example of the model MSW-AVR 8500S MAX EURO5
(other similar):
