10 Section 3 — ASSembly & Set-Up

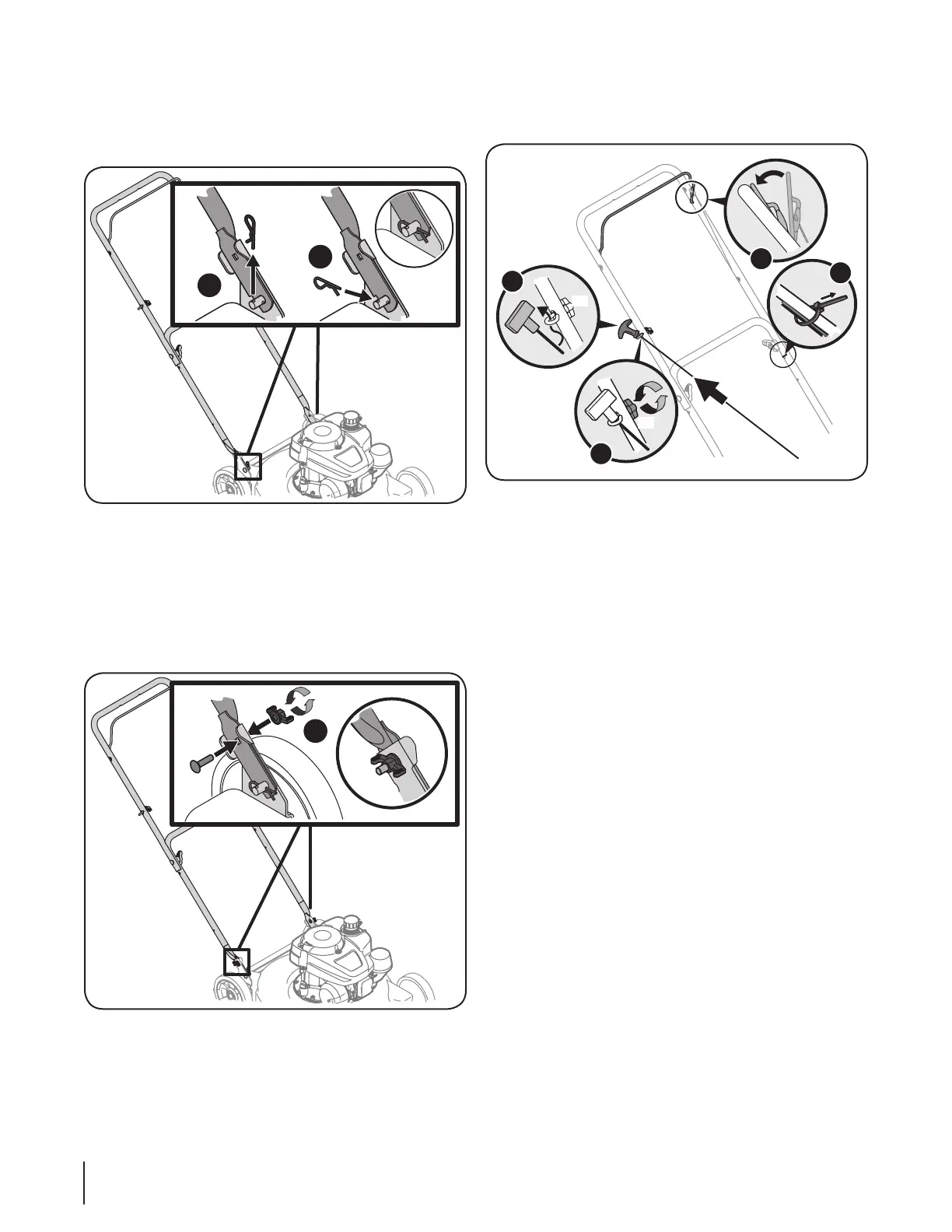

3. The rope guide is attached to the right side of the upper
handle. See Figure 3-4. Loosen the wing nut (a) which
secures the rope guide.
Figure 3-4
a. Hold blade control against upper handle.
b. Slowly pull starter rope handle out of the engine and
slip starter rope into rope guide. See Figure 3-4.
c. Tighten rope guide wing nut (a).
d. Insert cable tie into hole provided on the lower
handle. Wrap around cable and handle, pull tight,
and trim excess.
2. Locate the hairpin clip on the pivot stud on each side of
lower handle.
a. Remove hairpin clip (a) from hole at end of stud.
See Figure 3-2.
Figure 3-2
b. Insert hairpin clip (a) into the hole on pin closest to
the bracket. Repeat on other side.
c. Insert a carriage screw (a) from Group 1 in the
Hardware Pack into the upper hole on the handle
mounting bracket. Secure with one plastic
wing nut (b) from Group 1. See Figure 3-3. Repeat on
other side with remaining hardware from Group 1.
Figure 3-3
