Assembly & Set-Up
3
9
• Lawn Mower (1) • Chute Deflector (1) • Hardware Pack (1)
• Lawn Mower Operator’s Manual (1) • Engine Operator’s Manual (1) • Oil (1)
• Registration Card (1)
Hardware Pack
Group 1
Qty. 2
Qty. 2
Group 2
Qty. 2
Qty. 2
Qty. 2
Assembly
NOTE: This lawn mower is shipped without gasoline or oil in the
engine. Fill up the gasoline and oil as instructed in the Engine
Operator’s Manual BEFORE operating your mower.
Handle
1. Remove any packing material which may be between
upper and lower handles.
a. While pushing in on both sides of the lower handle,
pull up and back on upper handle as shown in
Figure 3-1. Make certain the lower handle is seated
securely into the handle mounting brackets. Do not
crimp cable while lifting the handle up.
b. Tighten wing knobs to secure upper handle to lower
handle. Make sure that each carriage bolt is seated
properly in the handle.

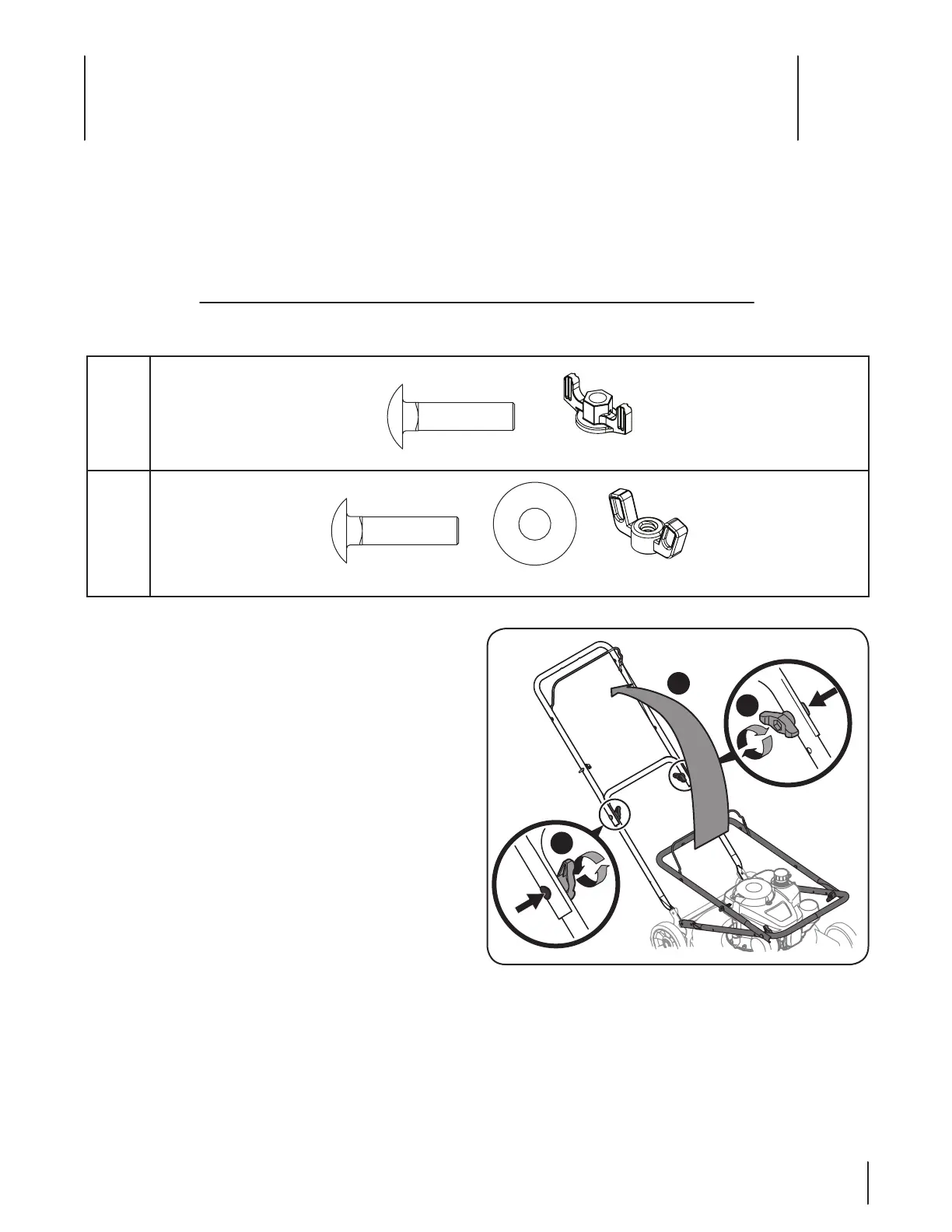

Figure 3-1
To Next Page
