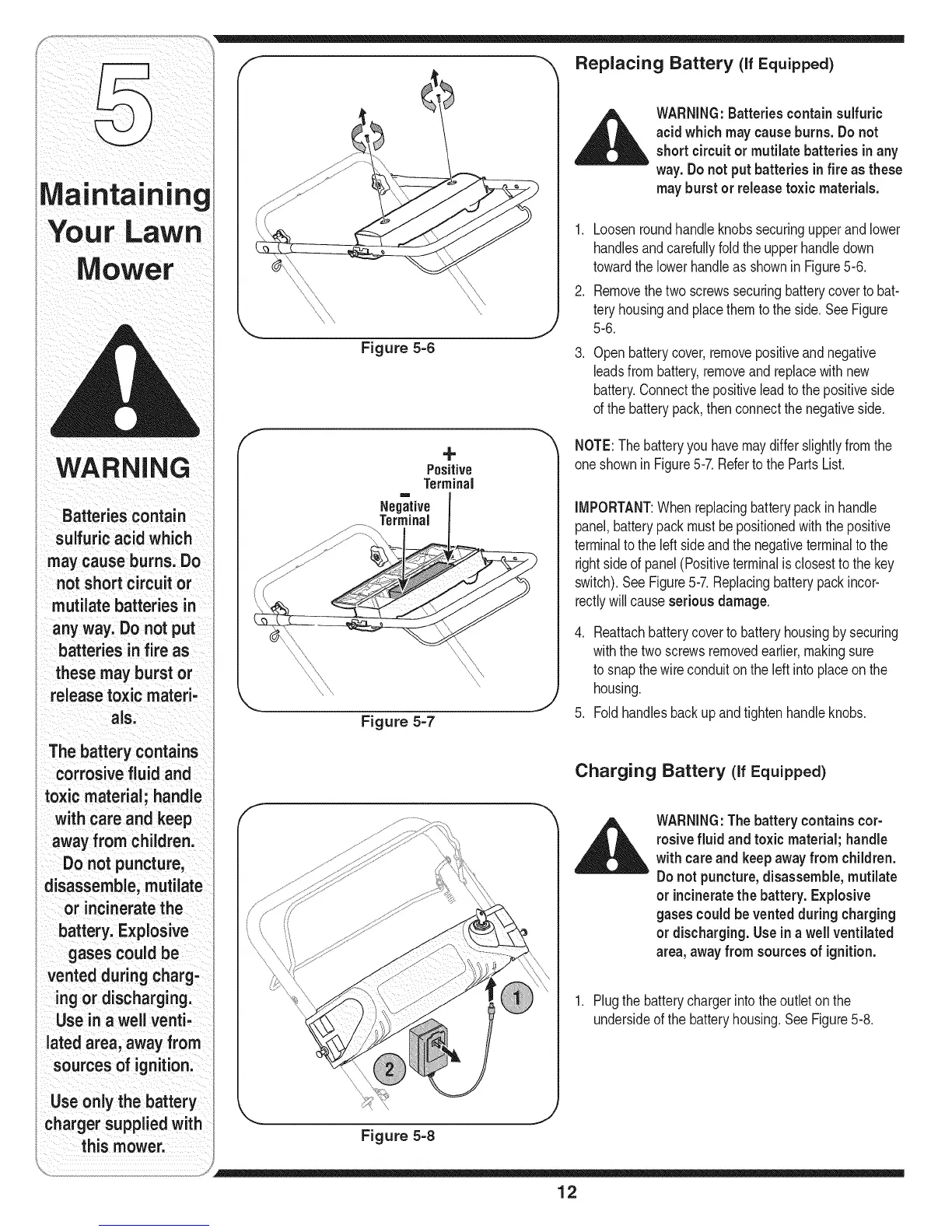

MTD 12AE469A229 - Page 12

WARNING
Batteries contain
sulfuricacidwhich
may cause burns. Do
not short circuit or
mutilate batteries in
any way. Do not put
batteries infire as
i these may burst or
release toxic materi-
als.
The battery contains
corrosivefluid and
i toxic material; handle
with care and keep
away from children.
Do not puncture,
i disassemble, mutilate
I or incineratethe
i battery. Explosive
gasescould be
vented during charg-
i ingot discharging.
I Usein a well venti-
I lated area, away from
sources of ignition.
I Use onlythe battery
charger supplied with
this mower.
f _ Replacing Battery (if Equipped)
Figure 5=6
f +
Positive
Terminal
==
Negative
Terminal
Figure 5=7
__k ARNING:Batteriescontainsulfuric
acid which maycause burns.Donot
short circuit or mutilate batteries in any
way.Donot put batteries infire as these
may burst or releasetoxic materials.
1. Loosenroundhandleknobssecuringupperandlower
handlesandcarefullyfold the upperhandledown
towardthelowerhandleas shownin Figure5-6.
2. Removethetwo screwssecuringbatterycovertobat-
teryhousingandplacethemto the side.SeeFigure
5-6.
.
Openbatterycover,removepositiveandnegative
leadsfrombattery,removeandreplacewith new
battery.Connectthe positiveleadto the positiveside
ofthebatterypack,thenconnectthenegativeside.
NOTE:Thebatteryyouhavemaydifferslightlyfromthe
oneshownin Figure5-7.RefertothePartsList.
IMPORTANT:Whenreplacingbatterypackin handle
panel,batterypackmustbepositionedwiththe positive
terminaltothe leftsideandthe negativeterminalto the
rightsideofpanel(Positiveterminalis closestto the key
switch).SeeFigure5-7.Replacingbatterypackincor-
rectlywillcauseserious damage.
4. Reattachbatterycoverto batteryhousingby securing
withthetwoscrewsremovedearlier,makingsure
tosnapthewireconduiton theleftintoplaceonthe
housing.
5. Foldhandlesbackup andtightenhandleknobs.
,.r _,
Charging Battery (if Equipped)
WARNING:Thebatterycontainscor-
rosive fluid and toxic material; handle
with care and keepawayfrom children.
Donot puncture,disassemble,mutilate
or incineratethe battery.Explosive
gasescould bevented during charging
or discharging. Useina well ventilated
area,awayfrom sources of ignition.
1. Plugthe batterychargerintothe outleton the
undersideof the batteryhousing.SeeFigure5-8.
Figure 5=8
12
