9
• Insert the six clips on the underside of the bagger
cover into the corresponding attaching slots in the
grass bag.
• Press firmly in the on the top of the bagger cover in
the area of the attaching slots to ensure that the
clips are locked into place.

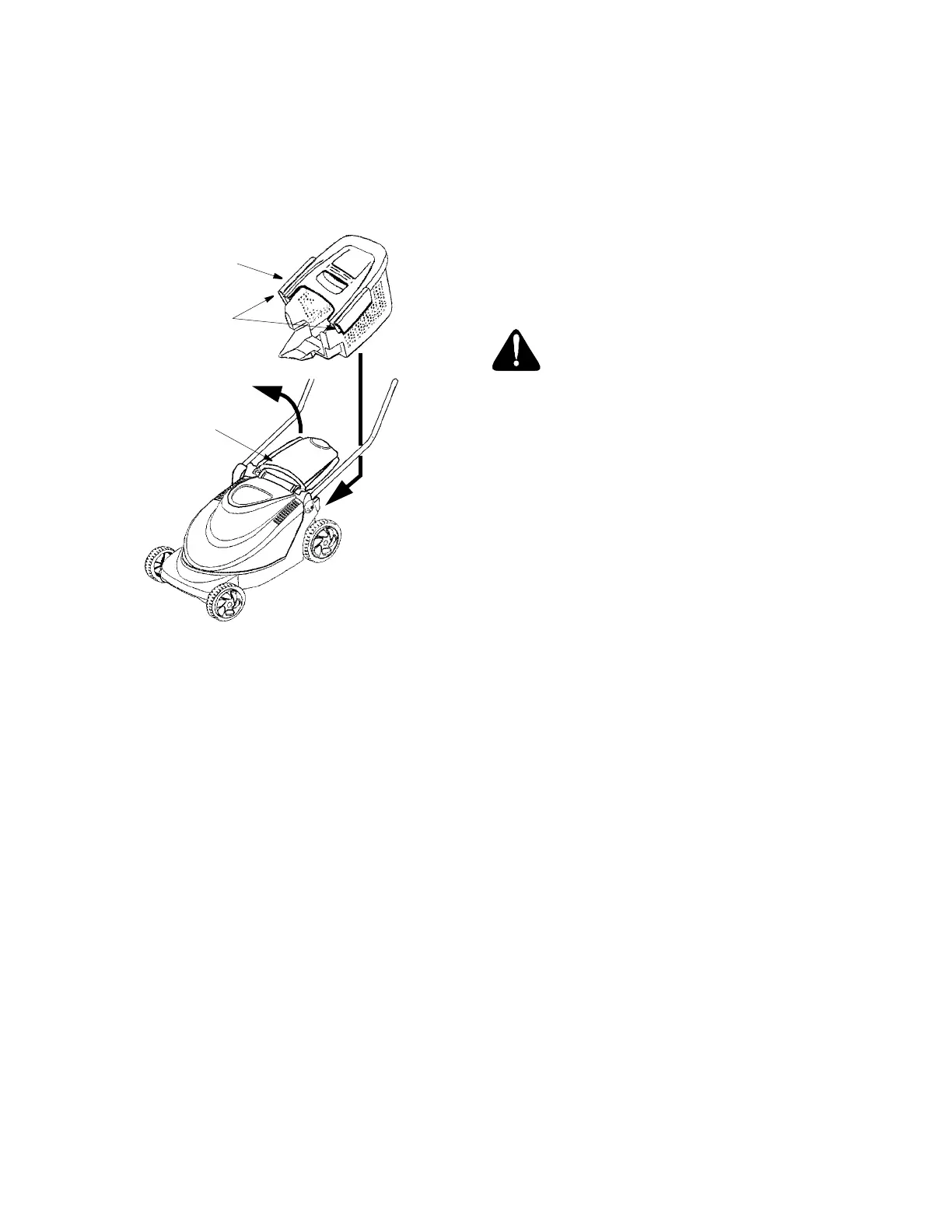

Figure 6
Attaching The Grass Catcher
• Lift the rear discharge door on the back of the
mower. Refer to Figure 6.
• Place the channels of the grass bag assembly over
the lower portion of the lower handle as shown in
Figure 6.
• Slide the assembly towards the mower until it rests
against the body of the mower.
• Release the rear discharge door.
To remove the grass catcher, lift the rear discharge
door on the mower. Lift the grass catcher up and off of
the lower handles. Release the rear discharge door.
WARNING: Do not operate this mower with the
rear discharge door open, unless the complete
grass catcher is properly mounted on the mower.
Rear Discharge
Grass Bag Assembly
Door
Channels
