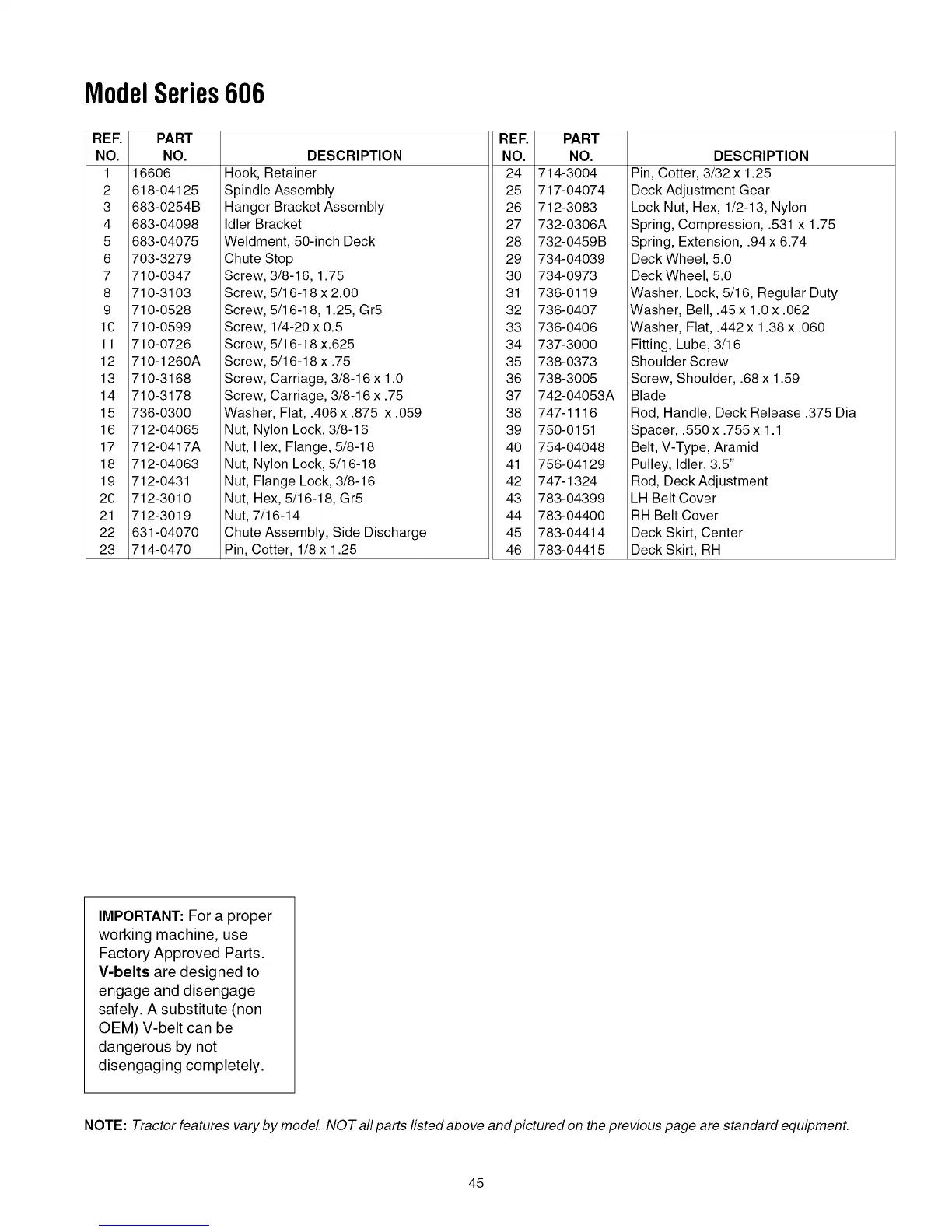

MTD 13AB606H730 - Page 45

ModelSeries606
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
PART
NO.
16606
618-04125
683-0254B
683-04098
683-04075
703-3279
710-0347
710-3103
710-0528
710-0599
710-0726
710-1260A
710-3168
710-3178
736-0300
712-04065
712-0417A
712-04063
712-0431
712-3010
712-3019
631-04070
714-0470
DESCRIPTION
Hook, Retainer
Spindle Assembly
Hanger Bracket Assembly
Idler Bracket
Weldment, 50-inch Deck
Chute Stop
Screw, 3/8-16, 1.75
Screw, 5/16-18 x 2.00
Screw, 5/16-18, 1.25, Gr5
Screw, 1/4-20 x 0.5
Screw, 5/16-18 x.625
Screw, 5/16-18 x .75
Screw, Carriage, 3/8-16 x 1.0
Screw, Carriage, 3/8-16 x .75
Washer, Flat, .406 x .875 x .059
Nut, Nylon Lock, 3/8-16
Nut, Hex, Flange, 5/8-18
Nut, Nylon Lock, 5/16-18
Nut, Flange Lock, 3/8-16
Nut, Hex, 5/16-18, Gr5
Nut, 7/16-14
Chute Assembly, Side Discharge
Pin, Cotter, 1/8 x 1.25
REF.
NO.
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
PART
NO.
714-3004
717-04074
712-3083
732-0306A
732-0459B
734-04039
734-0973
736-0119
736-0407
736-0406
737-3000
738-0373
738-3005
742-04053A
747-1116
750-0151
754-04048
756-04129
747-1324
783-04399
783-04400
783-04414
783-04415
DESCRIPTION
Pin, Cotter, 3/32 x 1.25
Deck Adjustment Gear
Lock Nut, Hex, 1/2-13, Nylon
Spring, Compression, .531 x 1.75
Spring, Extension, .94 x 6.74
Deck Wheel, 5.0
Deck Wheel, 5.0
Washer, Lock, 5/16, Regular Duty
Washer, Bell, .45 x 1.0 x .062
Washer, Flat, .442 x 1.38 x .060
Fitting, Lube, 3/16
Shoulder Screw
Screw, Shoulder, .68 x 1.59
Blade
Rod, Handle, Deck Release .375 Dia
Spacer, .550 x .755 x 1.1
Belt, V-Type, Aramid
Pulley, Idler, 3.5"
Rod, Deck Adjustment
LH Belt Cover
RH Belt Cover
Deck Skirt, Center
Deck Skirt, RH
IMPORTANT:For a proper
working machine, use
Factory Approved Parts.
V-belts are designed to
engage and disengage
safely. A substitute (non
OEM) V-belt can be
dangerous by not
disengaging completely.
NOTE: Tractor features vary by model NOT all parts listed above and pictured on the previous page are standard equipment.
45
