ENGINE REMOVAL
INSTALLATION
If the engine is removed from the tractor the following
steps should be followed for the removal and installation of
the engine.
REMOVAL
1. Follow the steps to remove the Power Take Off belts
shown in Fig. 6.
2. Remove the four engine bolts holding the engine to the
frame of the tractor.
3. Remove the hood brace from the front grille to the dash
board.
4. Remove the three wires to the starter-generator (red wire
to the L.H. terminal and small black wire and large black
wire to the R.H. terminal).
5. Shut off the gas valve and disconnect the gas hose.
6. Disconnect the throttle and choke wires to the engine.
7. Lift out the engine.
1. Set the engine in position and tighten the four engine
bolts finger tight.
2. Attach the Power Take Off belts, (see Fig. 6)
3. Attach hood brace and wiring.
4. Attach choke and throttle wires to engine.
5. Attach gas line and open valve.
6. Tighten engine bolts.

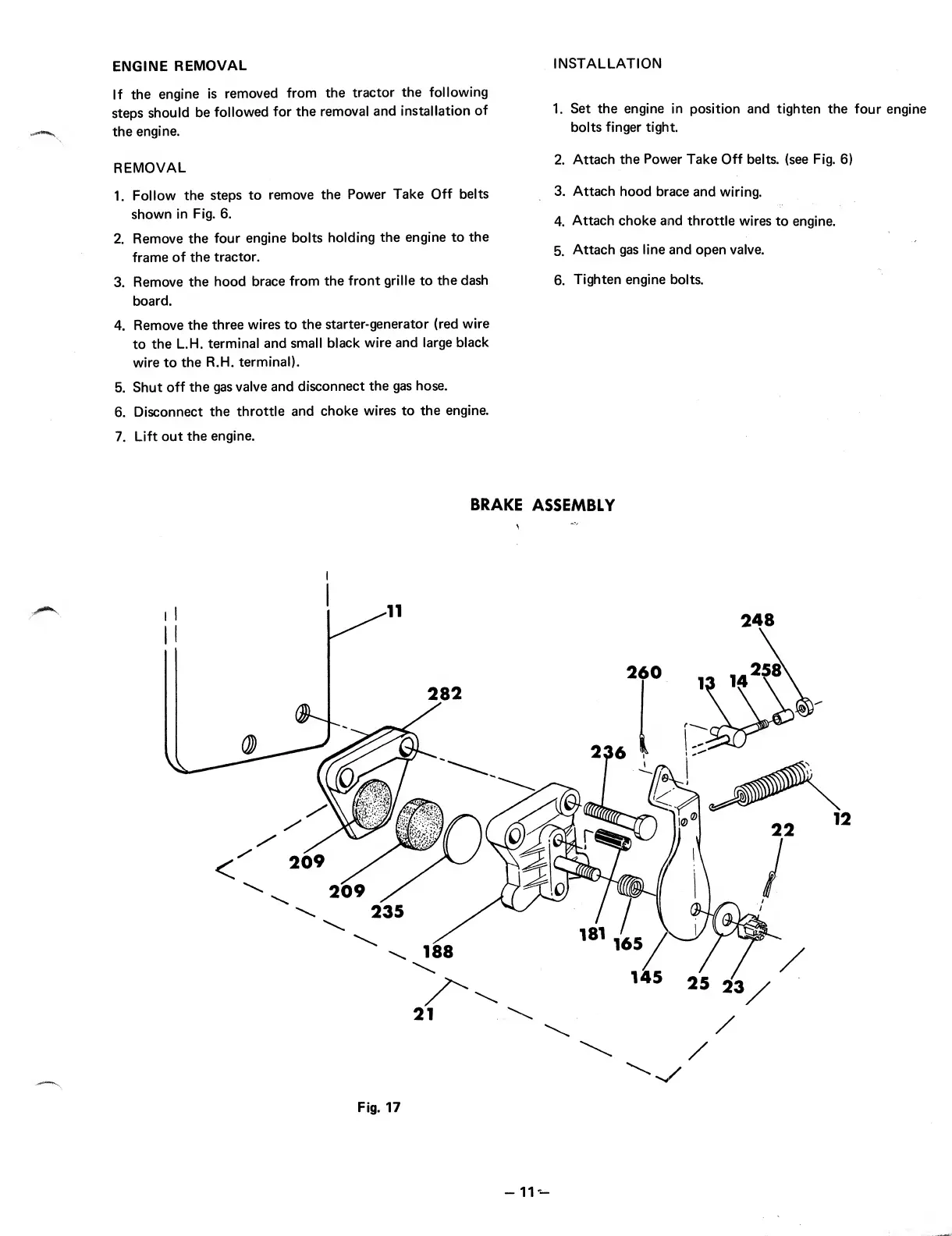

BRAKE ASSEMBLY
Fig. 17
- 11 -
