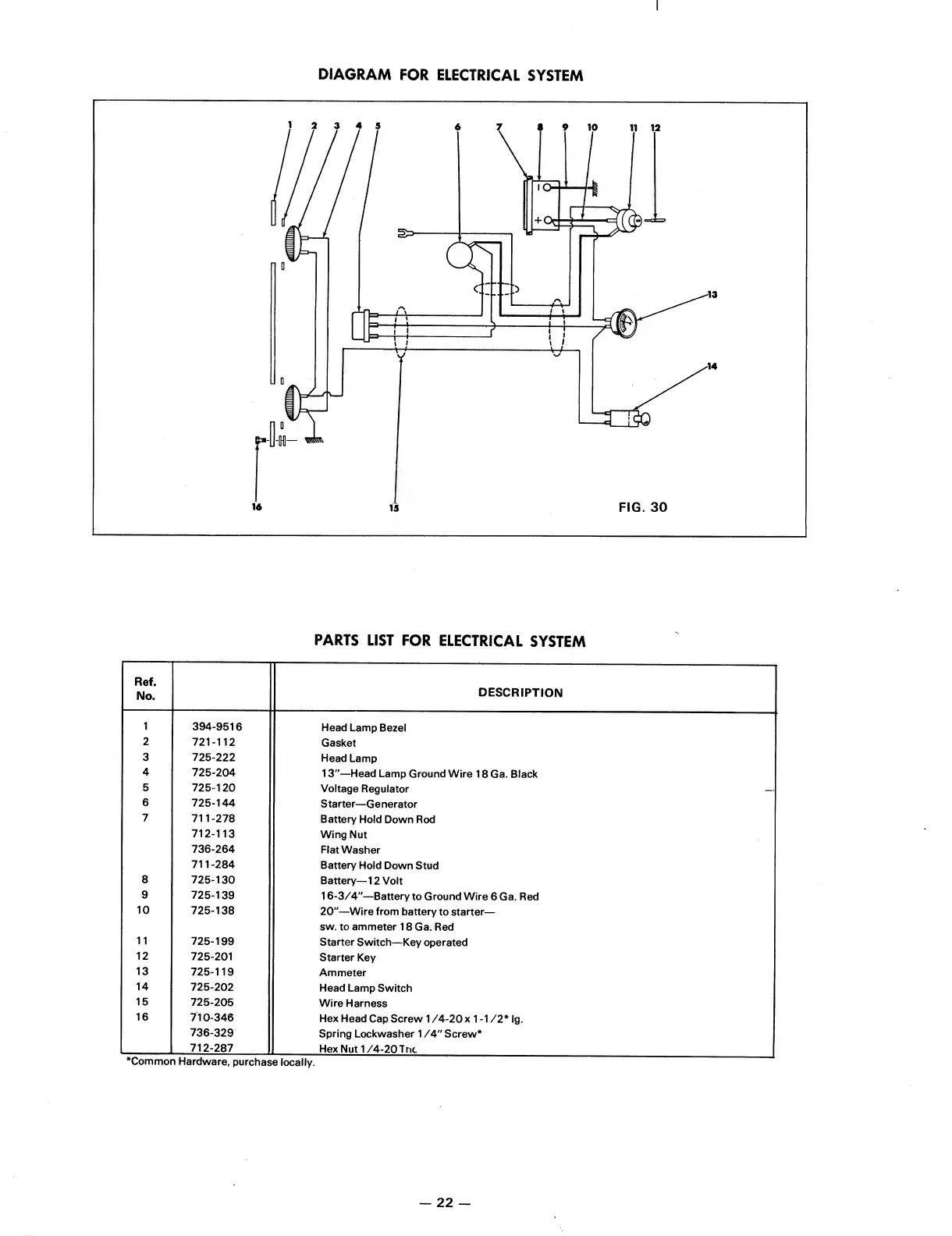

DIAGRAM FOR ELECTRICAL SYSTEM
PARTS LIST FOR ELECTRICAL SYSTEM
Ref.
No.
DESCRIPTION
1
394-9516
Head Lamp Bezel
2
721-112
Gasket
3
725-222
Head Lamp
4
725-204
13"—Head Lamp Ground Wire 18 Ga. Black
5
725-120
Voltage Regulator
6
725-144
Starter—Generator
7
711-278
Battery Hold Down Rod
712-113
Wing Nut
736-264
Flat Washer
711-284
Battery Hold Down Stud
8
725-130
Battery—12 Volt
9
725-139
16-3/4"—Battery to Ground Wire 6 Ga. Red
10
725-138
20"—Wire from battery to starter—
sw. to ammeter 18 Ga. Red
11
725-199
Starter Switch—Key operated
12
725-201
Starter Key
13
725-119
Ammeter
14
725-202
Head Lamp Switch
15
725-205
Wire Harness
16
710-346
Hex Head Cap Screw 1 /4-20 x 1 -1 /2* Ig.
736-329
Spring Lockwasher 1 /4" Screw*
712-287
Hex Nut 1/4-20 The
•Common Hardware, purchase locally.
