MTD 141-760 - Page 26

I
RIGHT ANGLE DRIVE FOR TRACTOR
PEERLESS
RA-208-P91
PEERLESS MODEL
Parts and service available
through all authorized Tecumseh,
Lauson Power Products Service
Dealers. Check the “Yellow
Pages" of your telephone direc¬
tory under “Engines—Gasoline."

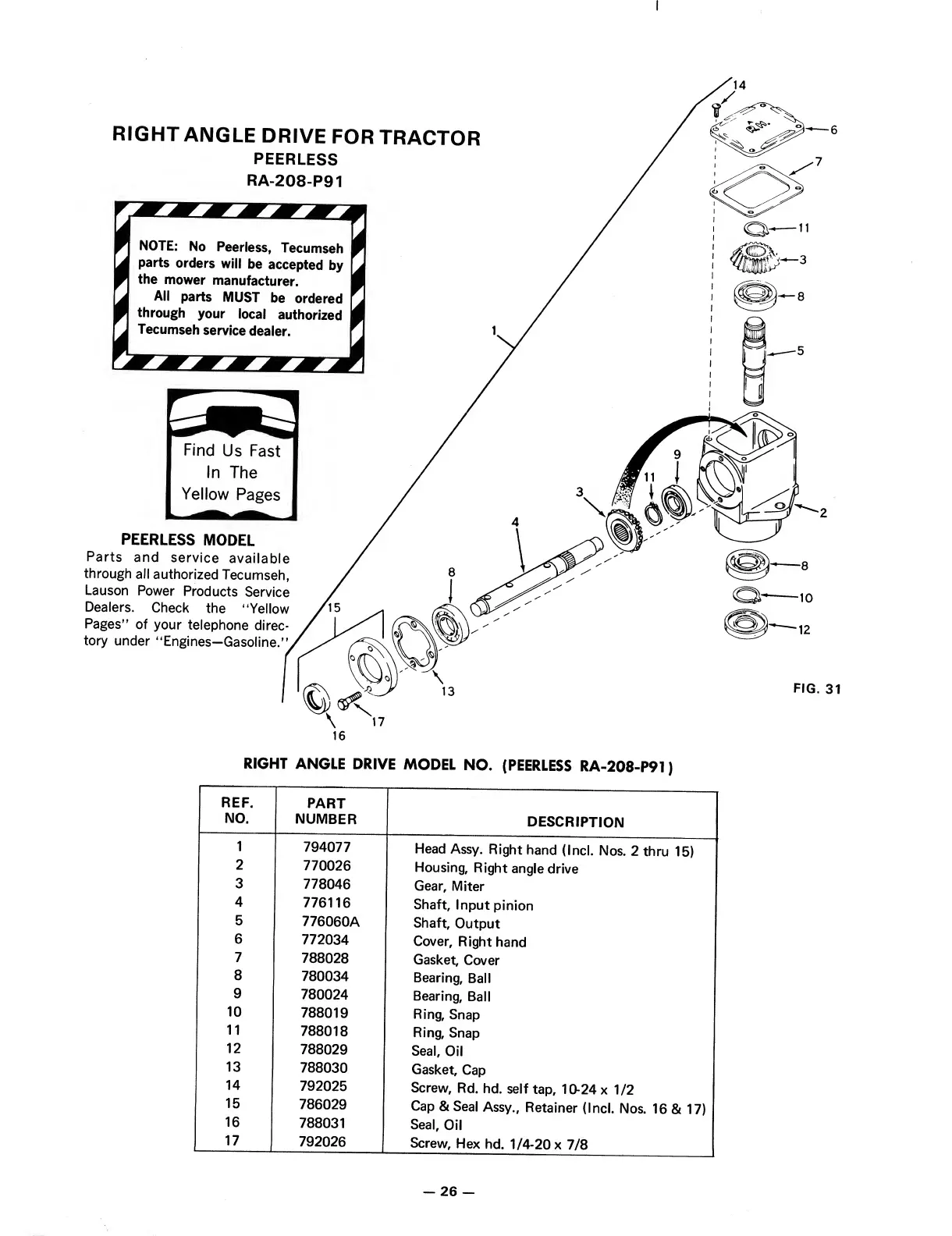

FIG. 31
RIGHT ANGLE DRIVE MODEL NO. (PEERLESS RA-208-P91)
REF.
NO.
PART
NUMBER
DESCRIPTION
1
794077
Head Assy. Right hand (Incl. Nos. 2 thru 15)
2
770026
Housing, Right angle drive
3
778046
Gear, Miter
4
776116
Shaft, Input pinion
5
776060A
Shaft, Output
6
772034
Cover, Right hand
7
788028
Gasket, Cover
8
780034
Bearing, Ball
9
780024
Bearing, Bali
10
788019
Ring, Snap
11
788018
Ring, Snap
12
788029
Seal, Oil
13
788030
Gasket, Cap
14
792025
Screw, Rd. hd. self tap, 10-24 x 1/2
15
786029
Cap & Seal Assy., Retainer (Incl. Nos. 16 & 17)
16
788031
Seal, Oil
17
792026
Screw, Hex hd. 1/4-20 x 7/8
— 26 —
