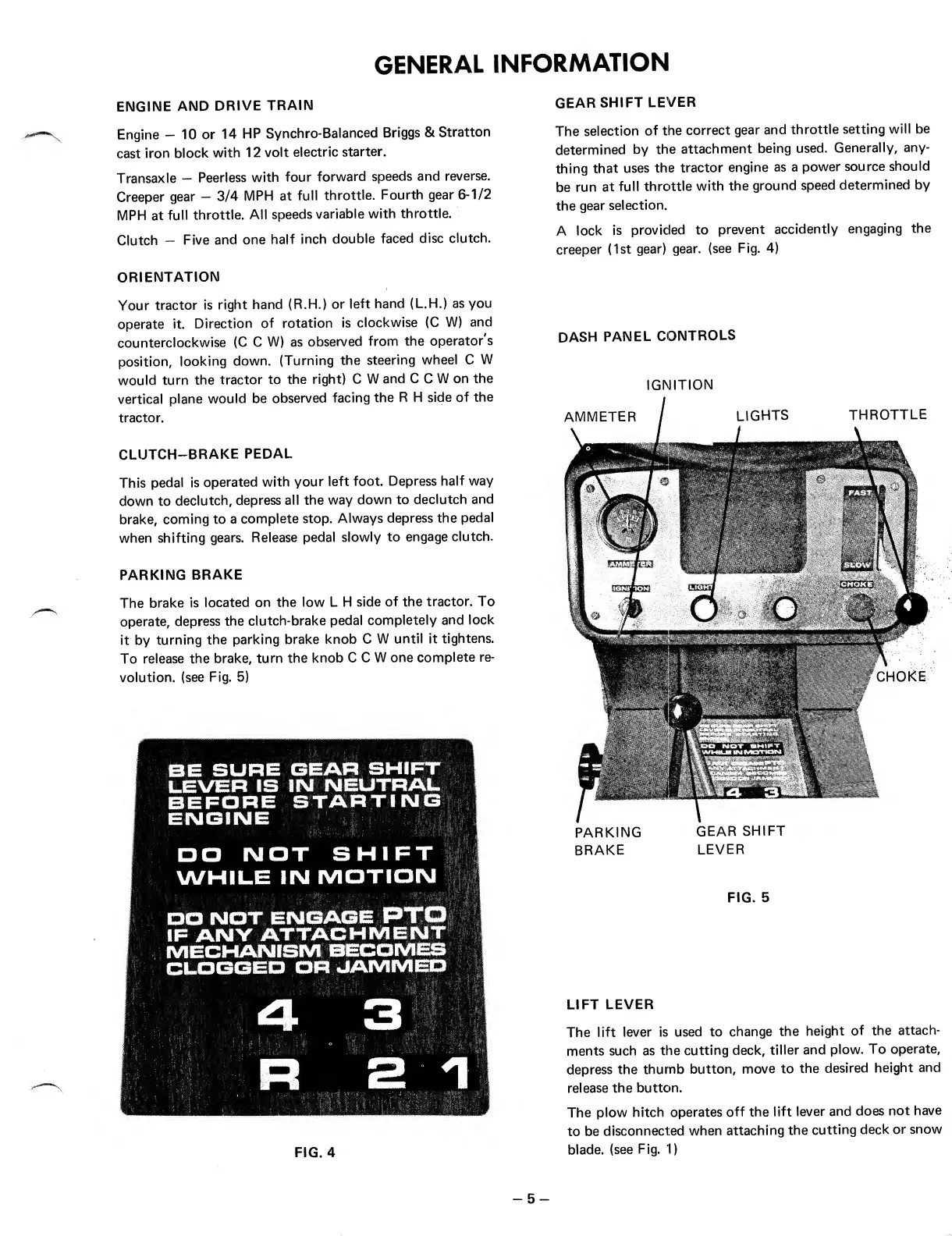

GENERAL
INFORMATION
ENGINE
AND
DRIVE
TRAIN
Engine
-
10
or
14
HP
Synchro-Balanced
Briggs
&
Stratton
cast
iron
block
with
12
volt
electric
starter.
Transaxle
-
Peerless
with
four
forward
speeds
and
reverse.
Creeper
gear
-
3/4
MPH
at
full
throttle.
Fourth
gear
6-1/2
MPH
at
full
throttle.
All
speeds
variable
with
throttle.
Clutch
Five
and
one
half
inch
double
faced
disc
clutch.
ORIENTATION
Your
tractor
is
right
hand
(R.H.)
or
left
hand
(L.H.)
as
you
operate
it.
Direction
of
rotation
is
clockwise
(C
W)
and
counterclockwise
(C
C
W)
as
observed
from
the
operator's
position,
looking
down.
(Turning
the
steering
wheel
C
W
would
turn
the
tractor
to
the
right)
C
W
and
C
C
W
on
the
vertical
plane
would
be
observed
facing
the
R
H
side
of
the
tractor.
CLUTCH--BRAKE
PEDAL
This
pedal
is
operated
with
your
left
foot.
Depress
half
way
down
to
declutch,
depress
all
the
way
down
to
declutch
and
brake,
coming
to
a
complete
stop.
Always
depress
the
pedal
when
shifting
gears.
Release
pedal
slowly
to
engage
clutch.
PARKING
BRAKE
The
brake
is
located
on
the
low
L
H
side
of
the
tractor.
To
operate,
depress
the
clutch-brake
pedal
completely
and
lock
it
by
turning
the
parking
brake
knob
C
W
until
It
tightens.
To
release
the
brake,
turn
the
knob
C
C
W
one
complete
re¬
volution.
(see
Fig.
5)
BE
SUnE:.GEAtt:rSHiRTRie
LEVER
IS
IIM
NEUTRAL
B^E
FORE:::
STAR
T:i
NOi*
;
ENQINE
f
v;
DO
MOT
SHIFT
WHILE
IN
MOTIOM
;
:
OOf
NOTi
ENlil^S’S^ITTiBfi^
:-lF
ANTj:ATTAO:WIVIEMT*S
MECHANISIVi
BECOMES
CLOOOEO
OR
JAMMED
4
3
FIG.
4
GEAR
SHIFT
LEVER
The
selection
of
the
correct
gear
and
throttle
setting
will
be
determined
by
the
attachment
being
used.
Generally,
any¬
thing
that
uses
the
tractor
engine
as
a
power
source
should
be
run
at
full
throttle
with
the
ground
speed
determined
by
the
gear
selection.
A
lock
is
provided
to
prevent
accidently
engaging
the
creeper
(1st
gear)
gear,
(see
Fig.
4)
DASH
PANEL
CONTROLS
IGNITION
AMMETER
LIGHTS
PARKING
GEAR
SHIFT
BRAKE
LEVER
THROTTLE
CHOKE
FIG.
5
LIFT
LEVER
The
lift
lever
is
used
to
change
the
height
of
the
attach¬
ments
such
as
the
cutting
deck,
tiller
and
plow.
To
operate,
depress
the
thumb
button,
move
to
the
desired
height
and
release
the
button.
The
plow
hitch
operates
off
the
lift
lever
and
does
not
have
to
be
disconnected
when
attaching
the
cutting
deck
or
snow
blade,
(see
Fig.
1)
-
5
-
