Put the throttle control lever located on the engine in the 5.
“FAST” or “Rabbit” position.
Move the Choke into the Choke position.6.
Put one hand on the fuel tank to stabilize the tiller when 7.
pulling the starter rope handle. Then use the recoil starter
to start the engine. When the engine starts, gradually move
the choke lever to the “CHOKE OFF” position.
Use the “FAST” throttle speed setting when tilling.8.
Stopping the Engine
To stop the wheels and tines, release the Forward Clutch 1.
Bail.
To stop the engine, put the throttle control lever in the 2.
““STOP” position.
To Engage Drive & Tines
For forward motion of the wheels and power to the tines 1.
pull the Forward Clutch Bail up against the handlebar.
Release the bail to stop the forward motion of wheels and
tines.
When tilling, relax and let the wheels pull the machine 2.
while the tines dig. Walk behind and a little to one side of
the tiller. Use one hand, yet keep a light — but secure —
grip on the handlebar while keeping your arm loose.
Let the tiller move at its own pace and do not push down 3.
on the handlebars to try and force the tines to dig deeper
— this takes weight off the wheels and reduces traction.
WARNING! Do not push down on the handlebars
to try to make the tiller till more deeply. This
prevents the wheels from holding the tiller back and
can allow the tines to rapidly propel the tiller
forward, which could result in loss of control,
property damage, or personal injury.
To move in reverse:
Release the forward Clutch Bail. Then lift the a.
handlebar until the tines are off the ground.
Pull back on the Reverse Lever, and walk backwards b.
with the machine
Note: In reverse mode, the tines will reverse
rotation.
If longer distances need to be covered in reverse, c.
shut off the engine, then place the two wheels in
FREEWHEEL.
Turning the Tiller
Practice turning the tiller in a level, open area. Be very 1.
careful to keep your feet and legs away from the tines.
To begin a turn, lift the handlebars until the tines are out 2.
of the ground and the engine and tines are balanced over
the wheels.
With the tiller balanced, push sideways on the handlebar to 3.
steer in the direction of the turn. After turning, slowly lower
the tines into the soil to resume tilling.
Setting The Depth
Tilling depth is controlled by the depth stake which can be
adjusted to five different settings. Adjust the side shields as you
adjust the depth stake.
WARNING: Be certain the spark plug wire is
disconnected and grounded against the engine
when performing any adjustments.
When using the tiller for the first time, use the second •
adjustment hole from the top (1” of tilling depth).
When breaking up sod and for shallow cultivation, use the •
setting which gives 1” of tilling depth (second hole from
the top). Place the side shields in their lowest position.
For further depth, raise the depth stake and side shields •
and also make one or two more passes over the area.
When tilling loose soil, the depth stake may be raised to its •
highest position (use bottom adjustment hole) to give the
deepest tilling depth. Raise the side shields to their highest
position.
To transport tiller, lower the depth stake (use top •
adjustment hole).
To adjust the depth stake, pull back on the depth adjustment
bracket (A) and push up or down (B) until the bracket reaches the
desired position, see Fig. 5-1, then release the bracket (C).
To adjust the side shields, remove the wing nuts. Move the side
shield to the desired position and replace the wing nuts. Tighten
securely. See Fig. 5-2.

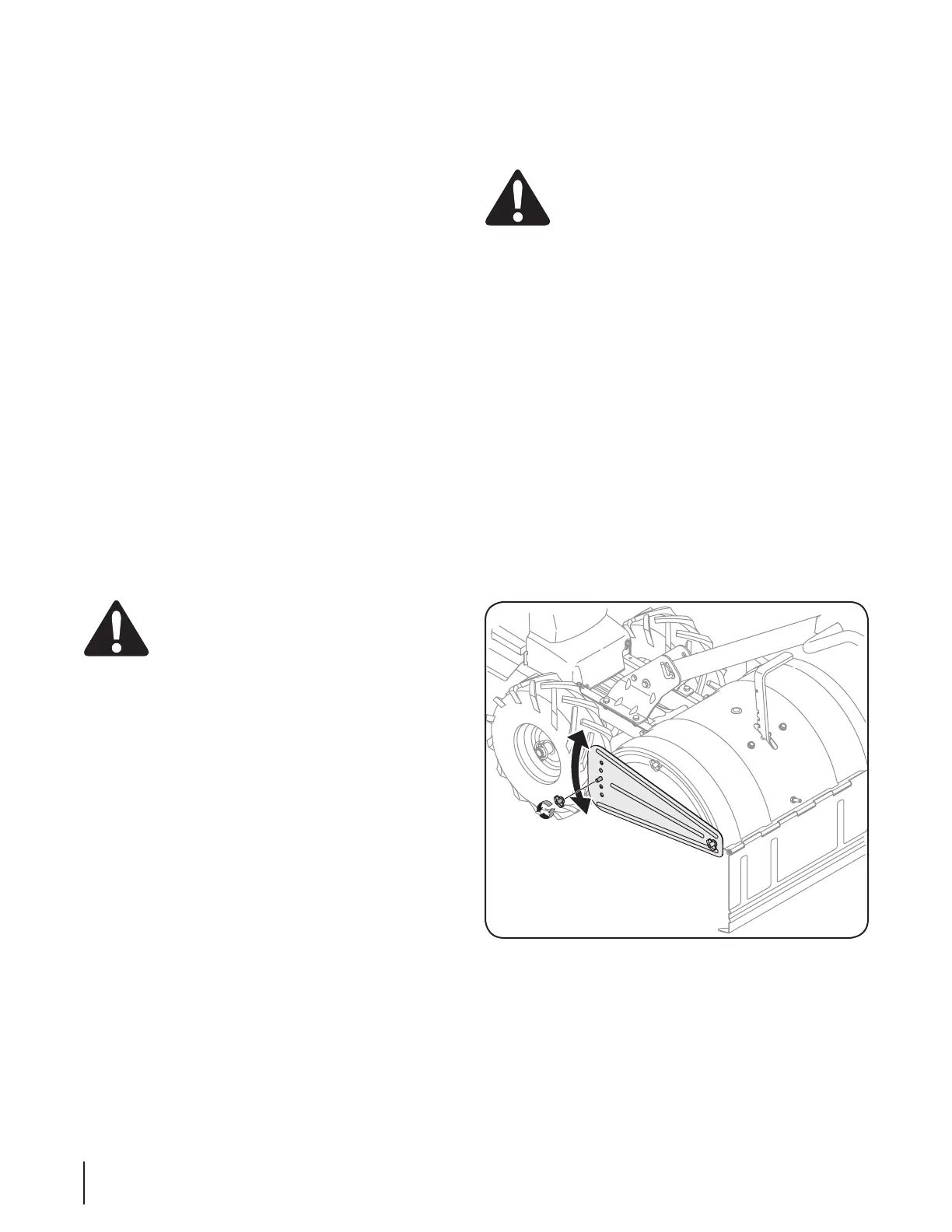

Figure 5-2
12 SE c T i O N 5— OP E R A T i O N
