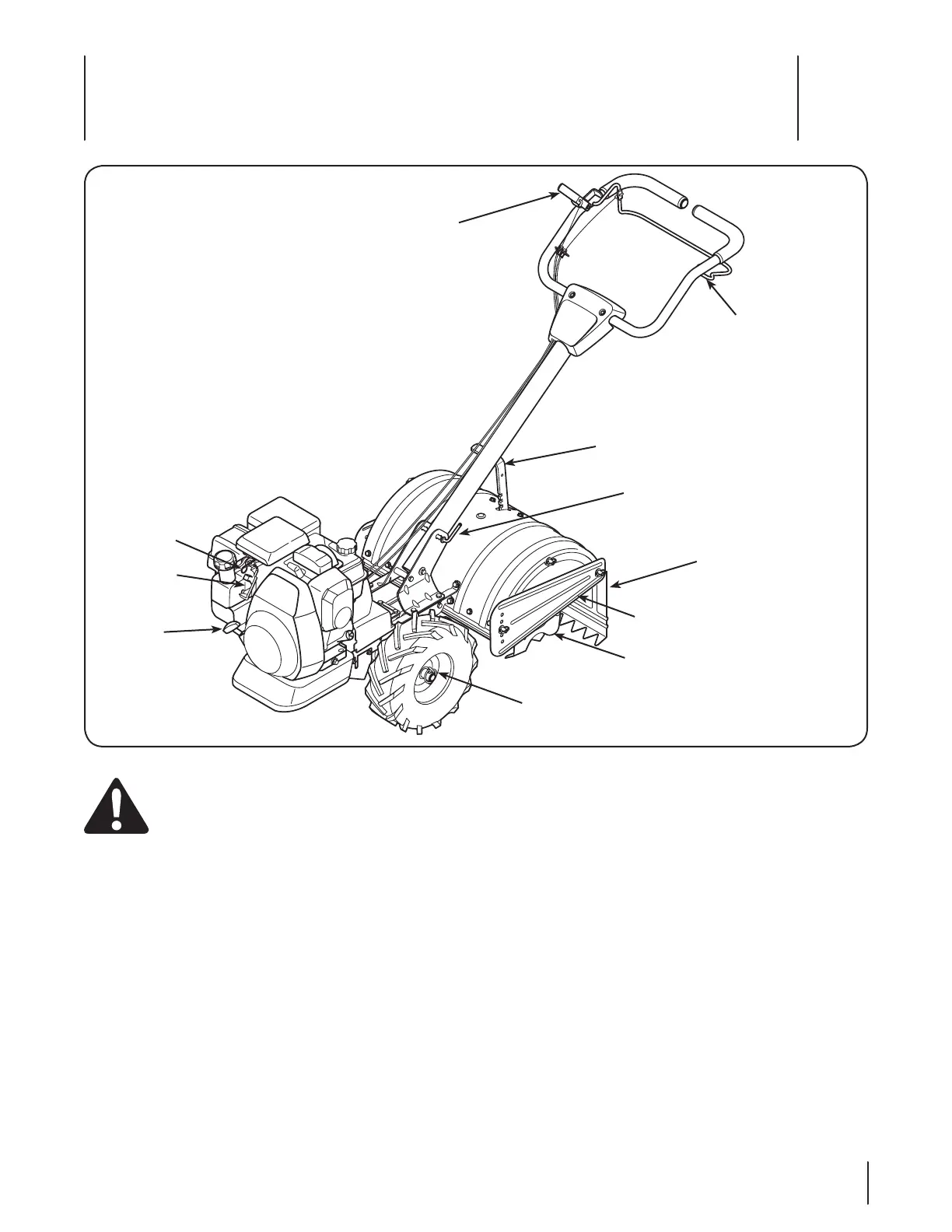

Figure 4-1
Recoil Starter Handle
This handle is used to start the engine.
Throttle Control
The throttle control is located on the front of the engine. It
regulates the speed of the engine and will shut off the engine
when moved into the STOP position.
Choke Control
The choke control is located on the front of the engine. It is used
to enrich the fuel mixture in the carburetor when starting a cold
engine. See separate engine manual for further information.
NOTE: This unit was shipped WITHOUT gasoline or oil in the
engine. Oil is included in the plastic literature bag packed in
with the unit. Add the oil as directed in the Setup section. Check
the oil level before each operation to ensure adequate oil is in
the engine. For further instructions, refer to the separate engine
manual packed with your unit.
Forward Clutch Bail
& Tine Engagement
Reverse Handle
Tines
Side Shield
Rear Tine Shield
Wheel Drive Pin
Starter
Handle
Depth Regulator
Throttle
Handle Height
Adjustment
WARNING! Read and follow all safety rules and instructions in this manual, including the entire Operation section,
before attempting to operate this machine. Failure to comply with all safety rules and instructions may result in personal
injury.
Choke
Controls and Features
