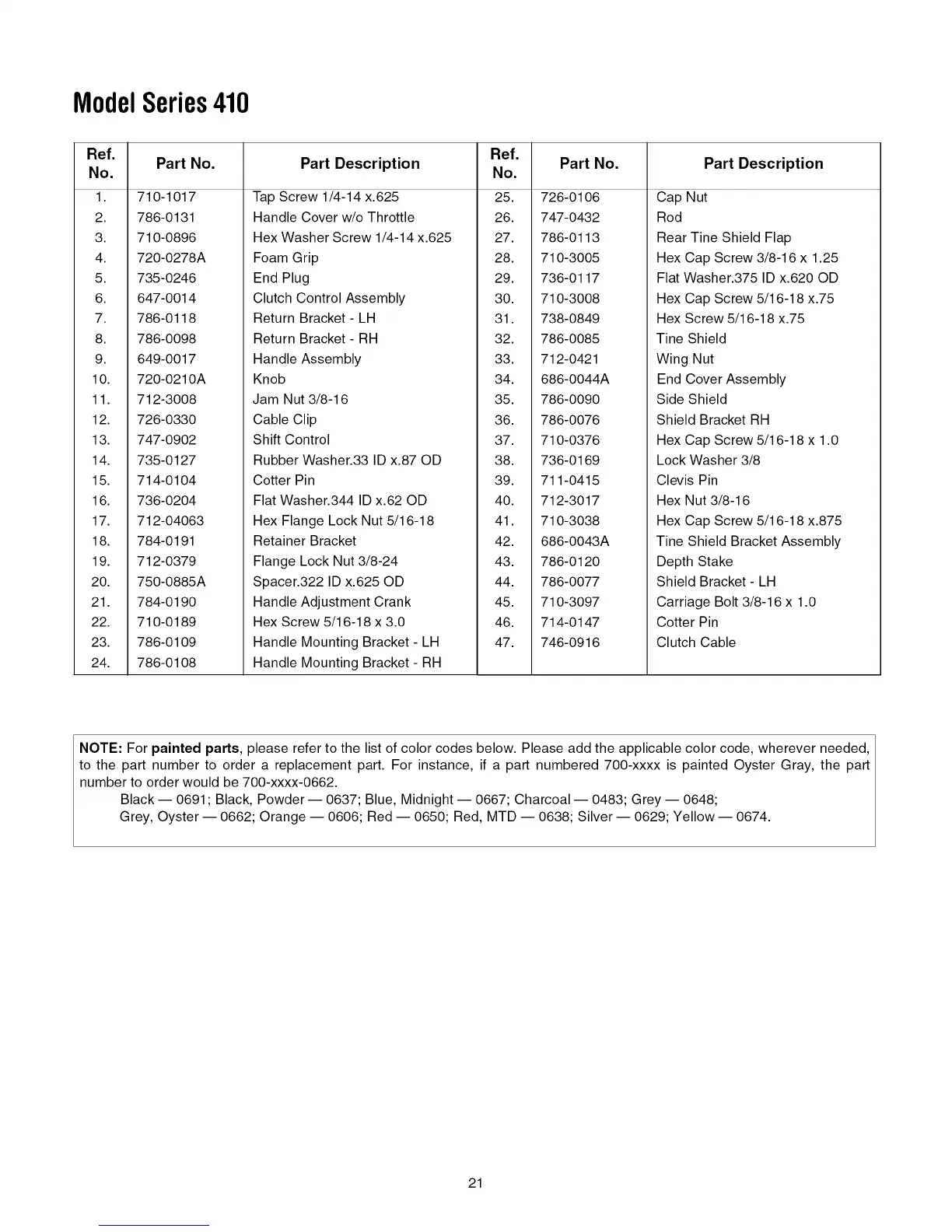

MTD 21AA413H700 - Page 21

ModelSeries410
Ref.
No.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
Part No.
710-1017
786-0131
710-0896
720-0278A
735-0246
647-0014
786-0118
786-0098
649-0017
720-0210A
712-3008
726-0330
747-0902
735-0127
714-0104
736-0204
712-04063
784-0191
712-0379
750-0885A
784-0190
710-0189
786-0109
786-0108
Ref.
Part Description No. Part No.
Tap Screw 1/4-14 x.625 25. 726-0106
Handle Cover w/o Throttle 26. 747-0432
Hex Washer Screw 1/4-14 x.625 27. 786-0113
Foam Grip 28. 710-3005
End Plug 29. 736-0117
Clutch Control Assembly 30. 710-3008
Return Bracket - LH 31. 738-0849
Return Bracket - RH 32. 786-0085
Handle Assembly 33. 712-0421
Knob 34. 686-0044A
Jam Nut 3/8-16 35. 786-0090
Cable Clip 36. 786-0076
Shift Control 37. 710-0376
Rubber Washer.33 ID x.87 OD 38. 736-0169
Cotter Pin 39. 711-0415
Flat Washer.344 ID x.62 OD 40. 712-3017
Hex Flange Lock Nut 5/16-18 41. 710-3038
Retainer Bracket 42. 686-0043A
Flange Lock Nut 3/8-24 43. 786-0120
Spacer.322 ID x.625 OD 44. 786-0077
Handle Adjustment Crank 45. 710-3097
Hex Screw 5/16-18 x 3.0 46. 714-0147
Handle Mounting Bracket - LH 47. 746-0916
Handle Mounting Bracket - RH
Part Description
Cap Nut
Rod
Rear Tine Shield Flap
Hex Cap Screw 3/8-16 x 1.25
Flat Washer.375 ID x.620 OD
Hex Cap Screw 5/16-18 x.75
Hex Screw 5/16-18 x.75
Tine Shield
Wing Nut
End Cover Assembly
Side Shield
Shield Bracket RH
Hex Cap Screw 5/16-18 x 1.0
Lock Washer 3/8
Clevis Pin
Hex Nut 3/8-16
Hex Cap Screw 5/16-18 x.875
Tine Shield Bracket Assembly
Depth Stake
Shield Bracket- LH
Carriage Bolt 3/8-16 x 1.0
Cotter Pin
Clutch Cable
NOTE: For painted parts, please refer to the list of color codes below. Please add the applicable color code, wherever needed,
to the part number to order a replacement part. For instance, if a part numbered 700-xxxx is painted Oyster Gray, the part
number to order would be 700-xxxx-0662.
Black -- 0691 ; Black, Powder -- 0637; Blue, Midnight -- 0667; Charcoal -- 0483; Grey -- 0648;
Grey, Oyster -- 0662; Orange -- 0606; Red -- 0650; Red, MTD -- 0638; Silver -- 0629; Yellow -- 0674.
21
