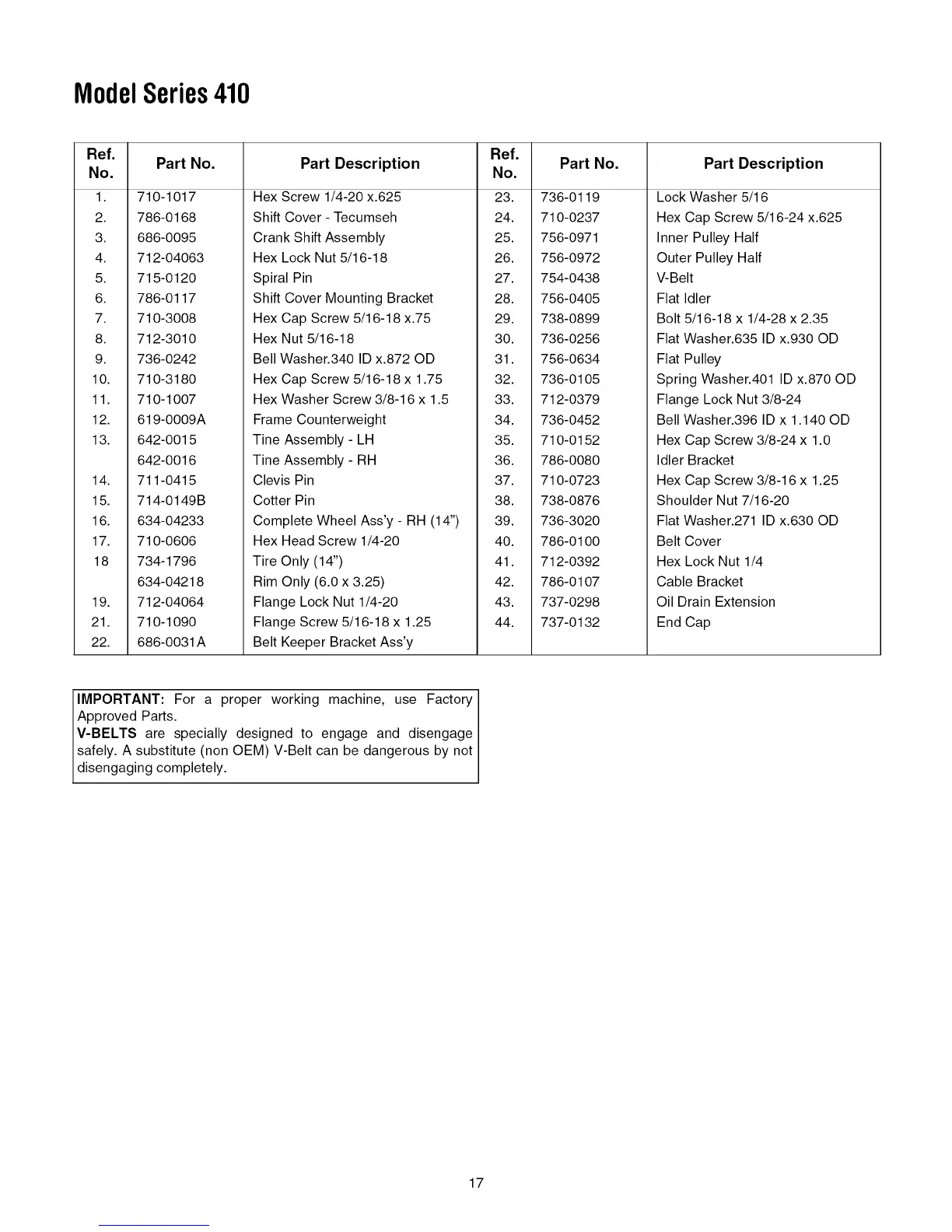

MTD 21AA413J052 - Page 17

ModelSeries410
Ref.
Part No.
No.
1. 710-1017
2. 786-0168
3. 686-0095
4. 712-04063
5. 715-0120
6. 786-0117
7. 710-3008
8. 712-3010
9. 736-0242
10. 710-3180
11. 710-1007
12. 619-0009A
13. 642-0015
642-0016
14. 711-0415
15. 714-0149B
16. 634-04233
17. 710-0606
18 734-1796
634-04218
19. 712-04064
21. 710-1090
22. 686-0031A
Part Description
Hex Screw 1/4-20 x.625
Shift Cover - Tecumseh
Crank Shift Assembly
Hex Lock Nut 5/16-18
Spiral Pin
Shift Cover Mounting Bracket
Hex Cap Screw 5/16-18 x.75
Hex Nut 5/16-18
Bell Washer.340 ID x.872 OD
Hex Cap Screw 5/16-18 x 1.75
Hex Washer Screw 3/8-16 x 1.5
Frame Counterweight
Tine Assembly - LH
Tine Assembly - RH
Clevis Pin
Cotter Pin
Complete Wheel Ass'y - RH (14")
Hex Head Screw 1/4-20
Tire Only (14")
Rim Only (6.0 x 3.25)
Flange Lock Nut 1/4-20
Flange Screw 5/16-18 x 1.25
Belt Keeper Bracket Ass'y
Ref.
No.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
Part No.
736-0119
710-0237
756-0971
756-0972
754-0438
756-0405
738-0899
736-0256
756-0634
736-0105
712-0379
736-0452
710-0152
786-0080
710-0723
738-0876
736-3020
786-0100
712-0392
786-0107
737-0298
737-0132
Part Description
Lock Washer 5/16
Hex Cap Screw 5/16-24 x.625
Inner Pulley Half
Outer Pulley Half
V-Belt
Flat Idler
Bolt 5/16-18 x 1/4-28 x 2.35
Flat Washer.635 ID x.930 OD
Flat Pulley
Spring Washer.401 ID x.870 OD
Flange Lock Nut 3/8-24
Bell Washer.396 ID x 1.140 OD
Hex Cap Screw 3/8-24 x 1.0
Idler Bracket
Hex Cap Screw 3/8-16 x 1.25
Shoulder Nut 7/16-20
Flat Washer.271 ID x.630 OD
Belt Cover
Hex Lock Nut 1/4
Cable Bracket
Oil Drain Extension
End Cap
IMPORTANT: For a proper working machine, use Factory
Approved Parts.
V-BELTS are specially designed to engage and disengage
safely. A substitute (non OEM) V-Belt can be dangerous by not
disengaging completely.
17
