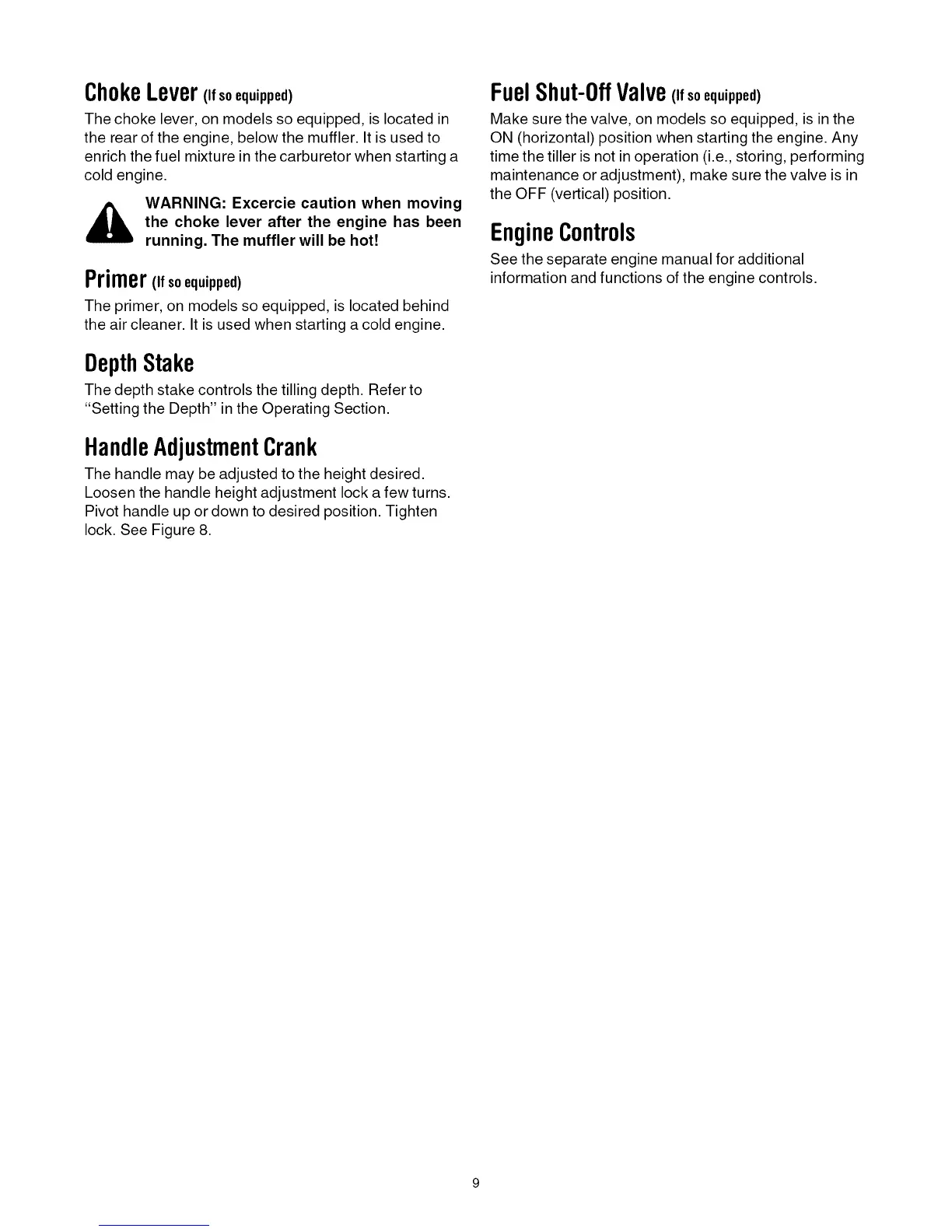

ChokeLever(If s0equipped)
The choke lever, on models so equipped, is located in
the rear of the engine, below the muffler. It is used to
enrich the fuel mixture in the carburetor when starting a
cold engine.
,_ WARNING: Excercie caution when moving
the choke lever after the engine has been
running. The muffler will be hot!
Primer(if soequipped)
The primer, on models so equipped, is located behind
the air cleaner. It is used when starting a cold engine.
DepthStake
The depth stake controls the tilling depth. Refer to
"Setting the Depth" in the Operating Section.
HandleAdjustmentCrank
The handle may be adjusted to the height desired.
Loosen the handle height adjustment lock a few turns.
Pivot handle up or down to desired position. Tighten
lock. See Figure 8.
FuelShut-OffValve(_fsoequipped)
Make sure the valve, on models so equipped, is inthe
ON (horizontal) position when starting the engine. Any
time the tiller is not inoperation (i.e., storing, performing
maintenance or adjustment), make sure the valve is in
the OFF (vertical) position.
EngineControls
See the separate engine manual for additional
informationand functions of the engine controls.
