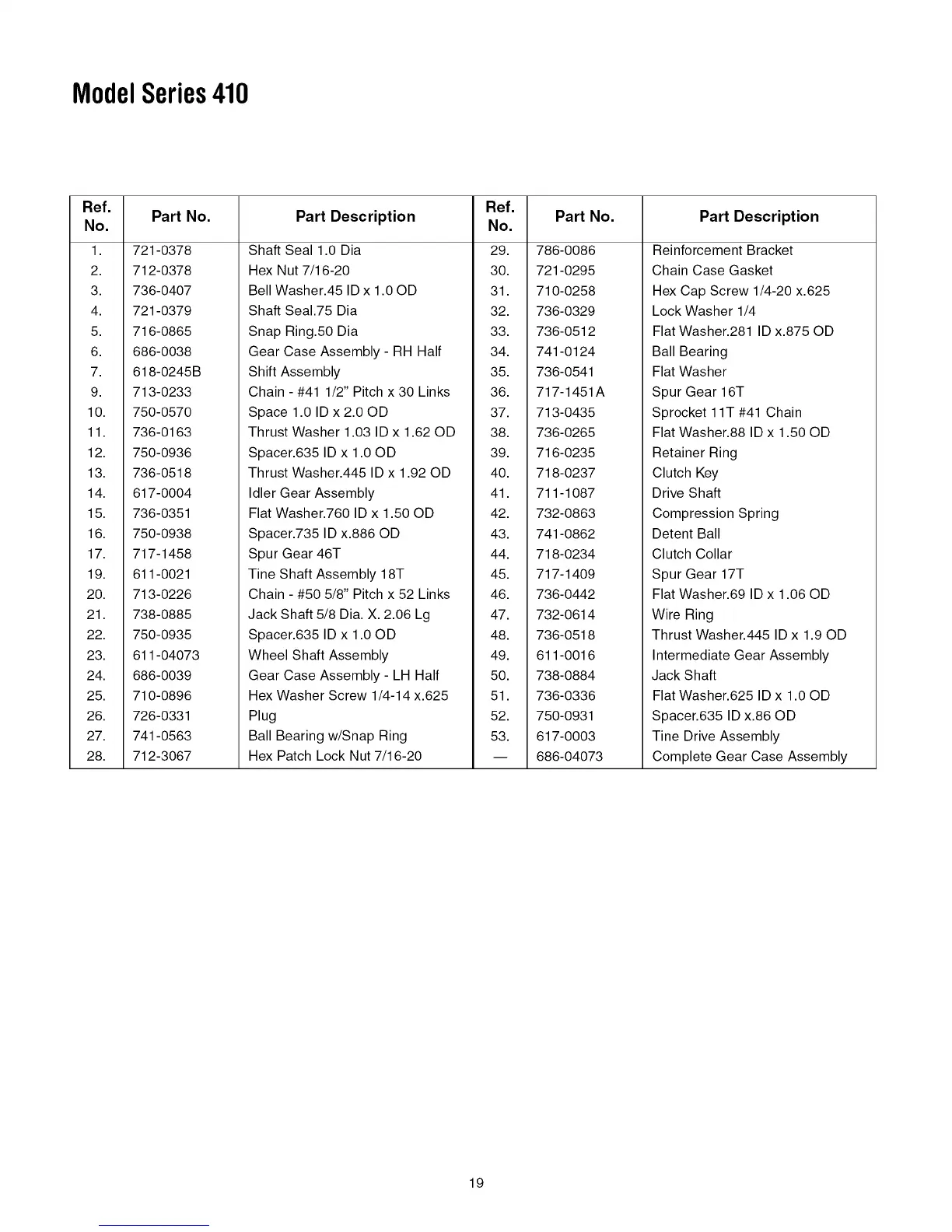

ModelSeries410
Ref.
Part No.
No.
1. 721-0378
2. 712-0378
3. 736-0407
4. 721-0379
5. 716-0865
6. 686-0038
7. 618-0245B
9. 713-0233
10. 750-0570
11. 736-0163
12. 750-0936
13. 736-0518
14. 617-0004
15. 736-0351
16. 750-0938
17. 717-1458
19. 611-0021
20. 713-0226
21. 738-0885
22. 750-0935
23. 611-04073
24. 686-0039
25. 710-0896
26. 726-0331
27. 741-0563
28. 712-3067
Part Description
Shaft Seal 1.0 Dia
Hex Nut 7/16-20
Bell Washer.45 ID x 1.00D
Shaft Seal.75 Dia
Snap Ring.50 Dia
Gear Case Assembly - RH Half
Shift Assembly
Chain - #41 1/2" Pitch x 30 Links
Space 1.0 ID x 2.00D
Thrust Washer 1.03 ID x 1.62 OD
Spacer.635 ID x 1.00D
Thrust Washer.445 ID x 1.92 OD
Idler Gear Assembly
Flat Washer.760 ID x 1.50 OD
Spacer.735 ID x.886 OD
Spur Gear 46T
Tine Shaft Assembly 18T
Chain - #50 5/8" Pitch x 52 Links
Jack Shaft 5/8 Dia. X. 2.06 Lg
Spacer.635 ID x 1.00D
Wheel Shaft Assembly
Gear Case Assembly - LH Half
Hex Washer Screw 1/4-14 x.625
Plug
Ball Bearing w/Snap Ring
Hex Patch Lock Nut 7/16-20
Ref.
No.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
i
Part No.
786-0086
721-0295
710-0258
736-0329
736-0512
741-0124
736-0541
717-1451A
713-0435
736-0265
716-0235
718-0237
711-1087
732-0863
741-0862
718-0234
717-1409
736-0442
732-0614
736-0518
611-0016
738-0884
736-0336
750-0931
617-0003
686-04073
Part Description
Reinforcement Bracket
Chain Case Gasket
Hex Cap Screw 1/4-20 x.625
Lock Washer 1/4
Flat Washer.281 ID x.875 OD
Ball Bearing
Flat Washer
Spur Gear 16T
Sprocket 11T #41 Chain
Flat Washer.88 ID x 1.50 OD
Retainer Ring
Clutch Key
Drive Shaft
Compression Spring
Detent Ball
Clutch Collar
Spur Gear 17T
Flat Washer.69 ID x 1.06 OD
Wire Ring
Thrust Washer.445 ID x 1.90D
Intermediate Gear Assembly
Jack Shaft
Flat Washer.625 ID x 1.00D
Spacer.635 ID x.86 OD
Tine Drive Assembly
Complete Gear Case Assembly
19
