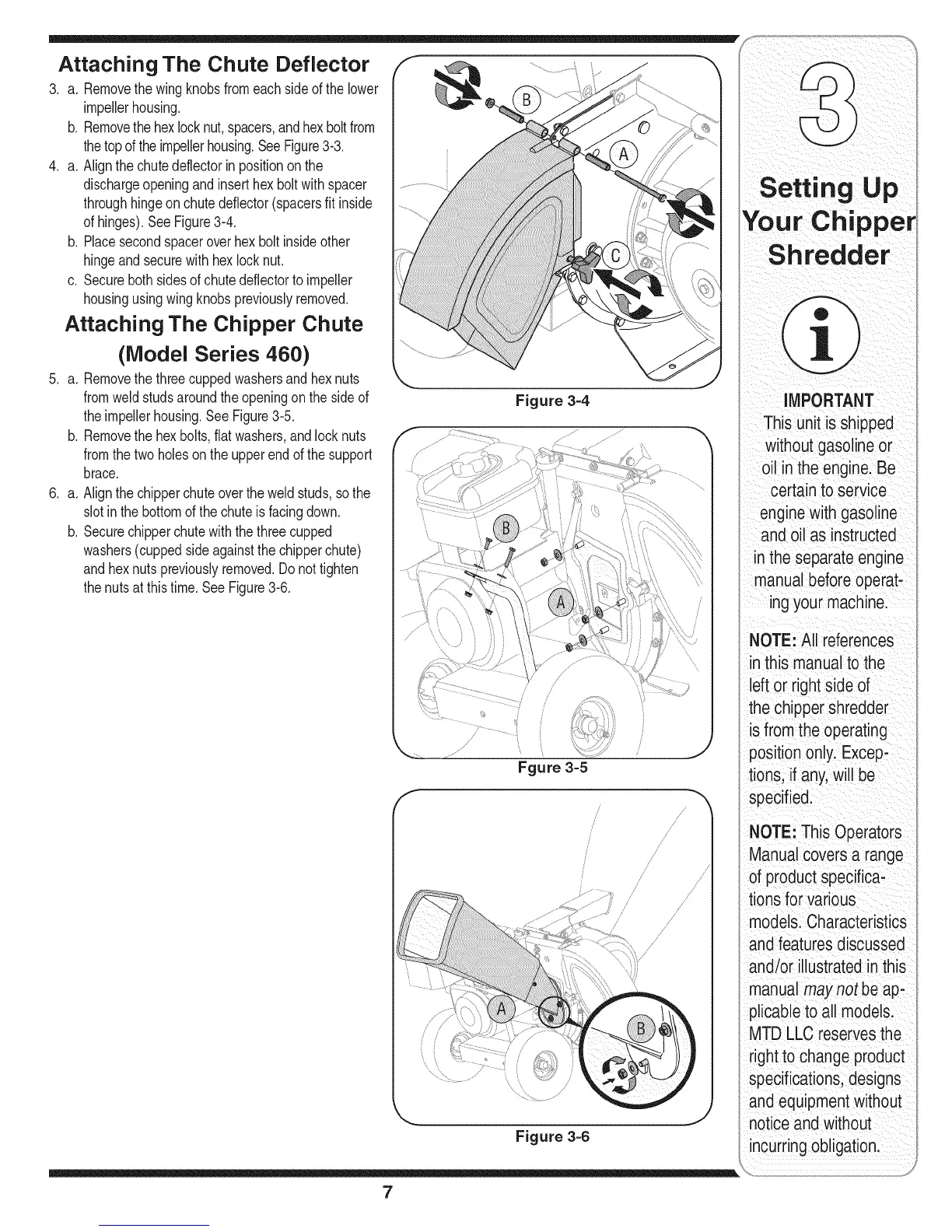

Attaching The Chute Deflector
3. a. Removethewingknobsfromeach sideof the lower
impellerhousing.
b. Removethehexlocknut,spacers,andhex boltfrom
thetopoftheimpellerhousing.SeeFigure3-3.
4. a. Alignthe chutedeflectorinpositionon the
dischargeopeningand inserthexboltwithspacer
throughhingeon chutedeflector(spacersfit inside
of hinges).SeeFigure314.
b. Placesecondspaceroverhex bolt insideother
hingeandsecurewithhex locknut.
c. Securebothsidesof chutedeflectorto impeller
housingusingwingknobspreviouslyremoved.
Attaching The Chipper Chute
(Model Series 460)
5. a. Removethethreecuppedwashersand hexnuts
fromweldstudsaroundtheopeningonthe side of
theimpellerhousing.SeeFigure3-5.
b. Removethehexbolts,flat washers,andlocknuts
fromthetwoholeson theupperendofthesupport
brace.
6. a. Alignthe chipperchuteoverthe weldstuds,sothe
slotinthebottomofthechuteis facingdown.
b. Securechipperchutewiththe threecupped
washers(cuppedsideagainstthe chipperchute)
and hexnutspreviouslyremoved.Do nottighten
thenutsatthistime. SeeFigure316.
Figure 3-4
f
Fgure 3=5
/
/
/
/ /
/
//
/
/
..........1,/
/
/J
/
/
/
//
/
/
Figure 3=6
Your Chipper
Sh redder
IMPORTANT
This unit is shipped
without gasolineor
oil in the engine. Be
certain to service
enginewith gasoline
and oil as instructed
in the separate engine
manual before operat-
ingyour machine.
NOTE: All references
in this manualto the
leftor rightside of
the chipper shredder
is from the operating
positiononly. Excep-
tions, if any, will be
specified.
NOTE: This Operators
Manual covers a range
of productspecifica-
tions for various
models. Characteristics
andfeatures discussed
and/or illustrated inthis
manual may not be ap-
plicableto all models.
MTD LLC reservesthe
rightto change product
specifications,designs
and equipmentwithout
notice andwithout
_ncurringobligation.
7
