Models 500, 501, 510 and 511

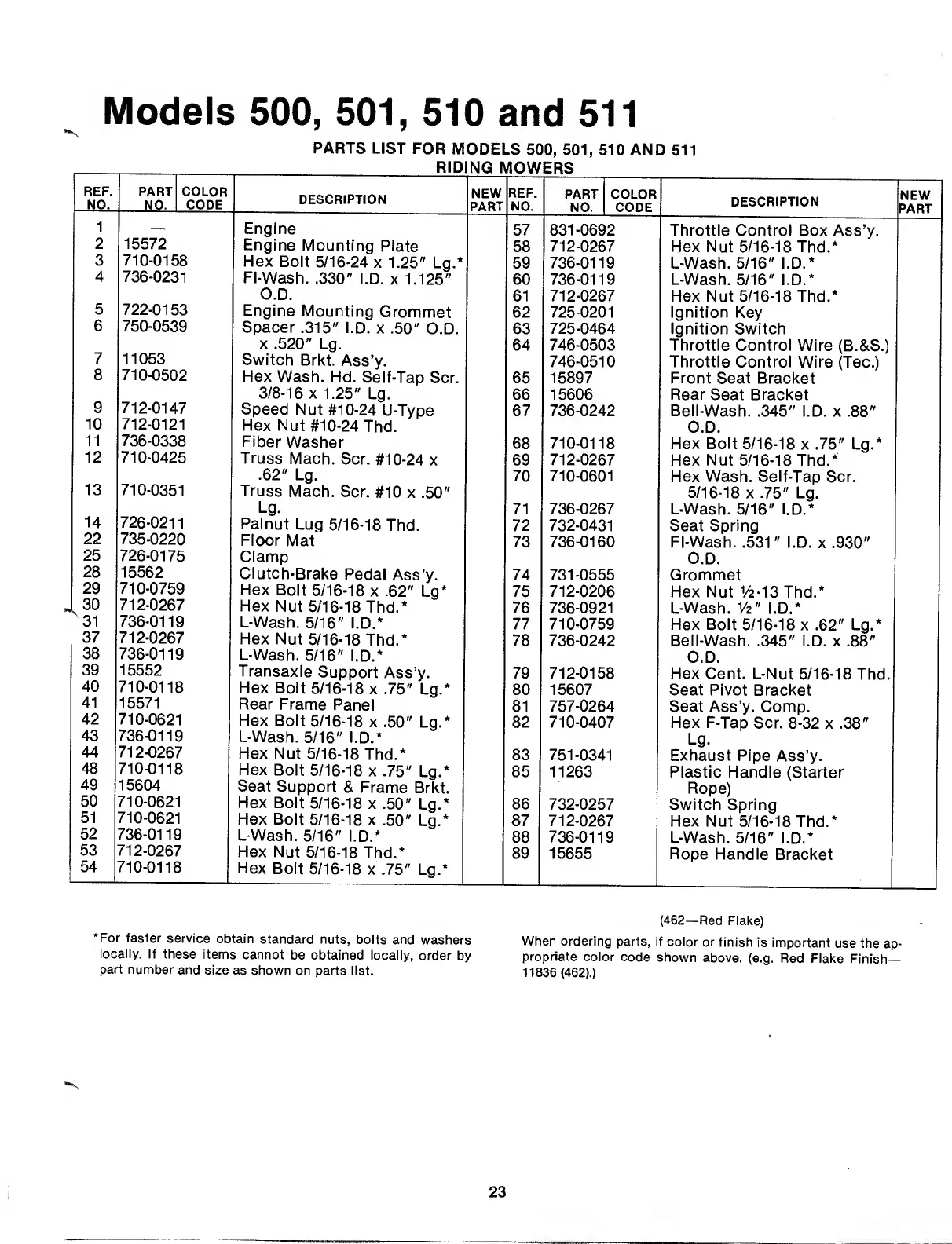

PARTS LIST FOR MODELS 500, 501, 510 AND 511
RID
ING MOWERS
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
1
—
Engine
57
831-0692
Throttle Control Box Ass’y.
mm
2
15572
Engine Mounting Plate
58
712-0267
Hex Nut 5/16-18 Thd.*
3
710-0158
Hex Bolt 5/16-24 x 1.25" Lg.*
59 736-0119 L-Wash. 5/16" I.D.*
4
736-0231
FI-Wash. .330" I.D. x 1.125"
60 736-0119
L-Wash. 5/16" I.D.*
O.D.
61
712-0267
Hex Nut 5/16-18 Thd.*
5
722-0153
Engine Mounting Grommet
62 725-0201 Ignition Key
6
750-0539
Spacer .315" I.D. x .50" O.D.
63
725-0464
Ignition Switch
X .520" Lg.
64 746-0503
Throttle Control Wire (B.&S.)
7
11053
Switch Brkt. Ass’y.
746-0510
Throttle Control Wire (Tec.)
8
710-0502
Hex Wash. Hd. Self-Tap Scr.
65
15897
Front Seat Bracket
3/8-16 X 1.25" Lg.
66 15606
Rear Seat Bracket
9
712-0147
Speed Nut #10-24 U-Type
67 736-0242
Bell-Wash. .345" I.D. x .88"
10
712-0121
Hex Nut #10-24 Thd.
C.D.
11
736-0338
Fiber Washer
68 710-0118 Hex Bolt 5/16-18 x .75" Lg.*
12
710-0425
Truss Mach. Scr. #10-24 x
69
712-0267
Hex Nut 5/16-18 Thd.*
.62" Lg.
70 710-0601
Hex Wash. Self-Tap Scr.
13
710-0351
Truss Mach. Scr. #10 x .50"
5/16-18 X .75" Lg.
Lg.
71 736-0267
L-Wash. 5/16" I.D.*
14
726-0211
Palnut Lug 5/16-18 Thd.
72
732-0431 Seat Spring
22
735-0220
Floor Mat
73 736-0160
FI-Wash. .531" I.D. x .930"
25
726-0175
Clamp
C.D.
28
15562
Clutch-Brake Pedal Ass’y. 74 731-0555
Grommet
29
710-0759
Hex Bolt 5/16-18 x .62" Lg*
75 712-0206 Hex Nut 1/2-13 Thd.*
J^30
712-0267
Hex Nut 5/16-18 Thd.*
76 736-0921
L-Wash. 1/2" I.D.*
31
736-0119
L-Wash. 5/16" I.D.*
77
710-0759
Hex Bolt 5/16-18 X .62" Lg.*
37
712-0267
Hex Nut 5/16-18 Thd.*
78 736-0242
Bell-Wash. .345" I.D. x .88"
38
736-0119
L-Wash. 5/16" I.D.*
C.D.
39
15552
Transaxle Support Ass’y.
79 712-0158
Hex Cent. L-Nut 5/16-18 Thd.
40
710-0118
Hex Bolt 5/16-18 x .75" Lg.*
80 15607
Seat Pivot Bracket
41
15571
Rear Frame Panel
81 757-0264
Seat Ass’y. Comp.
42
710-0621
Hex Bolt 5/16-18 x .50" Lg.*
82
710-0407
Hex F-Tap Scr. 8-32 x .38"
43
736-0119
L-Wash. 5/16" I.D.*
Lg.
44
712-0267
Hex Nut 5/16-18 Thd.*
83
751-0341
Exhaust Pipe Ass’y.
48
710-0118
Hex Bolt 5/16-18 x .75" Lg.*
85 11263
Plastic Handle (Starter
49
15604
Seat Support & Frame Brkt.
Rope)
50
710-0621
Hex Bolt 5/16-18 x .50" Lg.*
86
732-0257
Switch Spring
51
710-0621
Hex Bolt 5/16-18 x .50" Lg.*
87
712-0267
Hex Nut 5/16-18 Thd.*
52
736-0119
L-Wash. 5/16" I.D.*
88
736-0119
L-Wash. 5/16" I.D.*
53
712-0267
Hex Nut 5/16-18 Thd.*
89
15655
Rope Handle Bracket
54
710-0118
Hex Bolt 5/16-18 x .75" Lg.*
*For faster service obtain standard nuts, boits and washers
locaily. If these items cannot be obtained locally, order by
part number and size as shown on parts list.
(462—Red Flake)
When ordering parts, if color or finish is important use the ap¬
propriate color code shown above, (e.g. Red Flake Finish—
11836 (462).)
23
