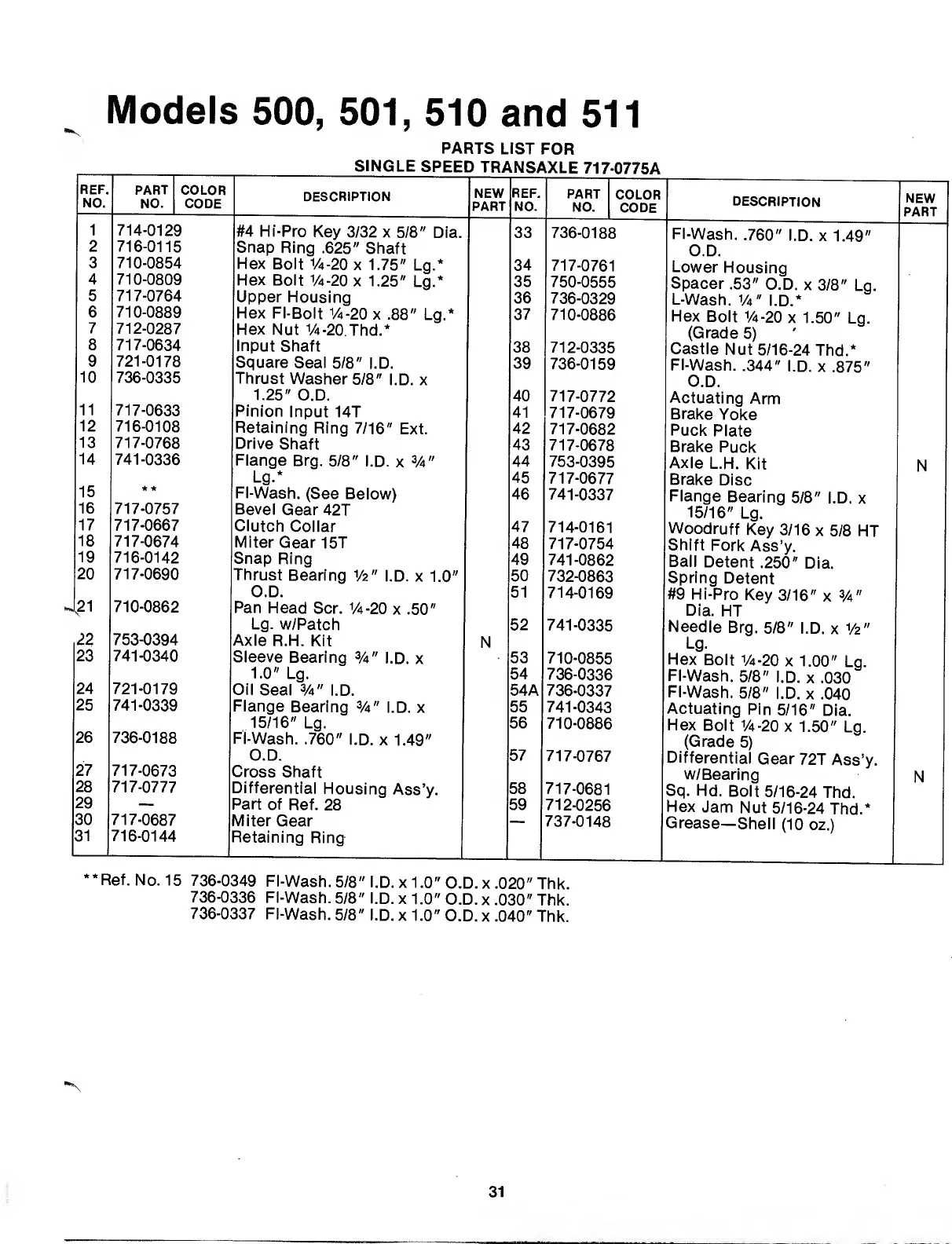

MTD 500 - Page 31

Models 500, 501, 510 and 511
PARTS LIST FOR
SINGLE SPEED TRANSAXLE 717 0775A
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
1
714-0129
#4 Hi-Pro Key 3/32 x 5/8" Dia.
33
736-0188
FI-Wash. .760" I.D. x 1.49"
2
716-0115
Snap Ring .625" Shaft
O.D.
3
710-0854
Hex Bolt 1 / 4-20 X 1.75" Lg.*
34
717-0761
Lower Housing
4
710-0809
Hex Bolt 1 / 4-20 X 1.25" Lg.*
35
750-0555
Spacer .53" O.D. x 3/8" Lg.
5
717-0764
Upper Housing
36
736-0329
L-Wash. 1 / 4 " I.D.*
6
710-0889
Hex Fl-Bolt 1 / 4-20 X .88" Lg.* 37
710-0886
Hex Bolt 1 / 4-20 X 1.50" Lg.
7
712-0287
Hex Nut 1 / 4-20 Thd.*
(Grade 5)
8
717-0634
Input Shaft
38
712-0335
Castle Nut 5/16-24 Thd.*
9
721-0178
Square Seal 5/8" I.D.
39
736-0159
FI-Wash. .344" I.D. x .875"
10
736-0335
Thrust Washer 5/8" I.D. x
O.D.
_
1.25" O.D.
40
717-0772
Actuating Arm
11
717-0633
Pinion Input 14T
41
717-0679
Brake Yoke
12
716-0108
Retaining Ring 7/16" Ext.
42
717-0682
Puck Plate
13
717-0768
Drive Shaft
43
717-0678
Brake Puck
14
741-0336
Flange Brg. 5/8" I.D. x %" 44
753-0395
Axle L.H. Kit
N
Lg.*
45
717-0677
Brake Disc
15
•k *
FI-Wash. (See Below)
46
741-0337
Flange Bearing 5/8" I.D. x
16
717-0757
Bevel Gear 42T
15/16" Lg.
17
717-0667
Clutch Collar
47
714-0161
Woodruff Key 3/16 x 5/8 HT
18
717-0674
Miter Gear 15T
48
717-0754
Shift Fork Ass’y.
19
716-0142
Snap Ring
49
741-0862
Ball Detent .250" Dia.
20
717-0690
Thrust Bearing 1 / 2 " I.D. x 1.0"
50
732-0863
Spring Detent
O.D.
51
714-0169
#9 Hi-Pro Key 3/16" x 3 / 4 "
I2I 710-0862
Pan Head Scr. 1 / 4 - 2 O x .50"
Dia. HT
Lg. w/Patch
52
741-0335
Needle Brg. 5/8" I.D. x 1 / 2 "
22
753-0394
Axle R.H. Kit
N
Lg.
23
741-0340
Sleeve Bearing 3 / 4 " I.D. x 53
710-0855
Hex Bolt 1 / 4-20 X 1.00" Lg.
1.0" Lg. 54
736-0336
FI-Wash. 5/8" I.D. x .030
24
721-0179
Oil Seal 3 / 4 " I.D.
54A
736-0337
FI-Wash. 5/8" I.D. X .040
25
741-0339
Flange Bearing I.D. x 55
741-0343
Actuating Pin 5/16" Dia.
15/16" Lg.
56
710-0886
Hex Bolt 1 / 4-20 X 1.50" Lg.
26
736-0188
FI-Wash. .760" I.D. x 1.49"
(Grade 5)
O.D. 57
717-0767
Differential Gear 72T Ass’y.
27
717-0673
Cross Shaft
w/Bearing
N
28
717-0777
Differential Housing Ass’y.
58
717-0681
Sq. Hd. Bolt 5/16-24 Thd.
29
—
Part of Ref. 28 59
712-0256
Hex Jam Nut 5/16-24 Thd.*
30
717-0687
Miter Gear
—
737-0148
Grease—Shell (10 oz.)
31
716-0144
Retaining Ring
**Ref. No. 15 736-0349 FI-Wash. 5/8" I.D. x 1.0" O.D. x .020" Thk.
736-0336 FI-Wash. 5/8" I.D. x 1.0" O.D. x .030" Thk.
736-0337 FI-Wash. 5/8" I.D. x 1.0" O.D. x .040" Thk.
31
