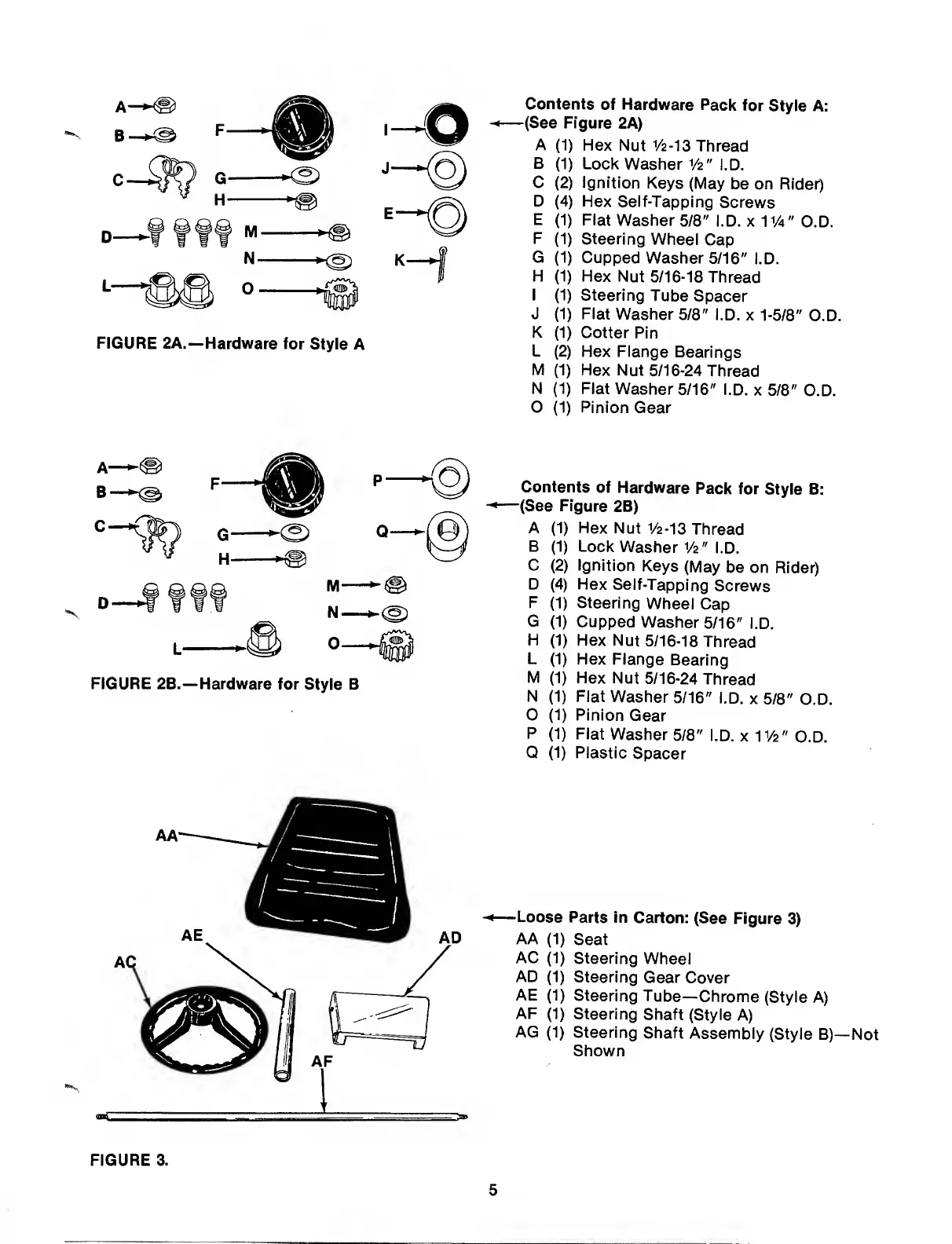

FIGURE 2A.—Hardware for Style A
FIGURE 2B.—Hardware for Style B
Contents of Hardware Pack for Style A:
—(See Figure 2A)
A (1) Hex Nut V 2 -I 3 Thread
B (1) Lock Washer V 2 " I.D.
C (2) Ignition Keys (May be on Rider)
D (4) Hex Self-Tapping Screws
E (1) Flat Washer 5/8" I.D. x 1 1 / 4 " O.D.
F (1) Steering Wheel Cap
G (1) Cupped Washer 5/16" I.D.
H (1) Hex Nut 5/16-18 Thread
I (1) Steering Tube Spacer
J (1) Flat Washer 5/8" I.D. x 1-5/8" O.D.
K (1) Cotter Pin
L (2) Hex Flange Bearings
M (1) Hex Nut 5/16-24 Thread
N (1) Flat Washer 5/16" I.D. x 5/8" O.D.
O (1) Pinion Gear
Contents of Hardware Pack for Style B:
—(See Figure 2B)
A (1) Hex Nut 1 / 2-13 Thread
B (1) Lock Washer 1 / 2 " I.D.
C (2) Ignition Keys (May be on Rider)
D (4) Hex Seif-Tapping Screws
F (1) Steering Wheei Cap
G (1) Cupped Washer 5/16" I.D.
H (1) Hex Nut 5/16-18 Thread
L (1) Hex Flange Bearing
M (1) Hex Nut 5/16-24 Thread
N (1) Flat Washer 5/16" I.D. x 5/8" O.D.
O (1) Pinion Gear
P (1) Flat Washer 5/8" I.D. x IV 2 " O.D.
Q (1) Plastic Spacer
- 4 —Loose Parts In Carton: (See Figure 3)
AA (1) Seat
AC (1) Steering Wheel
AD (1) Steering Gear Cover
AE (1) Steering Tube—Chrome (Style A)
AF (1) Steering Shaft (Style A)
AG (1) Steering Shaft Assembly (Style B)—Not
Shown
FIGURE 3.
