SECTION 5: MAKING ADJUSTMENTS
Seat
Standard Adjustment Seat
1. Flip the seat up as shown in Figure 7.
2. Loosen the two hex screws on the bottom of the seat.
See Figure 7.
3. Slide the seat forward or backward as desired.
4. Retighten the two screws.
5. Put the seat down to the operating position.
Quick Adjustment Seat (if so equipped)
1. Move the seat adjustment lever (located under the
seat) to the left and slide the seat forward or
backward.
2. Once the desired position is reached, release the
lever and the seat should lock into one of the six
adjustment positions.
Knob Adjustment Seat (if so equipped)
1. Flip the seat up as shown in Figure 7.
2. Loosen the two seat adjustment knobs located under
the seat. See Figure 7.
3. Slide the seat forward or rearward, then tighten the
knobs to lock the seat at the desired position.
4. Put the seat down to the operating position.
Steering
• If the tractor turns tighter in one direction than the
other, or if the ball joints are being replaced due to
damage or wear, the steering drag links may need to
be adjusted. Adjust the drag links so that equal
lengths are threaded into the ball joints on both sides.
1. Loosen the jam nut on the drag link at the rear of the
ball joint. See Figure 8.
2. Remove the hex nut and lock washer on top of the
ball joint. See Figure 8.
3. Thread the ball joint toward the jam nut to shorten the
drag link.
4. Thread the ball joint away from the jam nut to
lengthen the drag link.
5. Replace hex nut and lock washer and retighten the
jam nut after proper adjustment is achieved.
NOTE: Threading the ball joints too far on to the drag
links will cause the front tires to "toe-in" too far. Proper
toe-in is between 1/16" and 5/16".
WARNING: Never attempt to make any adjustments while the engine is running, except where specified
in the operator’s manual.Disconnect spark plug wire(s) and ground against the engine before performing
any adjustments, repairs or maintenance.
WARNING: Before operating this machine,
make sure the seat is engaged in the seat stop,
stand behind the machine and pull back on seat
until fully engaged into stop.

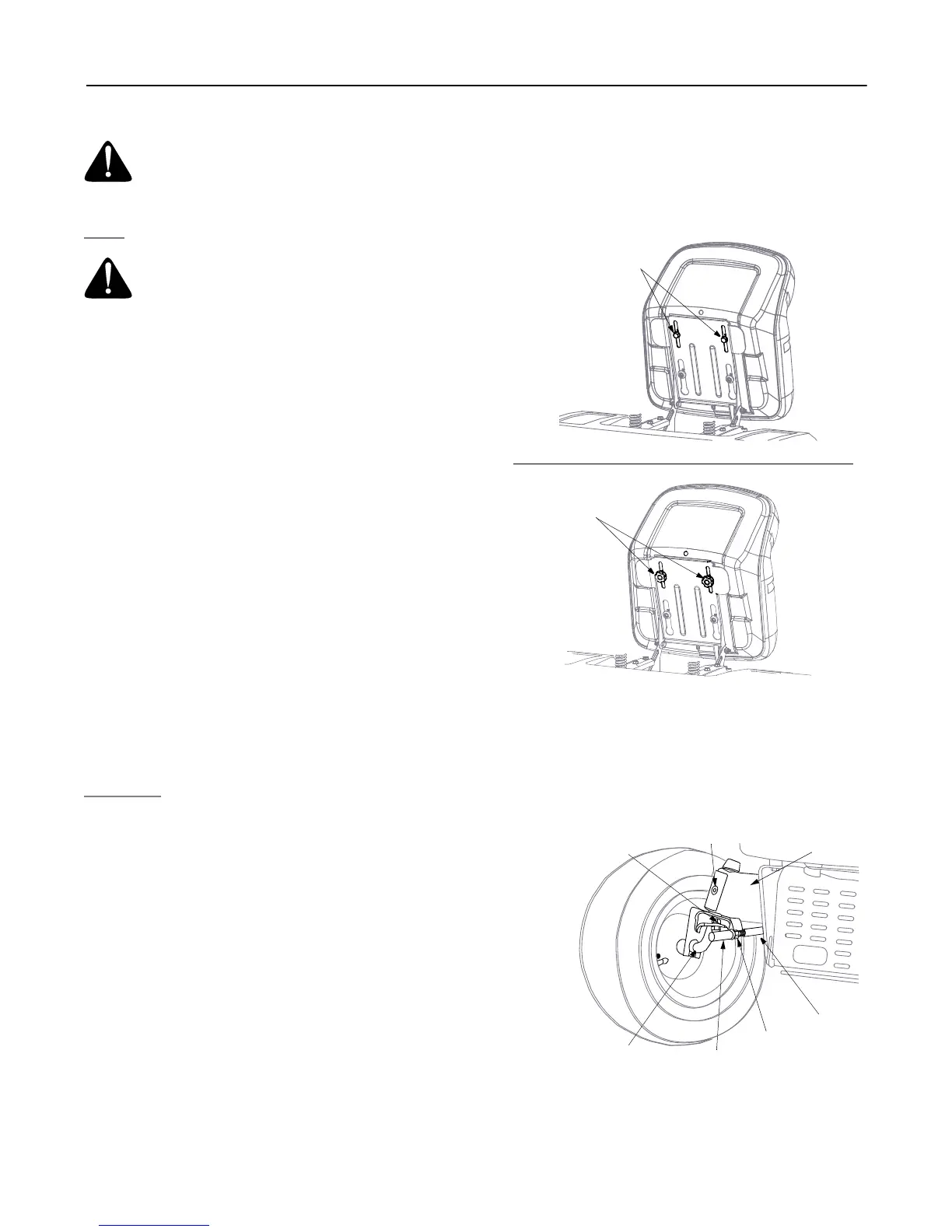

Figure 7
Hex Screws
Seat Knob
Drag Link
Ball Joint
Axle
Pivot
Hex Nut &
Jam Nut
Lock Washer
Grease
Figure 8
Bar
Fitting
To Next Page
