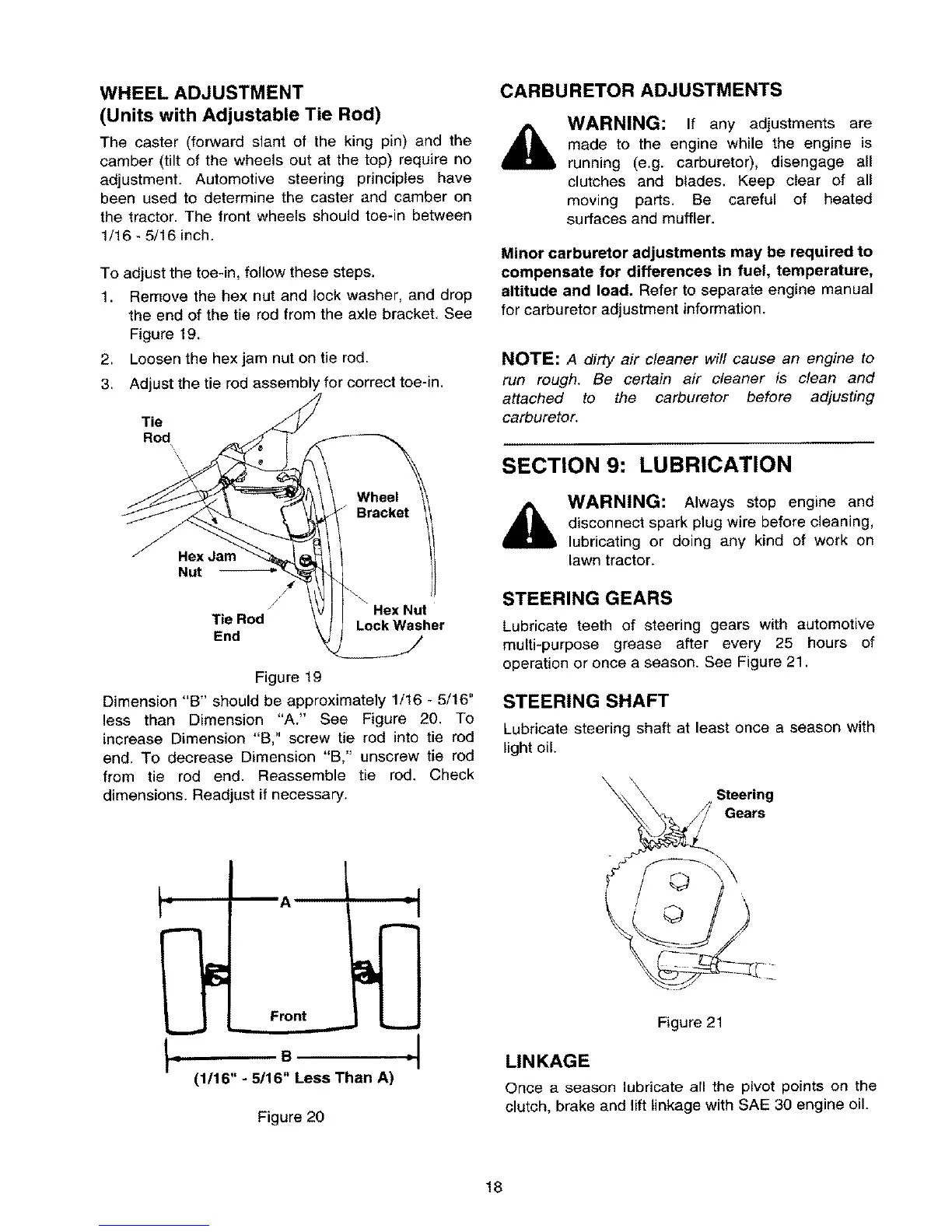

WHEEL ADJUSTMENT
(Units with Adjustable Tie Rod)
CARBURETOR ADJUSTMENTS
The caster (forward slant of the king pin) and the A_.
camber (tilt of the wheels out at the top) require no &
adjustment. Automotive steering principles have
been used to determine the caster and camber on
the tractor. The front wheels should toe-in between
1/16 - 5/16 inch.
To adjust the toe-in, follow these steps.
1. Remove the hex nut and lock washer, and drop
the end of the tie rod from the axle bracket. See
Figure 19.
2. Loosen the hex jam nut on tie rod.
3. Adjust the tie rod assembly for correct toe-in.
Hex Jam
Nut
/
Tie Rod
End
Hex Nut
Lock Washer
Tie
Rod
Figure 19
Dimension "B" should be approximately 1/16 - 5/16"
less than Dimension "A." See Figure 20. To
increase Dimension "B," screw tie rod into tie rod
end. To decrease Dimension "B," unscrew tie rod
from tie rod end. Reassemble tie rod. Check
dimensions. Readjust if necessary.
WARNING: If any adjustments are
made to the engine while the engine is
running (e.g. carburetor), disengage all
clutches and blades. Keep clear of all
moving parts. Be careful of heated
surfaces and muffler.
Minor carburetor adjustments may be required to
compensate for differences in fuel, temperature,
altitude and load. Refer to separate engine manual
for carburetor adjustment information.
NOTE: A dirty air cleaner will cause an engine to
run rough. Be certain air cleaner is clean and
attached to the carburetor before adjusting
carburetor.
SECTION 9: LUBRICATION
WARNING: Always stop engine and
disconnect spark plug wire before cleaning,
lubricating or doing any kind of work on
lawn tractor.
STEERING GEARS
Lubricate teeth of steering gears with automotive
multi-purpose grease after every 25 hours of
operation or once a season. See Figure 21.
STEERING SHAFT
Lubricate steering shaft at least once a season with
light oil.
_: Steering
Gears
_n
__ Front _ %
I. ° .I
(1/16" - 5116" Less Than A)
Figure 20
\
Figure 21
LINKAGE
Once a season lubricate all the pivot points on the
clutch, brake and lift linkage with SAE 30 engine oil.
18
