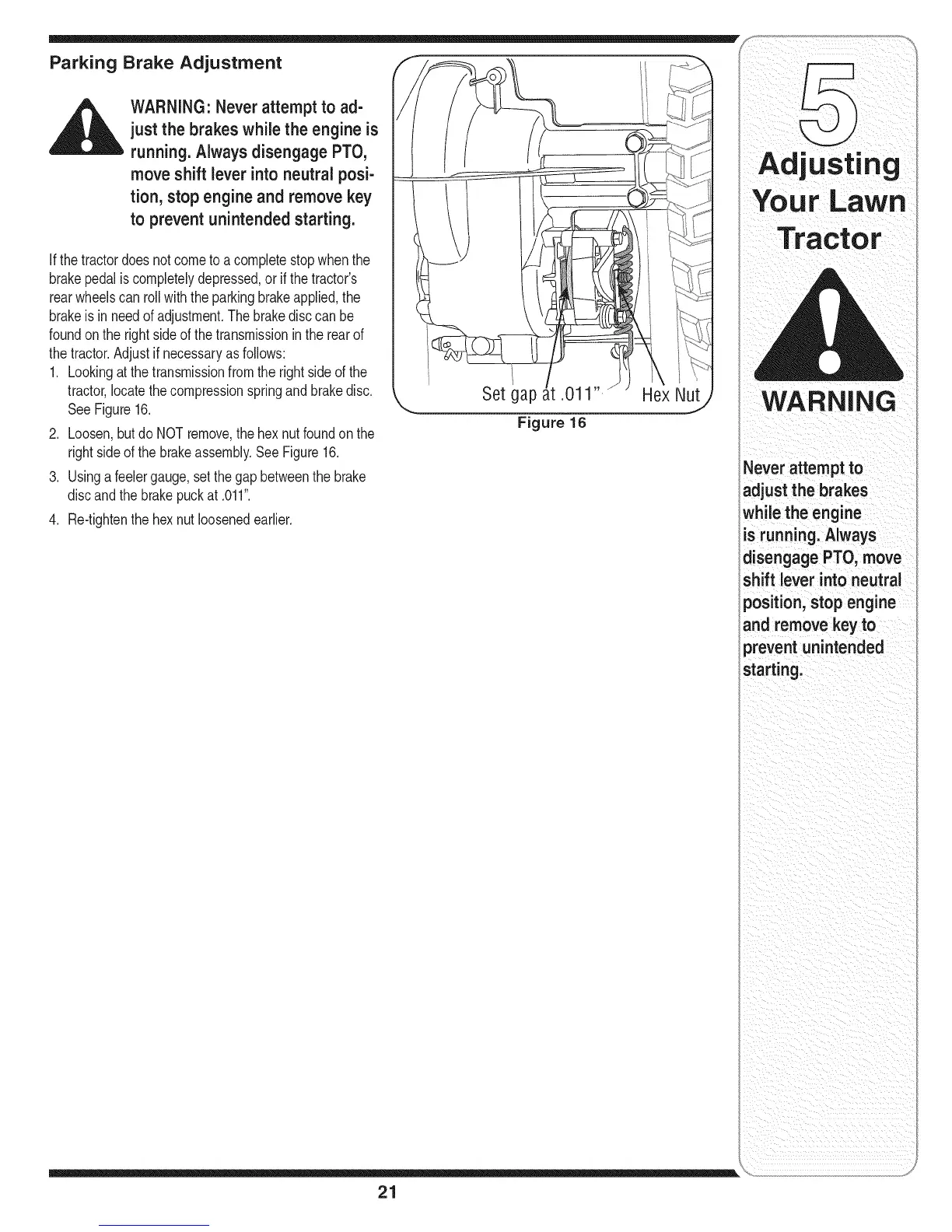

MTD 769-01645A - Page 21

_ ARNING: Never attempt to ad-
just the brakes while the engine is
running. Always disengage PTO,
move shift lever into neutral posi-
tion, stop engine and remove key
to prevent unintended starting.
Ifthetractordoesnot cometo a completestopwhenthe
brakepedaliscompletelydepressed,or ifthe tractor's
rearwheelscanrollwiththeparkingbrakeapplied,the
brakeisinneedofadjustment,Thebrakedisccan be
foundon the rightsideof thetransmissionintherearof
thetractor.Adjustifnecessaryasfollows:
1. Lookingat thetransmissionfromthe right sideof the
tractor,locatethecompressionspringandbrakedisc.
See Figure16,
2. Loosen,butdo NOTremove,the hex nutfoundon the
rightsideof the brakeassembly,SeeFigure16,
3. Usingafeelergauge,setthegapbetweenthe brake
discandthebrakepuckat,011",
4. Re4ightenthehexnutloosenedearlier.
Set gap
Figure 16
Hex Nut
21
WARNING
Never attempt to
adjust the brakes
whilethe engine
is running. Always
disengagePTO, move
shift lever into neutral
position,stop engine
and remove key to
prevent unintended
starting.
