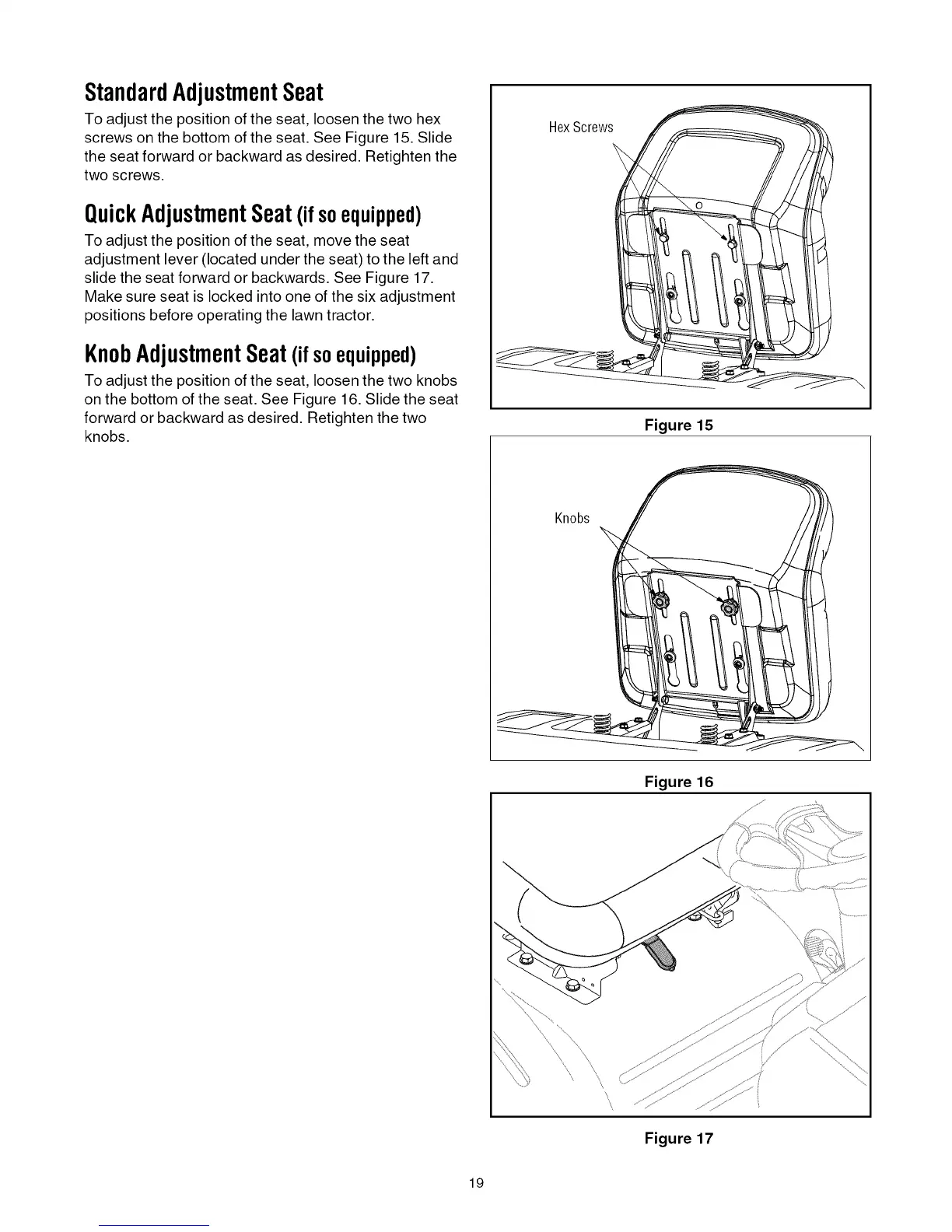

MTD 790 - Standard Adjustment Seat; Quick Adjustment Seat; Knob Adjustment Seat

StandardAdjustmentSeat
To adjust the position of the seat, loosen the two hex
screws on the bottom of the seat. See Figure 15. Slide
the seat forward or backward as desired. Retighten the
two screws.
QuickAdjustmentSeat(ifsoequipped)
To adjust the position of the seat, move the seat
adjustment lever (located under the seat) to the left and
slide the seat forward or backwards. See Figure 17.
Make sure seat is locked into one of the six adjustment
positions before operating the lawn tractor.
KnobAdjustmentSeat(if soequipped)
To adjust the position of the seat, loosen the two knobs
on the bottom of the seat. See Figure 16. Slide the seat
forward or backward as desired. Retighten the two
knobs.
HexScrews
Figure 15
Knobs
Figure 16
\
\
Figure 17
19
