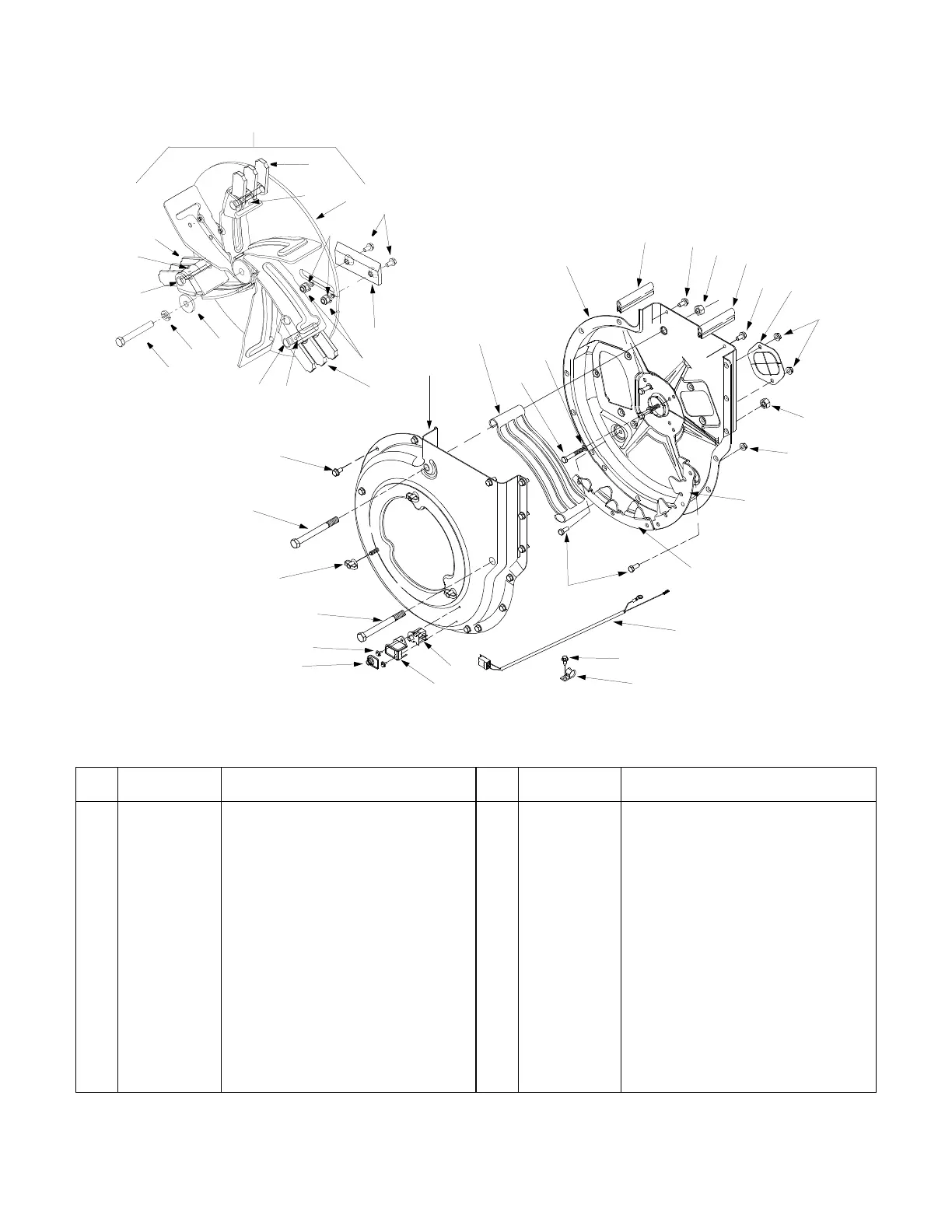

Model 203B
1
2
2
3
4
2
5
3
3
5
6
7
8
9
10
11
12
13
13
14
14
14
15
15
16
17
17
18
19
21
22
23
24
25
26
27
28
29
30
31
30
32
33
34
35
REF.
NO.
PART
NO.
DESCRIPTION
1 681-0108 Impeller Ass’y Complete
2 719-0329 Flail Blade
3 715-0166 Spiral Pin
4 681-0107 Impeller Assembly
5 711-0833B Clevis Pin
6 736-0119 Lock Washer 5/16
7 710-1054 Cap Screw 5/16-24 x 1.0
8 781-0490 Chipper Blade
9 712-0411 Hex Lock Nut 5/16-24
10 736-0247 Flat Washer .406 x 1/1/4
11 736-0217 Lock Washer 3/8
12 710-1273 Hex Cap Screw 3/8-24 x 2.75
13 723-0438 Rubber Seal
14 710-0604 Hex Washer Screw 5/16-18
15 712-0384 Hex Lock Nut 1/2-13
16 781-0627 Chipper Blade Cover
17 712-3004A Hex Flange Lock Nut 5/16-18
18 681-0098 Housing Ass’y Inner Flail
19 781-0599 Upper Shredder Blade
21 736-0119 Lock Washer 5/16
22 710-0772 Hex Cap Screw 5/16-18 x 2
23 781-0653 Flail Housing Blade
24 710-3008 Hex Cap Screw 5/16-18 x .75
25 719-0326 Discharge Screen
26 681-0060 Housing Ass’y Outer Flail
27 629-0241A Wire Harness
28 710-0896 Hex Washer Screw 1/4-14
29 726-0272 Clamp
30 710-0382 Hex Cap Screw 1/2-13 x 5.0
31 712-0421 Knob 5/16-18
32 725-3166 Switch
33 731-1613 Safety Switch Mounting Cover
34 710-1268 Hex Washer Screw
35 725-1700 Switch Cover
REF.
NO.
PART
NO.
DESCRIPTION
