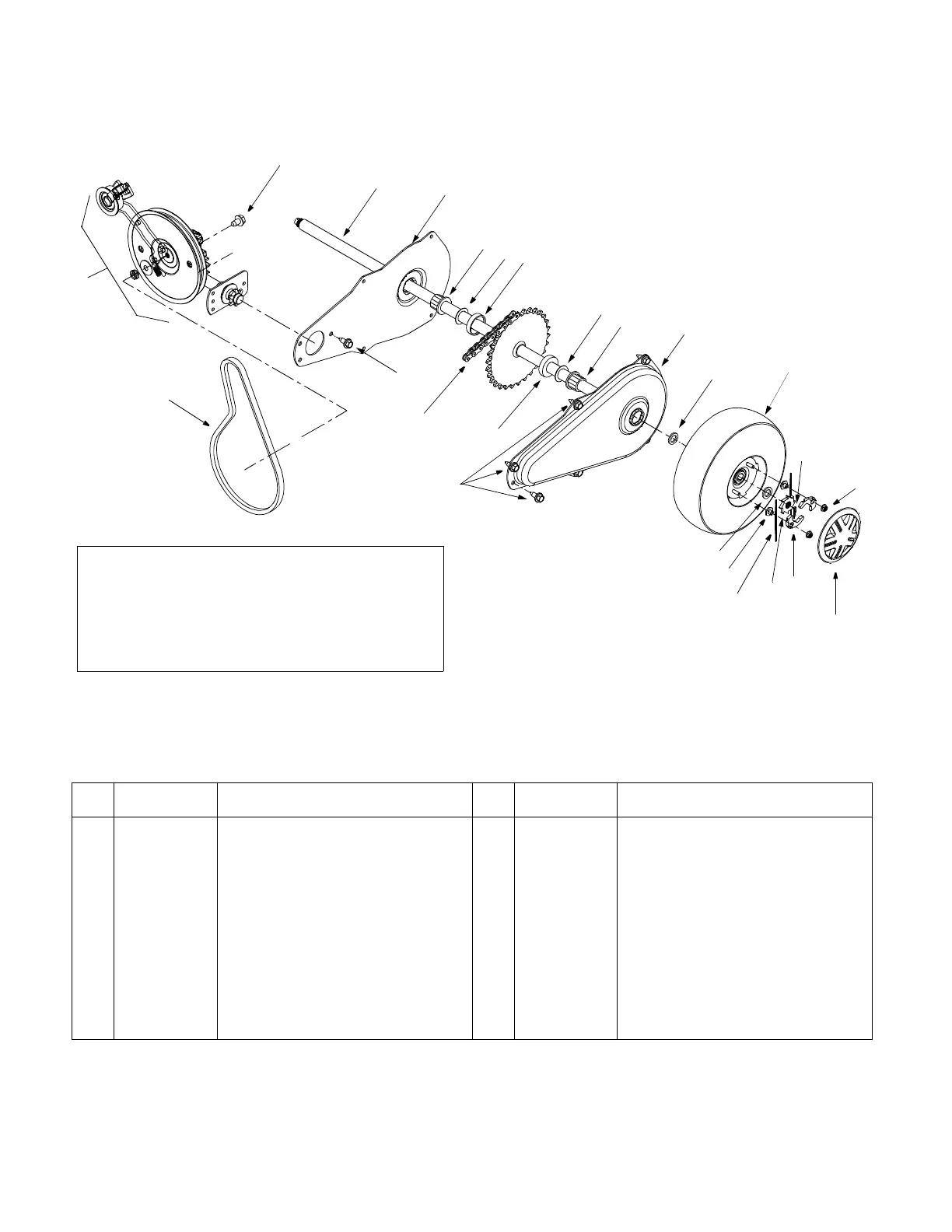

MTD Yard-Man 203B - Page 18

18
Model 203B
8
1
5
6
4
7
5
6
4
2
11
9
10
8
3
17
13
17
14
12
15
18
16
19
20
IMPORTANT: For a proper working machine, use
Factory Approved Parts.
V-Belts are specially designed to engage and
disengage safely. A substitute (non OEM) V-belt can
be dangerous by not disengaging completely.
REF.
NO.
PART
NO.
DESCRIPTION
1 781-0677 Chain Case LH
2 781-0676 Chain Case RH
3 754-0457 V-Belt
4 748-0313 Spacer
5 741-0413 Hex Flange Bearing
6 736-0336 Flat Washer
7 713-0422 Chain
8 710-0896 Hex Washer Screw 1/4-14
9 710-0603 Hex Washer Screw 5/16
10 618-0256 Transmission Asm
11 611-0063 Axle Asm
12 10622B Plastic Spring Ratchet
13 634-0136 Wheel Complete 10 x 4 x 4
634-0129 Rim Asm Complete
734-0210 Pneumatic Tire 10.0 x 4.0
734-0255 Valve
741-0487A Flange Bearing .632 ID
14 712-0456 Hex Nut 1/4-20
15 712-3027 Hex Flanged Lock Nut 1/4-20
16 714-0104 Cotter Pin
17 736-0366 Flat Washer 5/8 ID x 1.0 OD
18 748-0188B Pawl LH .345 ID
748-0381 Pawl RH .345 ID
19 748-0405 Wheel Ratchet 1.62 OD x .5 serr
20 731-1825 Hubcap
